20W Infrared Femtosecond Laser Spinel 1030-20E2 (20W红外飞秒激光器 Spinel 1030-20E2)
The Spinel 1030-20E2 is a 20W infrared femtosecond laser developed by BWT (Kai Pu Lin), a national high-tech enterprise specializing in femtosecond, picosecond and nanosecond lasers. Operating at a center wavelength of 1030±2nm with a pulse width of less than 550fs, it delivers a maximum single pulse energy of 200μJ@100kHz and near-diffraction-limited beam quality (TEM00, M²<1.3). Featuring low cost, maintenance-free operation, narrow pulse width, excellent pulse quality, high stability, intelligent real-time monitoring and a simple control interface, this ultrafast laser is ideal for high-precision industrial micro-machining applications.
Save to Favorites
Overview

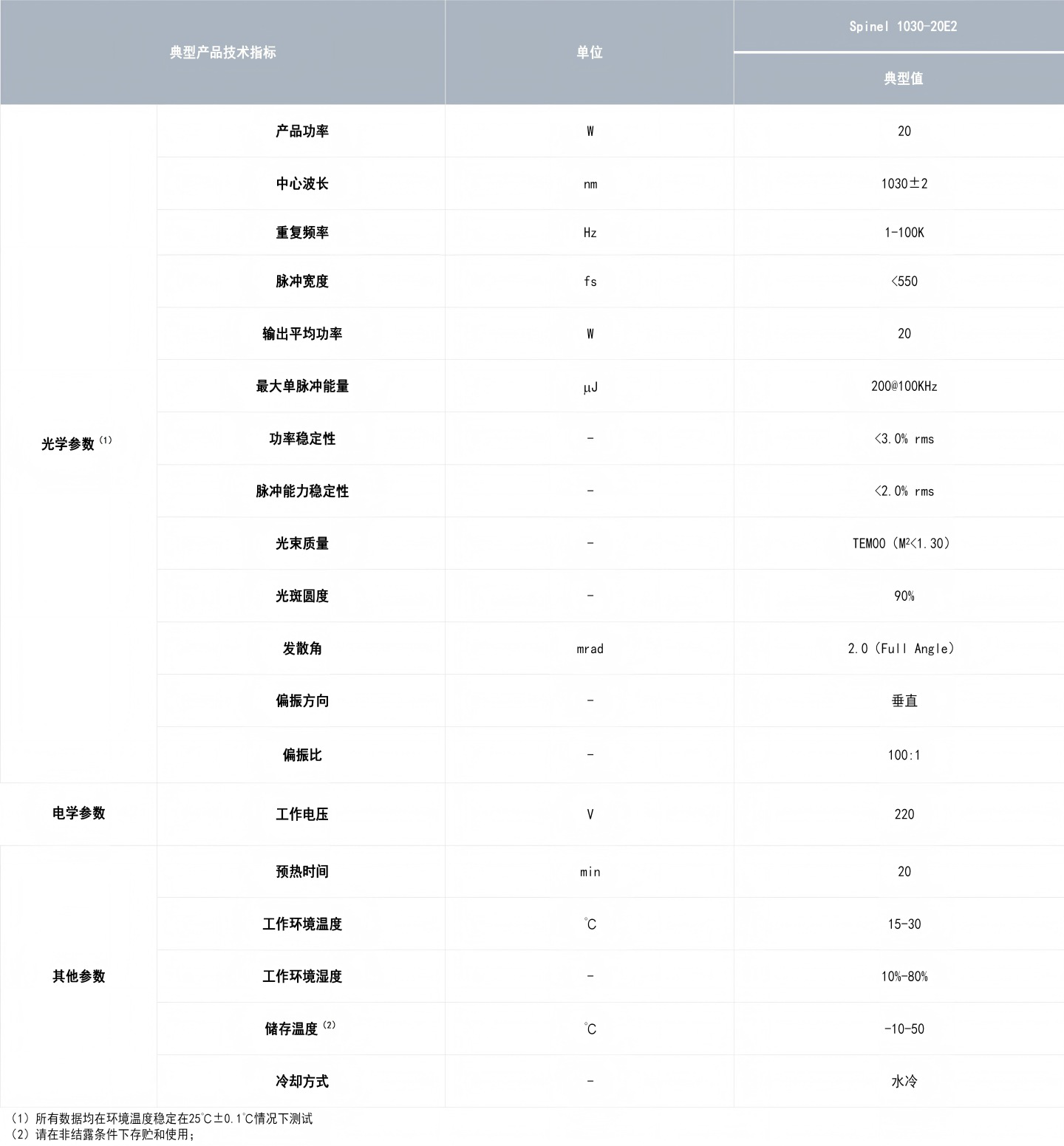

Specifications
| Parameter | Value |
|---|---|
| Product Power | 20W |
| Center Wavelength | 1030±2nm |
| Repetition Frequency | 1-100KHz |
| Pulse Width | <550fs |
| Output Average Power | 20W |
| Maximum Single Pulse Energy | 200μJ@100KHz |
| Power stability | <3.0% rms |
| Pulse Energy Stability | <2.0% rms |
| Beam Quality | TEM₀₀ (M²<1.30) |
| Beam Roundness | 90% |
| Divergence Angle | 2.0mrad (Full Angle) |
| Polarization Direction | 垂直 (Vertical) |
| Polarization Ratio | 100:1 |
| Operating Voltage | 220VAC |
| Warm-up Time | 20min |
| Operating Environment Temperature | 15-30°C |
| Operating Environment Humidity | 10%-80% |
| Storage Temperature | -10-50°C |
| Cooling Method | 水冷 (Water Cooling) |

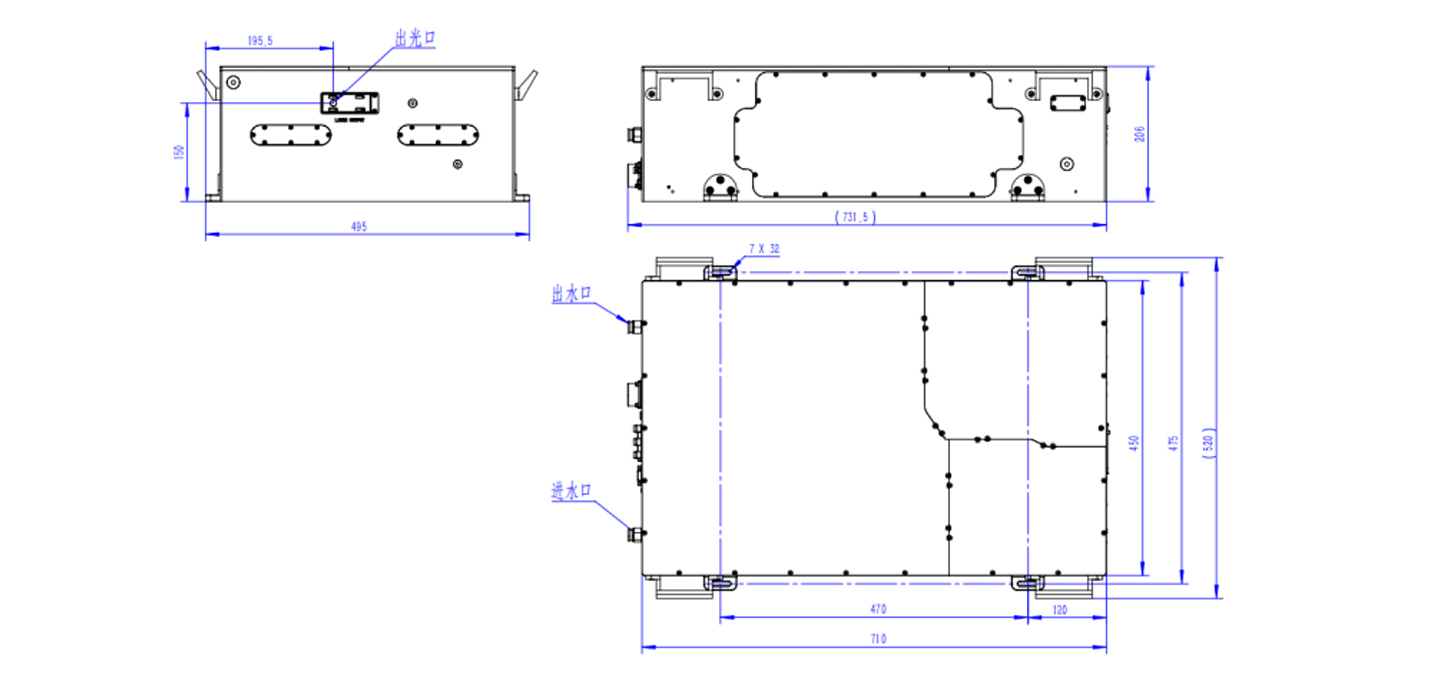

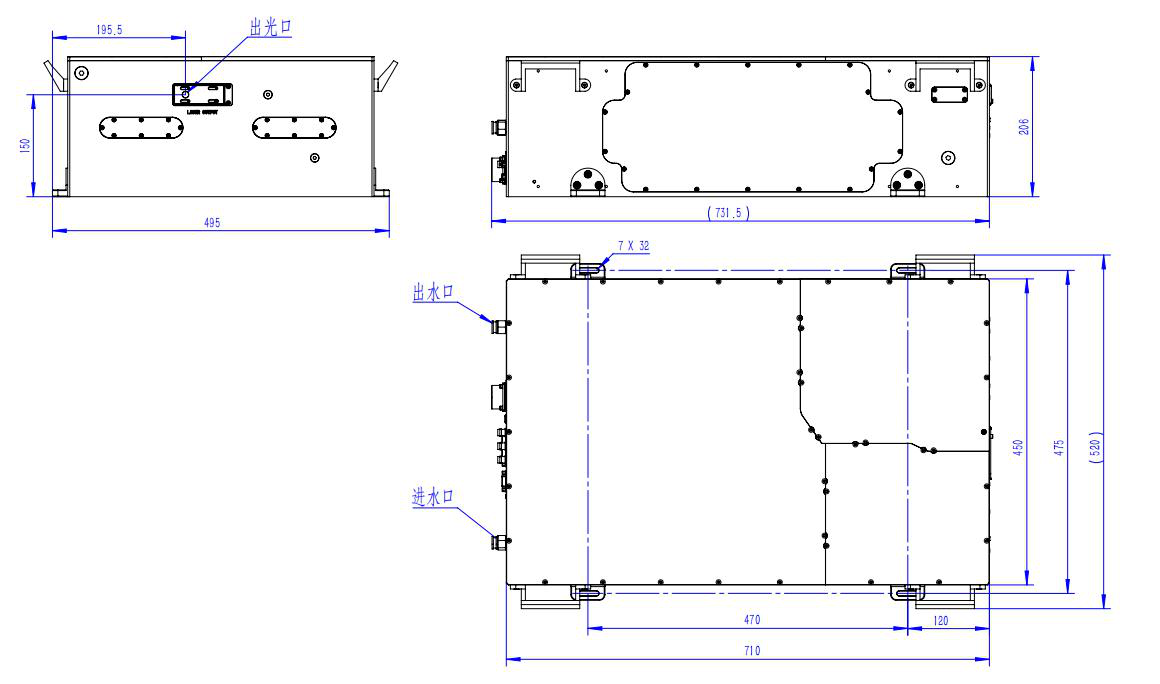

| Dimensions | L731.5×W495×H206mm |
