High-performance silicon wafers

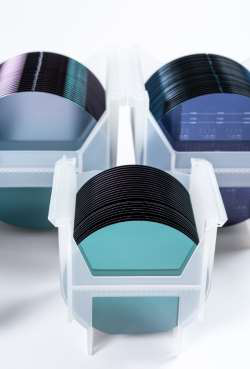

Okmetic specializes in manufacturing high-performance silicon wafers tailored for MEMS, RF, and power devices, offering advanced solutions for various industries.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wafer Size | 150-200mm |
| Resistivity | <0.001 Ohm-cm to >10 kOhm-cm |
| Crystal Material | MCZ, A-MCZ |
| Device Layer Thickness | 1.0μm to >200μm |
| Buried Oxide Layer Thickness | 0.3μm to 4μm |
| Handle Wafer Thickness | 300μm to 950μm |
| Wafer Type | SOI, C-SOI, E-SOI, Patterned, DSP, TSV |
| High Resistivity Wafer | Up to >10 kOhm-cm |
| Low Resistivity Wafer | <0.001 Ohm-cm |
| Wafer Customization Options | Different dopants |
| Wafer Customization Options | orientations |
| Wafer Customization Options | and resistivities |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
High-performance silicon wafers
Semiconductor Manufacturing Equipment
Ybsemi-Solution
Wafer Size: 150-200mm Resistivity Range: <0.001Ωcm to >10kΩcm Device Layer Thickness: 1μm to >200μm
Okmetic specializes in advanced silicon wafers tailored for MEMS, RF, and power devices, offering high resistivity and customizable solutions.
-
