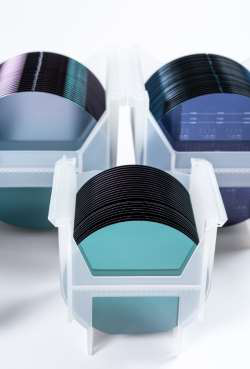

High-performance silicon wafers
Okmetic specializes in advanced silicon wafers for MEMS, RF, and power devices, offering tailored solutions with high resistivity and customizable parameters.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wafer Size | 150-200mm |
| Resistivity Range | <0.001Ω·cm to >10kΩ·cm |
| Device Layer Thickness | 1μm to >200μm |
| Buried Oxide Layer Thickness | 0.3μm to 4μm |
| Handle Wafer Thickness | 300μm to 950μm |
| Crystal Material | MCz, A-MCz |
| Wafer Type | SOI, C-SOI, E-SOI, Patterned, DSP, SSP, TSV |
| Customization Options | Dopants |
| Customization Options | orientations |
| Customization Options | resistivities |
Applications
Key Features
Datasheet
