mainSENSOR Magnetic Displacement Sensor
Displacement Gages

mainSENSOR Magnetic Displacement Sensor

Supplier
Micro-epsilon
Part Number
mainSENSOR Magnetic Displacement Sensor
Category
Displacement Gages
Origin
China

The mainSENSOR series is an innovative measurement technology developed by Micro-Epsilon, combining the advantages of inductive sensors and magnetic sensors. It offers high sensitivity, stability, and flexibility for various industrial applications.

Specification Snapshot
Frequency Response (-3dB)
3000Hz
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The mainSENSOR series is an innovative measurement technology developed by Micro-Epsilon, combining the advantages of inductive sensors and magnetic sensors. It offers high sensitivity, stability, and flexibility for various industrial applications.

Specifications

ParameterValue
Measuring Range20mm-55mm
Resolution0.05%FSO
Frequency Response (-3dB)3000Hz
Temperature Stability≤250ppmFSO/K
Supply Voltage11.5...30VDCVDC
Analog Output2±0.3...9.6±0.4V
ConnectionM8x1, M12x1 connectors
InstallationThreaded M18x1, M30x1.5
Storage Temperature-20...+80°C
Operating Temperature-20...+80°C
Pressure Resistance100bar
Shock Resistance40g/6ms, 1000 times; 100g/6ms, 3 times
Vibration Resistance10...58Hz±1.5mm/58...500Hz±20g
Weight40g-110g

Applications

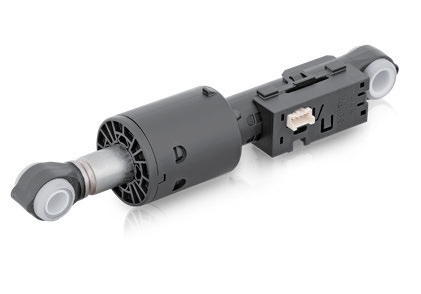

1. Non-contact linear displacement measurement 2. Medical technology for foreign object detection 3. Food industry for valve position monitoring 4. Ship engine oil temperature monitoring 5. Washing machine imbalance and drum position detection

Key Features

1. High sensitivity and stability 2. Non-contact measurement 3. Robust and durable design 4. High dynamic performance 5. Flexible installation options

Datasheet

Product Datasheet
PDF
Download

Supplier Information

Mi
Micro-epsilon
View Supplier →
As a leading manufacturer of precision sensor technology, we are shaping the future. Our systems are used whenever accuracy and performance are crucial to success. In machine building and automation as well as in satellite technology and in the production of next-generation batteries and computer chips. As a globally active group of companies, we are making a decisive contribution to the world of tomorrow - and have been doing so for more than 56 years. What sounds like the future is already at the heart of what we do today. Hundreds of satellites orbit the earth at low altitudes and provide fast internet connections around the world. Our tilting mirror systems enable secure laser communication. This is possible at an altitude of over 500 km, at speeds of over 25,000 km/h and distances of up to 5000 km. These sensor-actuator systems are another milestone in our company's history and demonstrate our ability to turn top performance into series products. With pioneering technologies such as these, we are consolidating our leading position in sensor technology. We strive for greater precision in our products and thus promote innovation. Our displacement sensors achieve resolutions down to the sub-nanometer range, which is less than a millionth of a millimeter. These are used, for example, in semiconductor lithography machines in ultra-high vacuum. In order to implement such high performance in series products, we rely on the competence network within our group of companies. Consulting, product development, application, electronics, optics, image processing, micromechatronics, simulation, software, system integration, production and quality - all from a single source.
