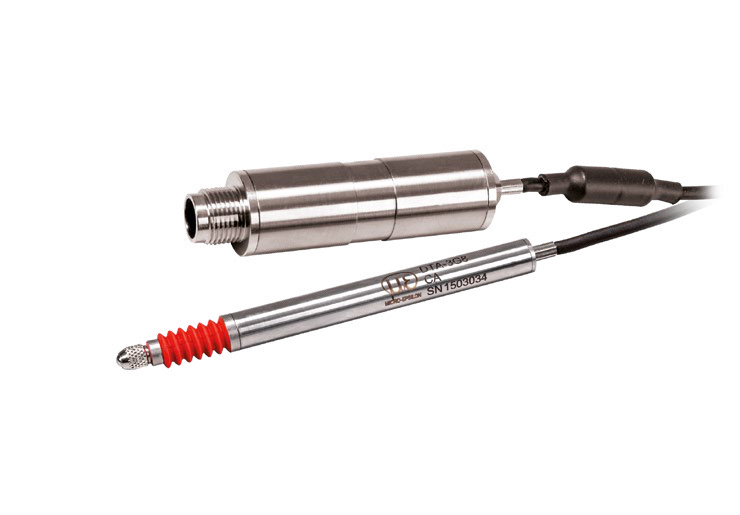

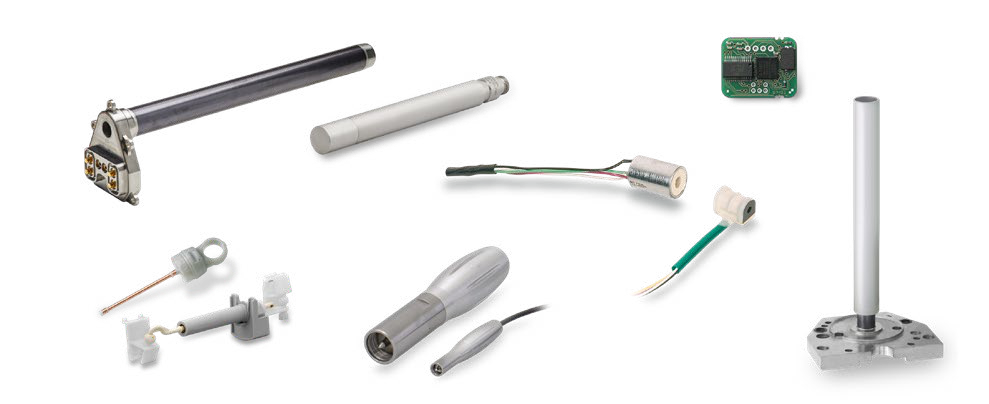

induSENSOR

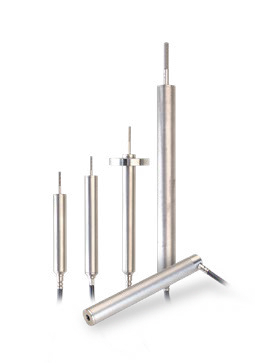

induSENSOR series offers high-precision inductive displacement sensors and controllers for various industrial applications, ensuring reliable measurements under harsh conditions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measuring Range | ±1mm to ±630mm |
| Resolution | 13bits (0.012%FSO) at 50Hz, 12bits (0.024%FSO) at 300Hz |
| Linearity | ≤±0.02%FSO |
| Repeatability | ≤0.15μm |
| Temperature Stability | ≤100ppmFSO/K |
| Supply Voltage | 14...30VDC |
| Max Current Consumption | 40mA |
| Digital Interface | RS485/PROFINET/EtherNet/IP/EtherCAT |
| Analog Output | (0)2...10VDC/0.5...4.5V/0...5V (Ra1kOhm) or (4)...20mA (load500Ohm) |
| Connection | 5-pin connector M12 |
| Mounting | Circumferential clamping |
| Storage Temperature Range | -40...+80°C |
| Operating Temperature Range | -40...+85°C |
| Pressure Resistance | Atmospheric pressure |
| Shock | 40g/6ms in 3 axes, 1000 shocks each |
| Vibration | ±1.5mm/10...58Hz in 2 axes, 10 cycles each ±20g/57...500Hz in 3 axes, 10 cycles each |
| Protection Class | IP67 |
| Material | Stainless steel housing |
| Material | FPM bellows |
| Material | PUR cable sheath |
| Weight | Sensor: approx. 70g, Controller: approx. 50g |
| Typical Spring Forces | SMR: 1.3N, MMR: 1.55N, EMR: 2.0N |
| Service Life | 5 million cycles |
