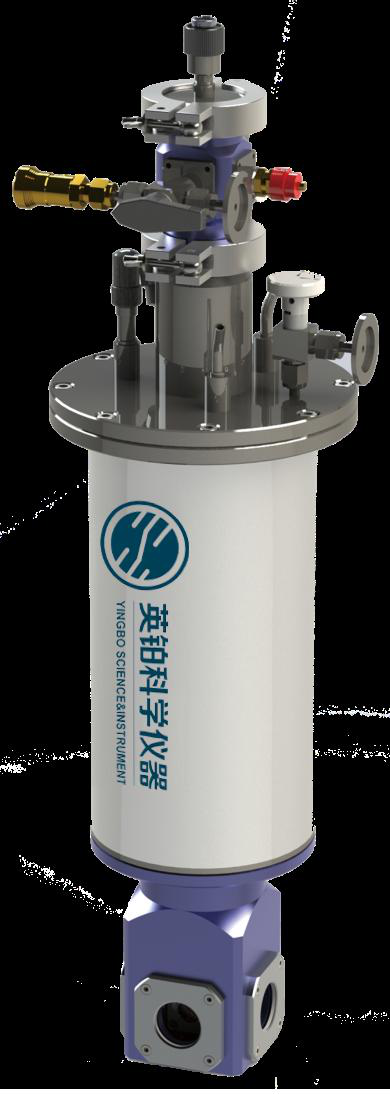

LNC-SG Series Liquid Nitrogen Constant Temperature Device
The LNC-SG series liquid nitrogen constant temperature device is designed for precise temperature control in scientific experiments, offering stable performance and high vacuum levels.
Save to Favorites
Overview

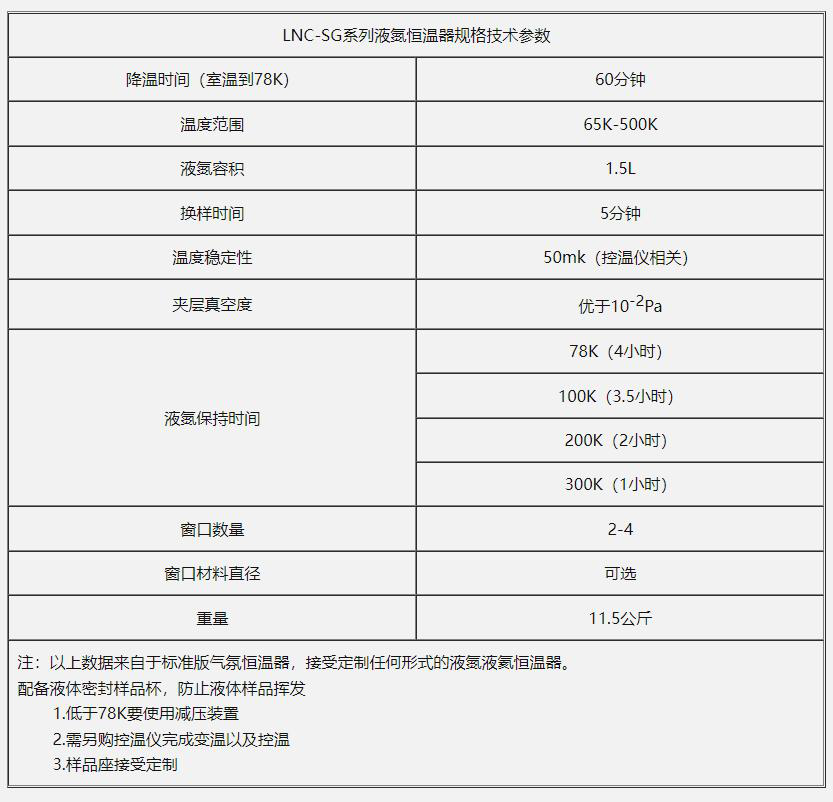

Specifications
| Parameter | Value |
|---|---|
| Cooling Time | 60分钟 |
| Temperature Range | 65K-500K |
| Liquid Nitrogen Capacity | 1.5L |
| Sample Exchange Time | 5分钟 |
| Temperature Stability | 50mk (控温仪Related Categories) |
| Solid Layer Vacuum Degree | 优于10^-2Pa |
| Liquid Nitrogen Retention Time 78K | 4小时 |
| Liquid Nitrogen Retention Time 100K | 3.5小时 |
| Liquid Nitrogen Retention Time 200K | 2小时 |
| Liquid Nitrogen Retention Time 300K | 1小时 |
| Number of Windows | 2-4 |
| Window Material Diameter | 可选 |
| Weight | 11.5公斤 |
