Chixiao - Transient Thermal Tester CX-30A10V4P

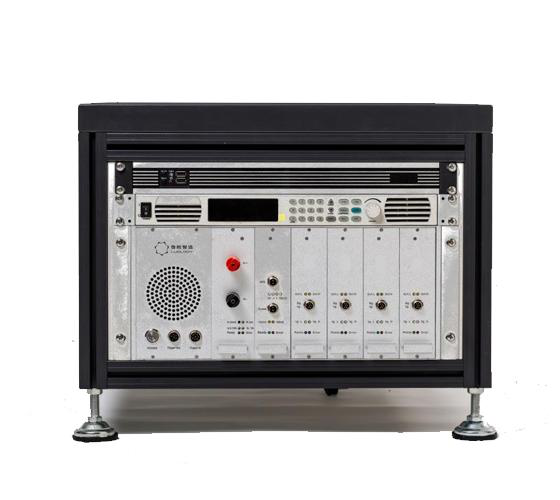

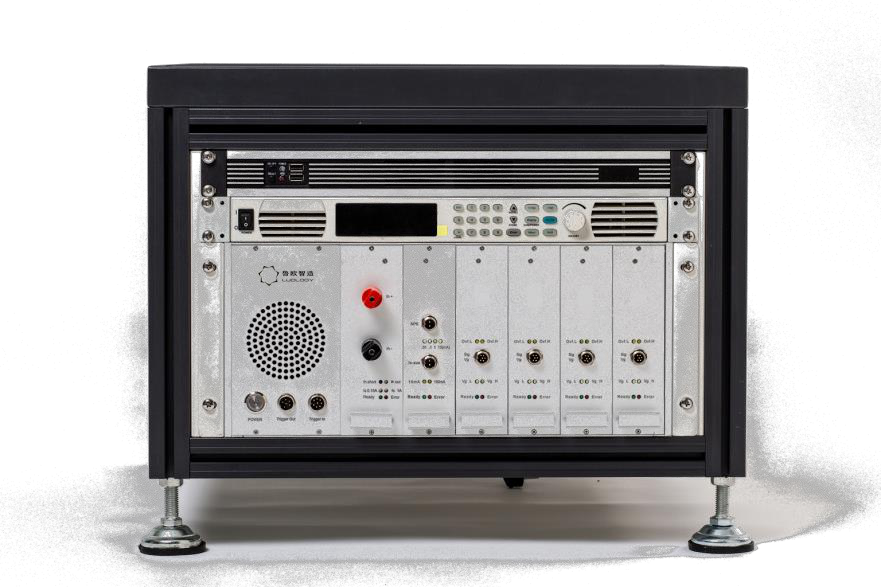

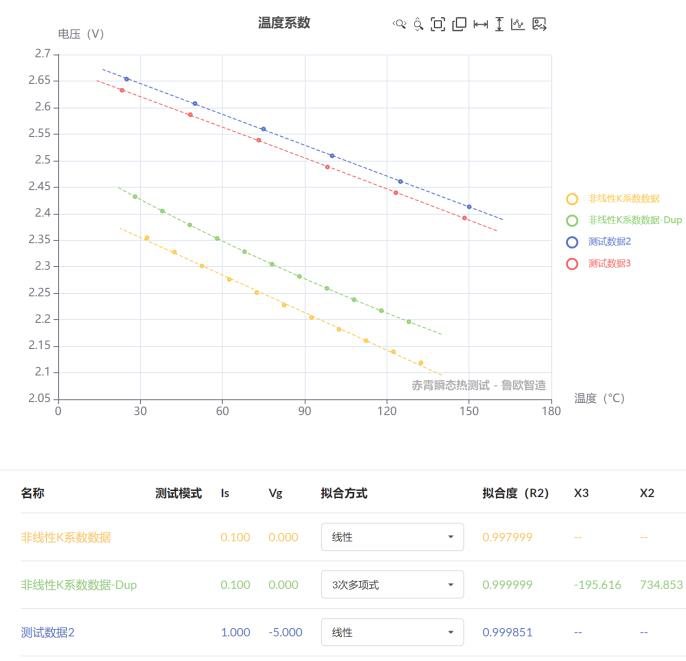

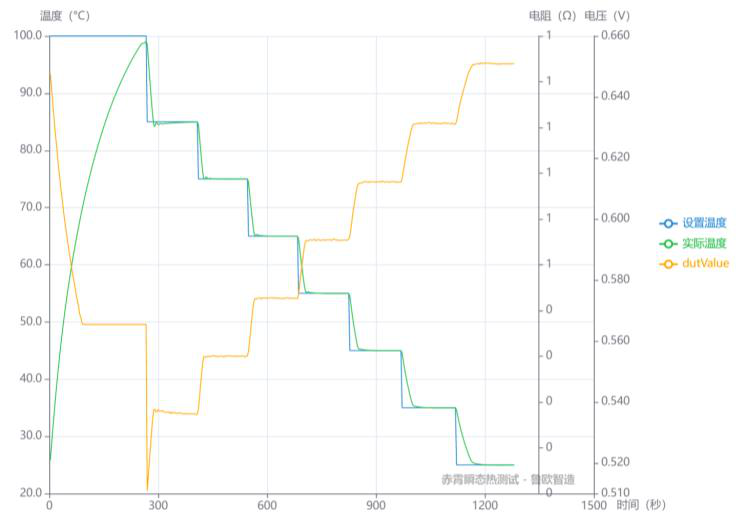

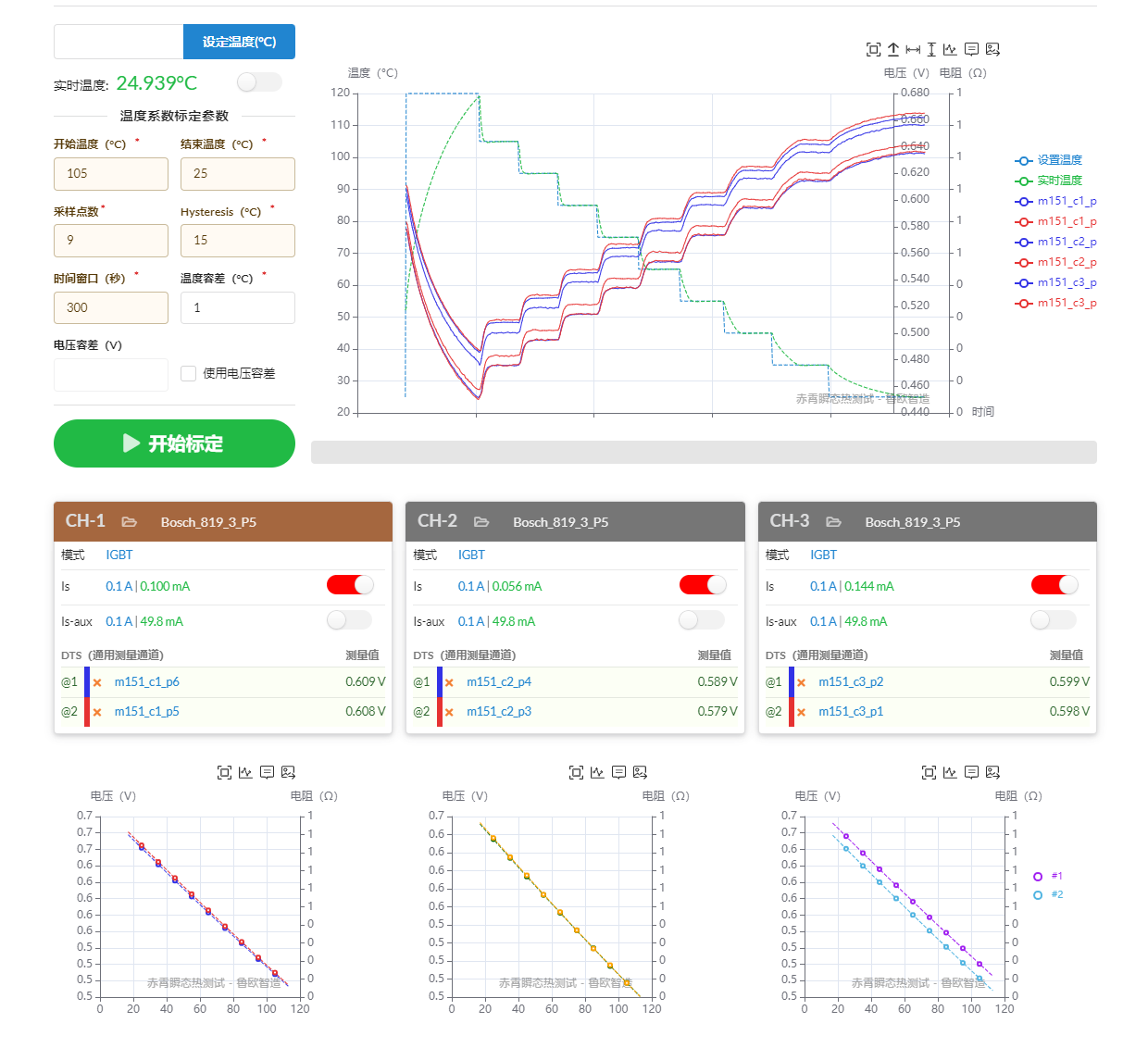

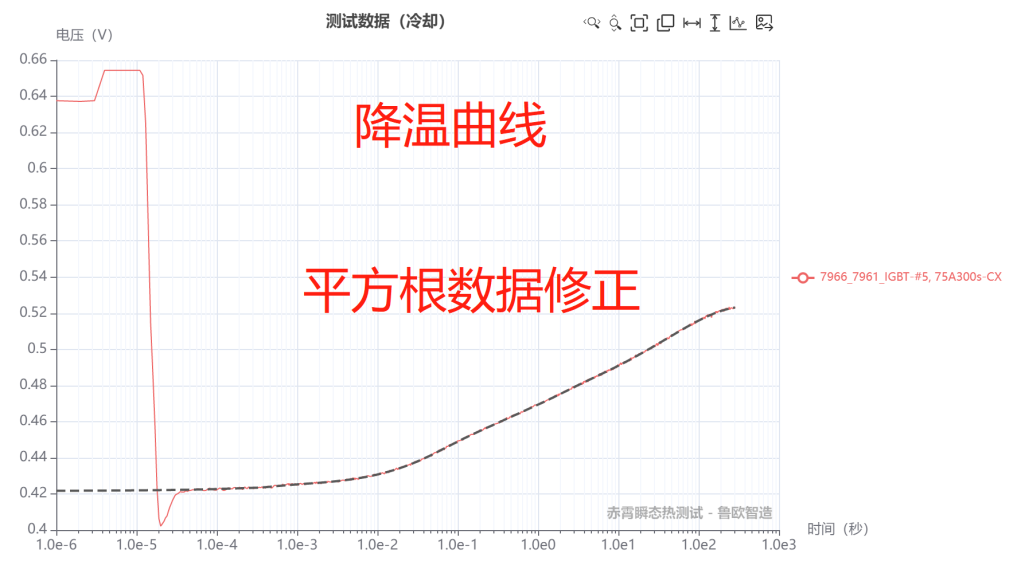

The Chixiao CX-30A10V4P is a state-of-the-art transient thermal tester designed for precise thermal resistance testing and structural analysis of power devices such as DIODES, IGBTs, MOSFETs, and HEMTs. It complies with JESD 51-1 and JESD 51-14 standards, offering high-frequency sampling and advanced thermal analysis capabilities.
Save to Favorites
Overview
Specifications

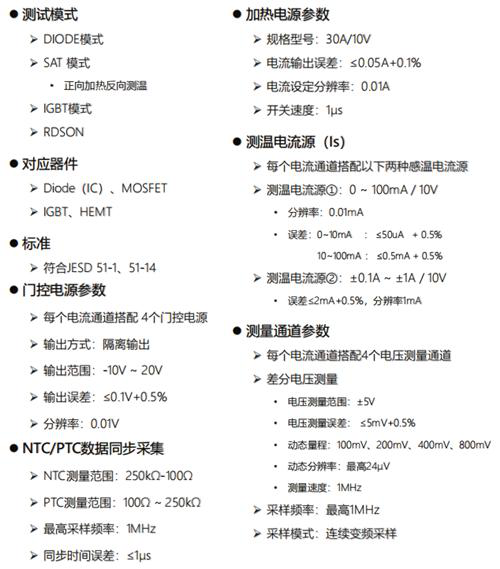

| Parameter | Value |
|---|---|
| Test Modes | DIODE模式, SAT模式, IGBT模式, RDSON模式 |
| Compatible Devices | DIODES |
| Compatible Devices | MOSFETs |
| Compatible Devices | IGBTs |
| Compatible Devices | HEMTs |
| Standards | JESD 51-1, JESD 51-14 |
| Gate Power Supply Channels | 4 |
| Gate Power Supply Output Mode | 隔离输出 |
| Gate Power Supply Output Range | -10V~20V |
| Gate Power Supply Output Error | ≤0.1V±0.5% |
| Gate Power Supply Resolution | 0.01V |
| NTC Measurement Range | 250kΩ~100Ω |
| PTC Measurement Range | 100Ω~250kΩ |
| Maximum Sampling Frequency | 1MHz |
| Synchronization Time Error | ≤1μs |
| Gate Leakage Current Measurement Range | 1nA~850nA, 850nA~1mA |
| Gate Leakage Current Measurement Resolution | 0.01nA, 0.01μA |
| Heating Power Supply Model | 30A/10V |
| Heating Power Supply Current Output Error | ≤0.05A±0.1% |
| Heating Power Supply Current Setting Resolution | 0.01A |
| Heating Power Supply Switching Speed | 1μs |
| Temperature Measurement Current Source Range (Main) | ±0.1A~±1A/10V |
| Temperature Measurement Current Source Resolution (Main) | 1mA |
| Temperature Measurement Current Source Error (Main) | ≤2mA±0.5% |
| Temperature Measurement Current Source Range (Auxiliary) | 0~100mA/10V |
| Temperature Measurement Current Source Resolution (Auxiliary) | 0.01mA |
| Temperature Measurement Current Source Error (Auxiliary) | ≤50μA±0.5%, ≤0.5mA±0.5% |
| Measurement Channels | 4 |
| Dynamic Voltage Measurement Range | ±5V |
| Dynamic Voltage Measurement Error | ≤5mV±0.5% |
| Dynamic Range | 100mV, 200mV, 400mV, 800mV |
| Dynamic Resolution | 1.6μV |
| Sampling Frequency | Maximum 1MHz |
| Sampling Mode | Continuous Sampling |
