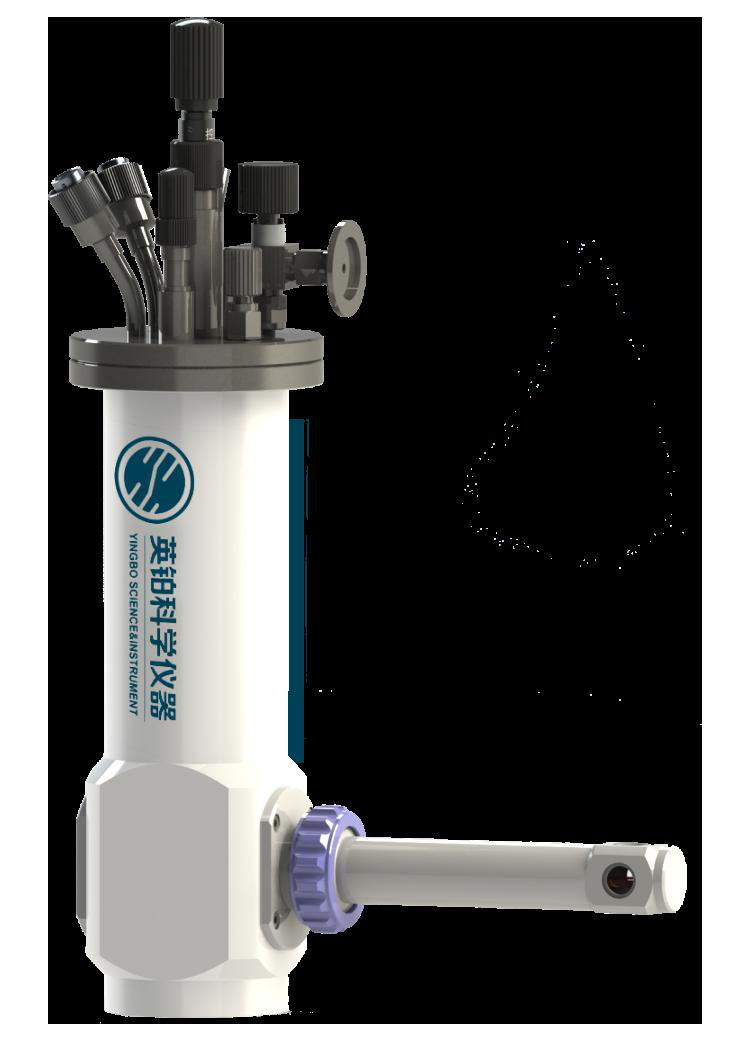

LNC-MS Series Liquid Nitrogen Cryostat
The LNC-MS series liquid nitrogen cryostat is designed for precise temperature control and stability in scientific experiments, offering a wide temperature range and excellent vacuum performance.
Save to Favorites
Overview
Specifications

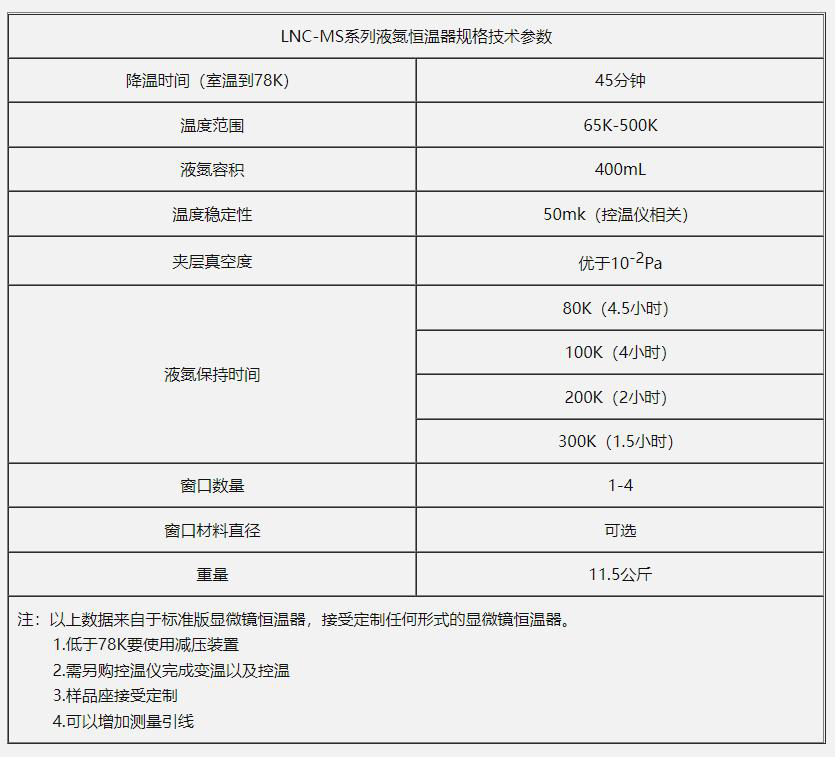

| Parameter | Value |
|---|---|
| Cooling Time | 45分钟 |
| Temperature Range | 65K-500K |
| Liquid Nitrogen Capacity | 400mL |
| Temperature Stability | 50mk (控温仪Related Categories) |
| Ultimate Vacuum | 优于10^-2Pa |
| Liquid Nitrogen Retention Time at 80K | 4.5小时 |
| Liquid Nitrogen Retention Time at 100K | 4小时 |
| Liquid Nitrogen Retention Time at 200K | 2小时 |
| Liquid Nitrogen Retention Time at 300K | 1.5小时 |
| Number of Windows | 1-4 |
| Window Material Diameter | 可选 |
| Weight | 11.5公斤 |
