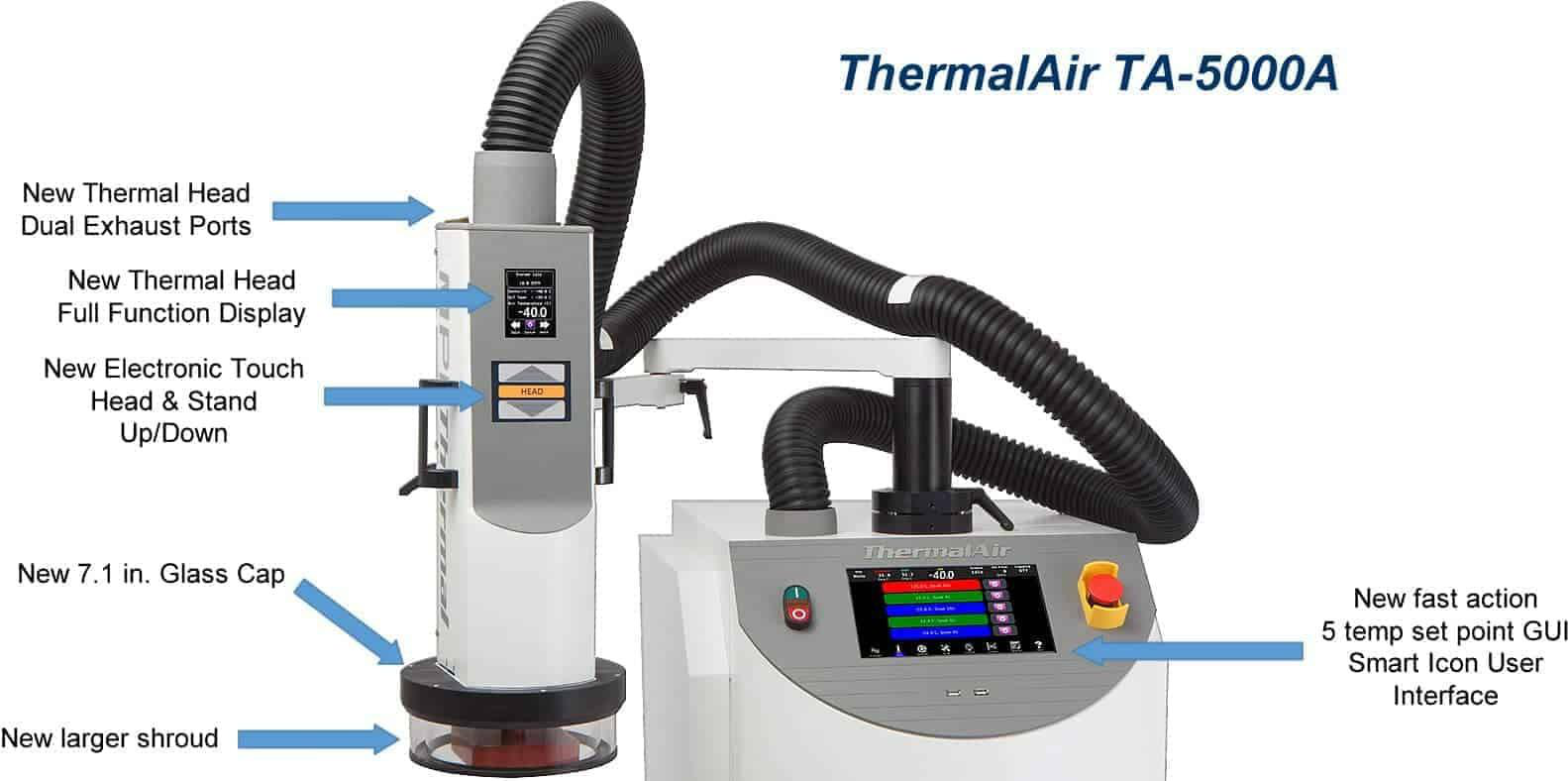

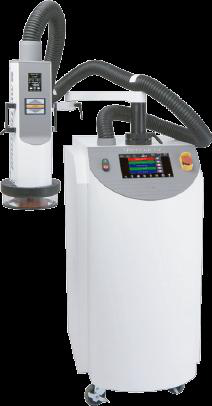

ThermalAir TA-5000A
The ThermalAir TA-5000A is a precision temperature testing system designed for thermal cycling and temperature conditioning of electronic components and assemblies. It provides a wide temperature range and advanced features for reliable and efficient testing.
Save to Favorites
Overview

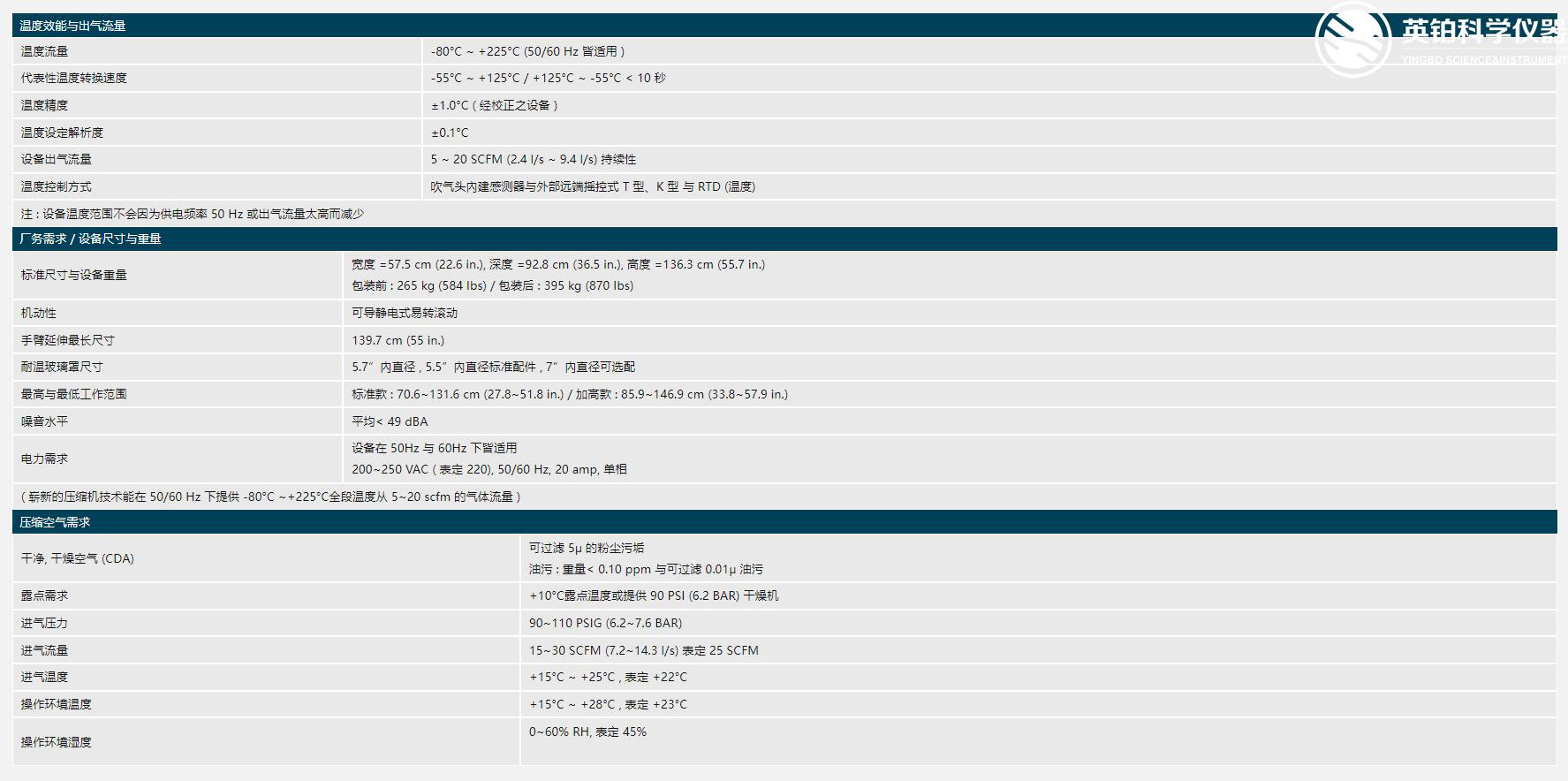

Specifications
| Parameter | Value |
|---|---|
| Temperature range | -80°C to +225°C (50/60Hz adjustable) |
| Temperature Transition Rate | -55°C to +125°C / +125°C to -55°C <10s |
| Temperature Stability | ±0.1°C (measured at DUT) |
| Temperature Accuracy | ±0.1°C |
| Air Flow Rate | 5–20SCFM (2.4l/s–9.4l/s) adjustable |

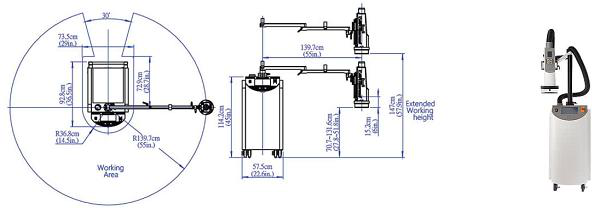

| Working Area Diameter | 139.7cm (55in) |
| Working Area Radius | 73.5cm (29in) |
| Working Area Height | 92.8cm (36.5in) |
| Equipment Dimensions | 57.5cm (22.6in) x 92.8cm (36.5in) x 136.3cm (53.7in) |
| Equipment Weight | 395kg (870lbs) |
| Noise Level | <49dBA |
| Power Requirements | 200–240VAC, 50/60Hz, 20amp |
| Clean Dry Air Pressure | 90–110PSIG (6.2BAR) |
| Clean Dry Air Flow | 15–30SCFM (2.2–14.3l/s) max 25SCFM |
| Operating Environment Temperature | +15°C to +28°C |
| Storage Environment Temperature | -15°C to +28°C |
| Operating Environment Humidity | 0–60%RH, non-condensing |
| Storage Environment Humidity | 45%RH |
