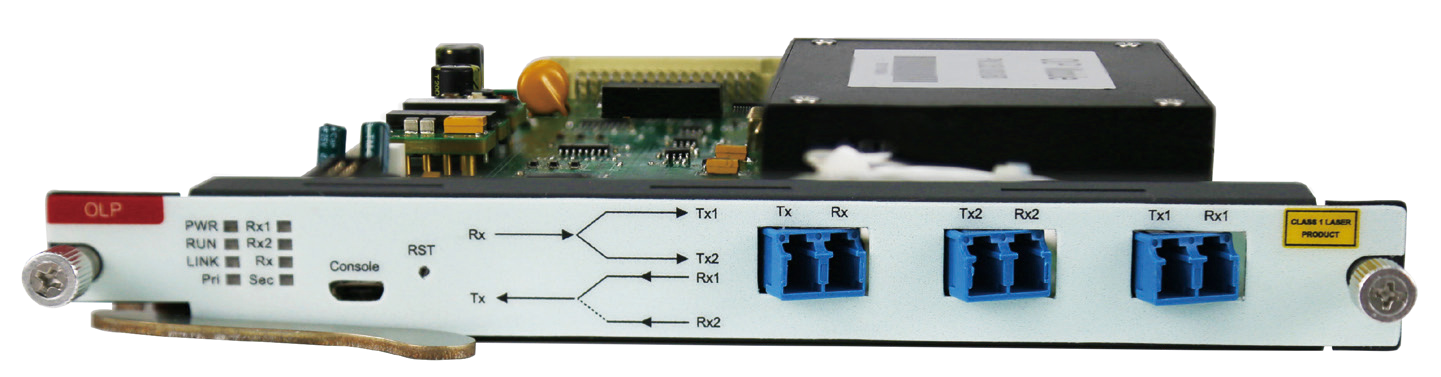

CDTrans-OLP
CDTrans-OLP is a protection system for optical line backup, providing 1+1 protection for optical lines with a switching time of less than 20ms. It automatically identifies the optical signal status of the main and standby systems, ensuring instantaneous optical path switching to improve communication service quality.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Port Client side | 1*LC |
| Port Line side | 2*LC |
| Protection Mode | C-band, 1+1, Switch time≤20ms, Automatic and forced modes |
| Occupy Slot Position | 1 slot |
| Network | CLI |
| Network | WEB |
| Management | Optical Los alarm |
| Function | View working mode |
| Function | Protection mode configuration |
| Dimension (H*W*D) | 22*170*245mm |
| Working Environment Operating Temperature | -10°C~60°C |
| Working Environment Humidity | 5%~95% without condensation |
| Storage Environment Temperature | -40°C~80°C |
| Power Consumption | <10W |
| Optical Power Monitoring Range | -30dBm~+25dBm |
| Optical Path Protection Switching Time | ≤20ms |
