CDTrans-OCP

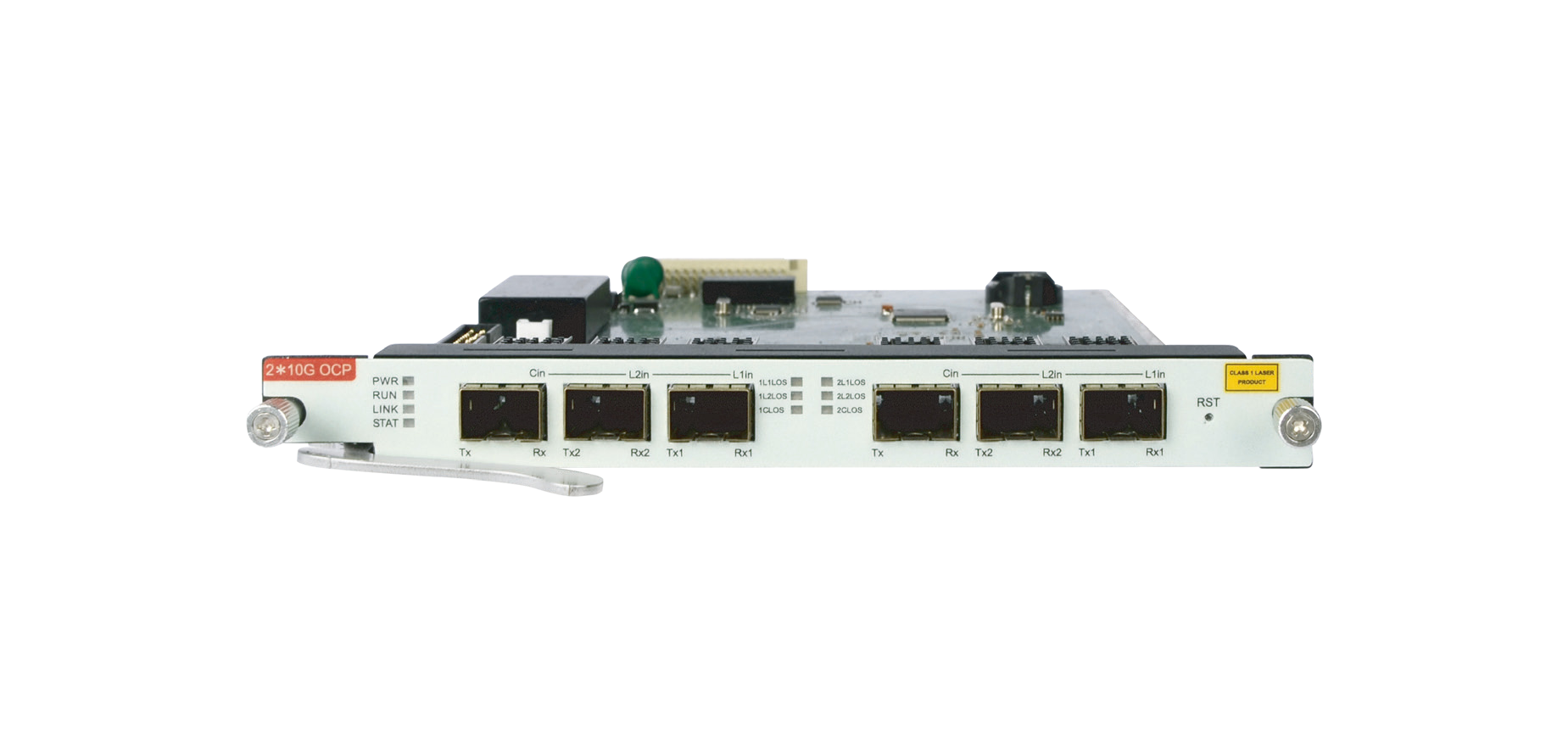

CDTrans-OCP is an optical channel protection board designed to safeguard two client signals using a 1+1 protection mode. It ensures reliable service quality by backing up critical client links and optimizing optical fiber resource transmission for medium and short distances. The board supports WDM wavelength division multiplexing and features SFP+ interface types for flexible signal access.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Port | Client signal 2*SFP+ gray, hot pluggable; Line signal 1*SFP+ DWDM for one service, hot pluggable |
| WDM Wavelength | 1*WDM wavelength |
| Type of Service | FE/GE/10GE, 2G/4G/8G/10GFC, CPRI1-8, STM1/4/16/64, OTU2/2e, OTU1f/OTU2f, OTU1/OTU1e |
| Protection Mode | 1+1, Switch time ≤20ms |
| Occupy Slot Position | 1 slot |
| Network Management | CLI |
| Network Management | WEB |
| Function | Optical module Los alarm; Support DDM real-time optical port information monitoring; Support ALS; Protected Mode Configuration |
| Dimension (H*W*D) | 22*170*245mm |
| Working Environment | Temperature: -10°C~60°C; Humidity: 5%~95% without condensation |
| Storage Environment | Temperature: -40°C~80°C |
| Power Consumption | <15W |
