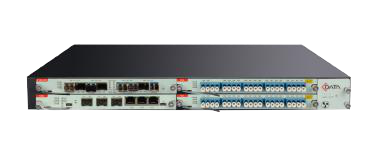

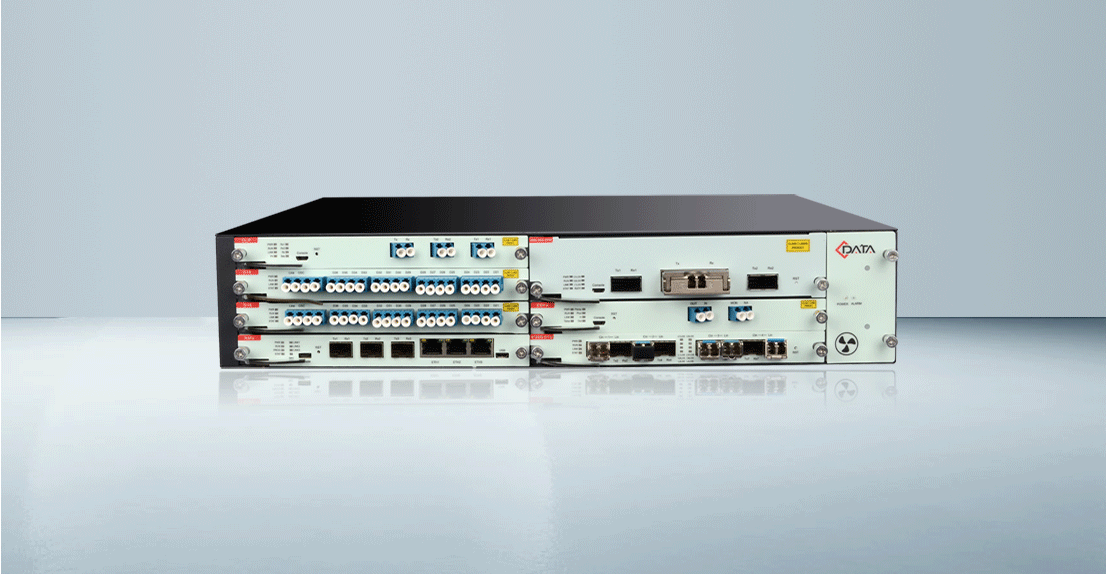

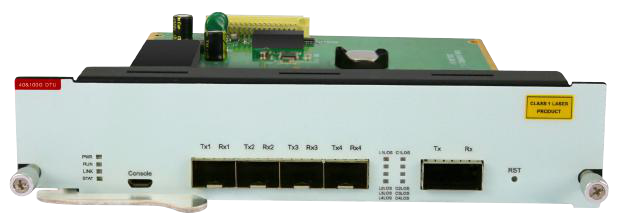

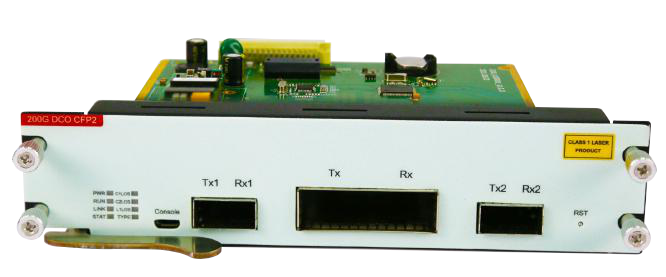

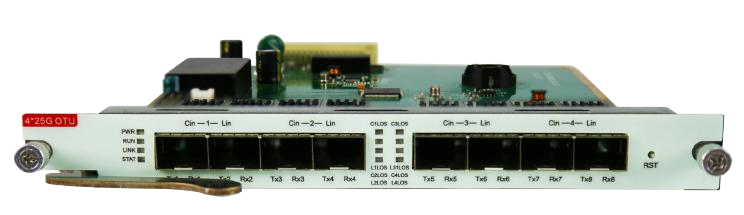

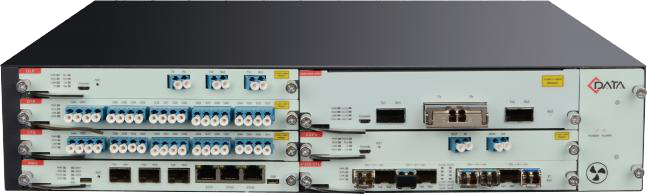

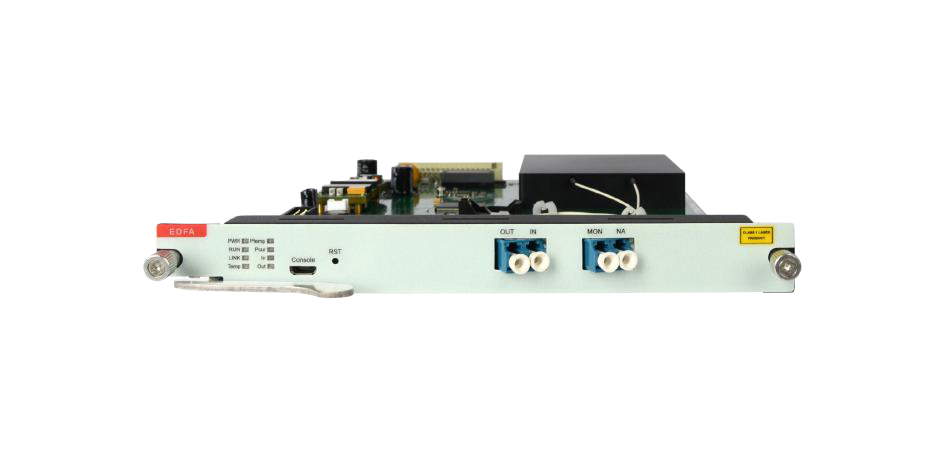

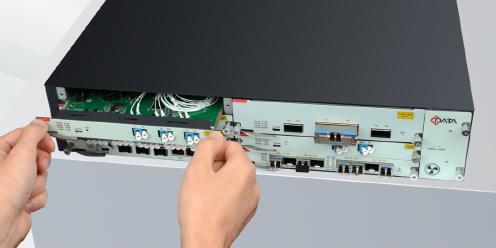

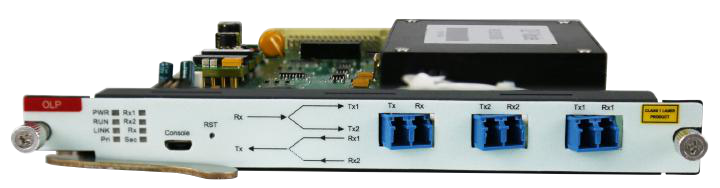

CDTrans Optical Transmission Series
CDTrans Optical Transmission Series provides advanced solutions for optical transmission, including WDM technology, high-speed, large-capacity, and fully transparent transmission. It supports network upgrades, flexible configurations, and mature protection schemes.
Save to Favorites
Overview
Specifications

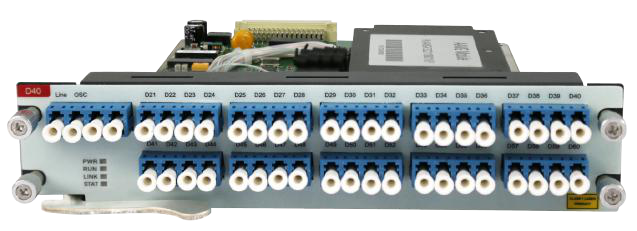

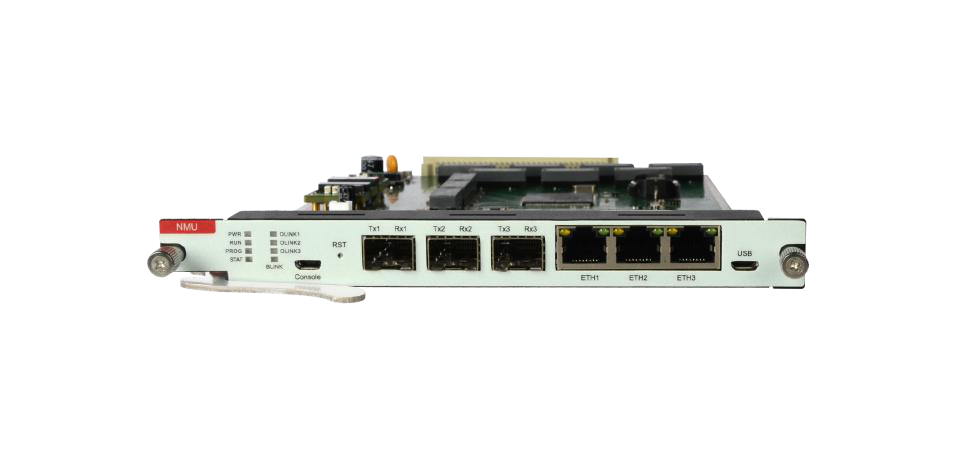

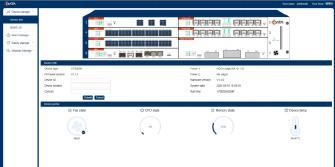

| Parameter | Value |
|---|---|
| Dimension (H*W*D) CDTrans-1000 | 45*440*320mm |
| Dimension (H*W*D) CDTrans-2000 | 89*440*380mm |
| Dimension (H*W*D) CDTrans-6000 | 260*440*320mm |
| Slots CDTrans-1000 | 4 slots |
| Slots CDTrans-2000 | 8 slots |
| Slots CDTrans-6000 | 20 slots |
| Maximum Power CDTrans-1000 | <60W |
| Maximum Power CDTrans-2000 | <120W |
| Maximum Power CDTrans-6000 | <550W |
| Number of Channels CDTrans-1000 | 8 |
| Number of Channels CDTrans-2000 | 16 |
| Number of Channels CDTrans-6000 | 48/96 |
| Networking Topology | Point to point |
| Networking Topology | chain |
| Networking Topology | star |
| Networking Topology | ring |
| Networking Topology | ring with chain |
| Networking Topology | mesh network |
| Wavelength Range DWDM | 1528nm-1568nm |
| Wavelength Range CWDM | 1271nm-1611nm |
| Wavelength Interval | 50GHz/100GHz fixed grid |
| Optical Interface | SDH rate: STM-1/4/16/64 |
| Transmission Mode | Ethernet rate: FE/GE/10GE/25GE/100GE, CPRI rate: CPRI1-8 or eCPRI, FC rate: 2G/4G/8G/10G/16G/32GFC, OTU rate: OTU1/OTU1e/OTU1f, OTU2/OTU2e/OTU2f, OTU3, OTU4 |
| Support Service Types | SDH/SONET, Ethernet, SAN, OTN, Video, CPRI |
| Power Supply Mode | 110V-220V AC, -48V DC, 1+1 hot backup |
| Operating Environment | Temperature: -10°C~60°C, Humidity: 5%~95% no condensation |
| Storage Environment | Temperature: -40°C~80°C |
| Dissipate Heat | 1*Fan, hot pluggable |
| Security and EMC | FCC |
| Security and EMC | UL |
| Security and EMC | CE |
| Security and EMC | TUV |
| Security and EMC | CSA |
| Management Interface | 3*FE RJ45, 3*FE SFP, 2*Micro USB |
| Network Management Mode | WEB |
| Network Management Mode | CLI |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

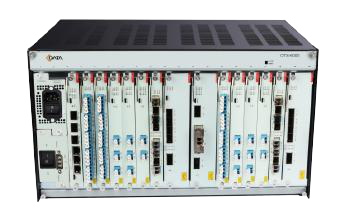

CDTrans-6000
Optical Transport Equipment
Cdatatec
Power Input: AC 220V Power Consumption: ≤300W Operating Temperature: -5°C to +55°C
CDTrans-6000 is a high-performance optical transmission platform designed for efficient data communication and networking.
-
CDTrans-DCM
Optical Transport Equipment
Cdatatec
Insertion Loss (dB) 1 Slot 20KM: ≤2.5dB Insertion Loss (dB) 1 Slot 40KM: ≤3.2dB Insertion Loss (dB) 2 Slots 60KM: ≤5.5dB

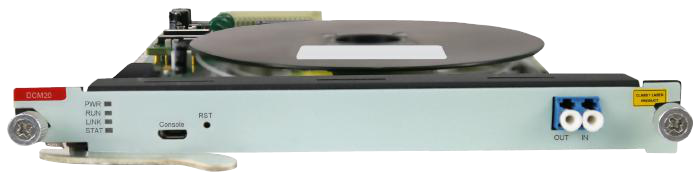

The CDTrans-DCM is a DCF-based passive dispersion compensation module designed to compensate the dispersion slope of standard G.652 single-mode fiber in the C-band. It ensures high-speed signal quality after long-haul transmission, eliminates intersymbol interference, improves system transmission performance, and enables long-haul, high-bandwidth, and large-capacity signal transmission.
-
CDTrans-OCP
Optical Transport Equipment
Cdatatec

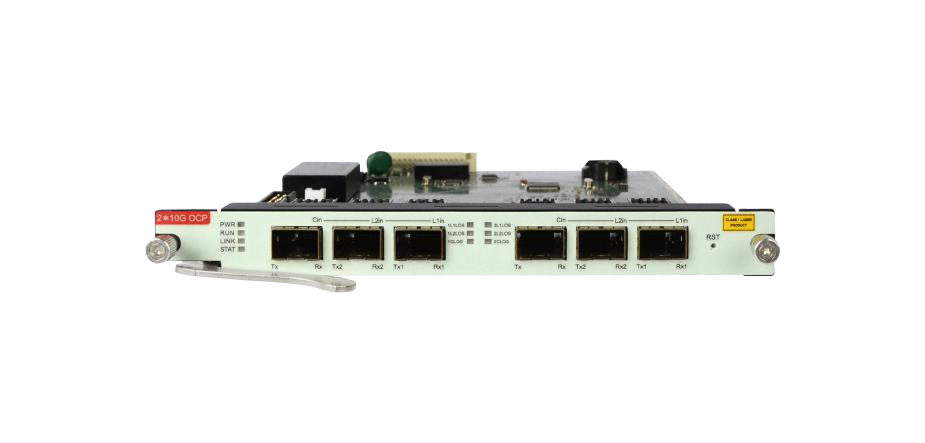

Port: Client signal 2*SFP+ gray, hot pluggable; Line signal 1*SFP+ DWDM for one service, hot pluggable WDM Wavelength: 1*WDM wavelength Type of Service: FE/GE/10GE, 2G/4G/8G/10GFC, CPRI1-8, STM1/4/16/64, OTU2/2e, OTU1f/OTU2f, OTU1/OTU1e
