CDTrans-DCM

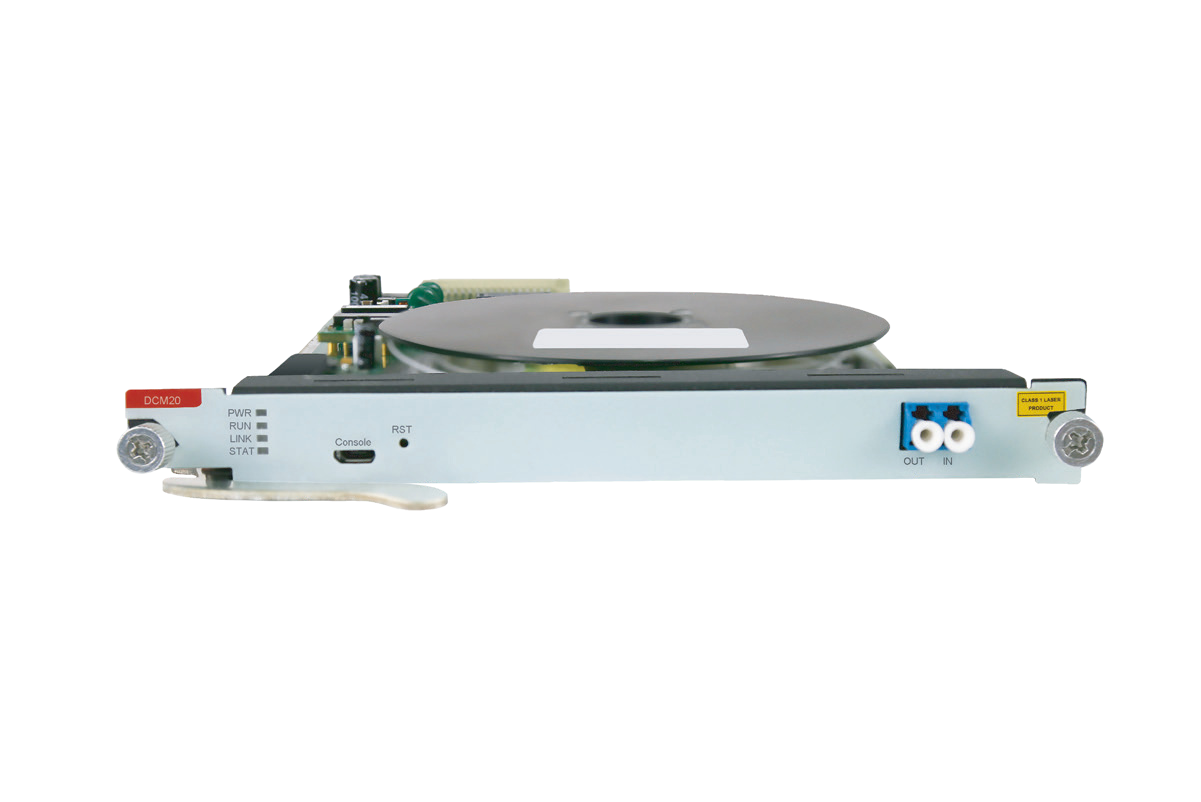

The CDTrans-DCM is a DCF-based passive dispersion compensation module designed to compensate the dispersion slope of standard G.652 single-mode fiber in the C-band. It ensures high-speed signal quality after long-haul transmission, eliminates intersymbol interference, improves system transmission performance, and enables long-haul, high-bandwidth, and large-capacity signal transmission.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1 Slot 20KM | ≤2.5dB |
| Insertion Loss (dB) 1 Slot 40KM | ≤3.2dB |
| Insertion Loss (dB) 2 Slots 60KM | ≤5.5dB |
| Insertion Loss (dB) 2 Slots 80KM | ≤6.5dB |
| Insertion Loss (dB) 2 Slots 100KM | ≤7.6dB |
| Insertion Loss (dB) 2 Slots 120KM | ≤9.8dB |
| Polarization Mode Dispersion (ps) 1 Slot 20KM | ≤0.3ps |
| Polarization Mode Dispersion (ps) 1 Slot 40KM | ≤0.4ps |
| Polarization Mode Dispersion (ps) 2 Slots 60KM | ≤0.7ps |
| Polarization Mode Dispersion (ps) 2 Slots 80KM | ≤0.8ps |
| Polarization Mode Dispersion (ps) 2 Slots 100KM | ≤0.9ps |
| Polarization Mode Dispersion (ps) 2 Slots 120KM | ≤1.1ps |
| Port | 2*LC |
| Slots | 1/2 slots |
| Compensation Mode | Fixed compensation |
| Relative Dispersion Slope of 1545nm Wavelength | 0.004±209nm-1 |
| Polarization Loss | ≤0.1dB |
| Reflection | -27dB |
| Maximum Allowable Input Power | ≤23dBm |
| Brillouin Scattering Threshold | ≥6dBm |
| Nonlinear System | ≤1.4*10-9n2/Aeff |
| Effective Area | ≥20Aeff |
| Network Management Function | CLI |
| Network Management Function | WEB |
| Dimension (H*W*D) 1 Slot | 22*170*245mm |
| Dimension (H*W*D) 2 Slots | 45*170*245mm |
| Working Environment | Operating temperature: -10°C~60°C, Storage temperature: -40°C~80°C, Humidity: 5%~95% without condensation |
| MTBF | ≥100,000 hours |
| Power Consumption | <10W |
