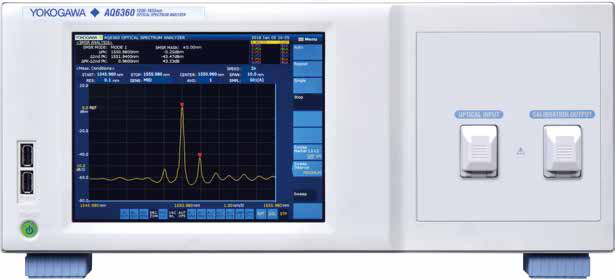

AQ6360 Optical Spectrum Analyzer
The AQ6360 is an economical and efficient optical spectrum analyzer based on diffraction grating technology, designed for optical component manufacturing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1200-1650nm |
| Wavelength Resolution | 0.1-2nm |
| Wavelength Accuracy | ±0.02nm (1520-1580nm), ±0.04nm (1580-1620nm) |
| Wavelength Linearity | ±0.01nm (1520-1580nm), ±0.02nm (1580-1620nm) |
| Wavelength Repeatability | ±0.002nm (1520-1580nm), ±0.005nm (1580-1620nm) |
| Dynamic Range | 55dB |
| Power Measurement Range | +20 to -80dBm |
| Power Measurement Accuracy | ±0.2dB |
| Power Resolution | 0.001dB |
| Sweep Speed | 10ms-5000ms |
| Optical Input Interface | FC |
| Optical Input Interface | SC |
| Display Resolution | 1280x800 pixels |
| Dimensions | 426mm(W) x 177mm(H) x 495mm(D) |
| Weight | 15kg |
| Power Requirements | 100-240V AC, 50/60Hz, 910VA |
| Operating Temperature Range | 0°C to +50°C |
| Storage Temperature Range | -10°C to +50°C |
| Humidity Range | ≤85% RH (non-condensing) |
