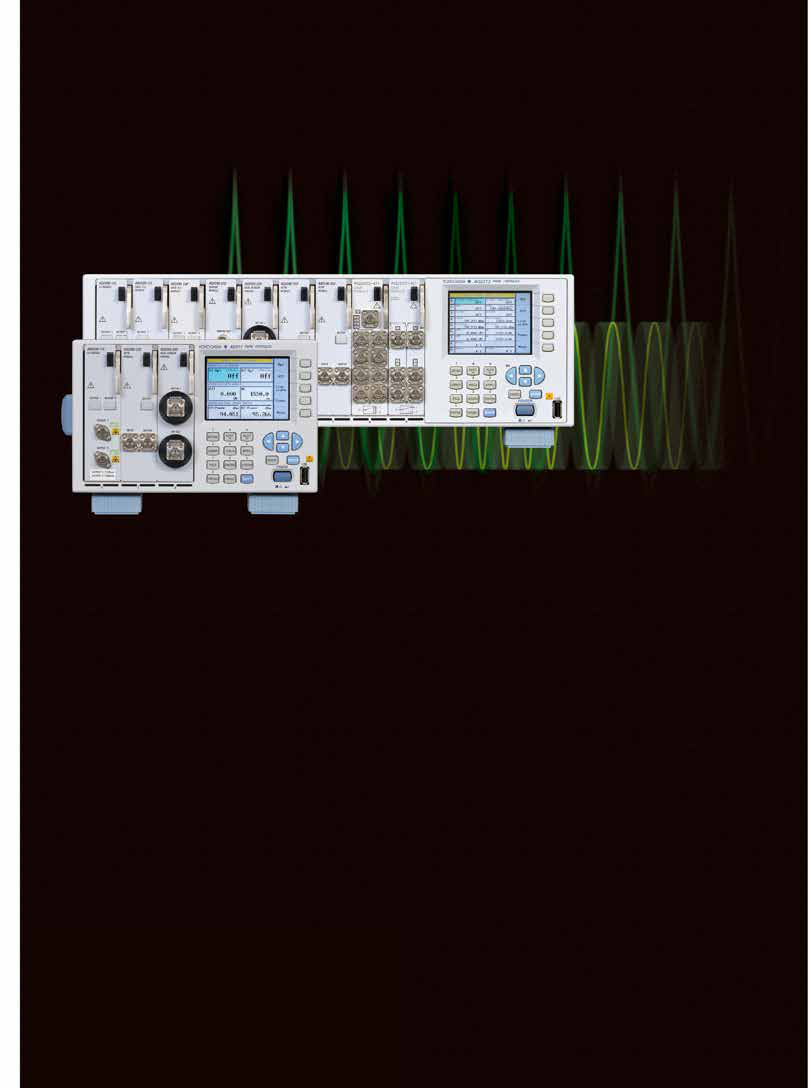

AQ2200 Series
The AQ2200 Series is a versatile measurement system designed for evaluating optical devices and optical transmission systems. It offers various measurement modules, including light sources, tunable lasers, optical power meters, optical attenuators, and optical switches.
Save to Favorites
Overview
Specifications

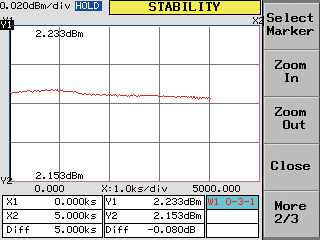

| Parameter | Value |
|---|---|
| Control Frame AQ2211-远程接口 | GP-IB, USB |
| Control Frame AQ2211-外部显示器接口 | USB |
| Control Frame AQ2211-Function | 支持热插拔, USB存储, multiple用户Function |
| Control Frame AQ2211-操作温度 | 5°C至40°C |
| Control Frame AQ2211-存储温度 | -20°C至60°C |
| Control Frame AQ2211-功耗 | 170VA |
| Control Frame AQ2211-尺寸 | 521mm×132.5mm×400mm |
| Control Frame AQ2211-重量 | 6.96kg |
| LS Module AQ2200-112-波长 | 1310nm±5nm, 1550nm±5nm, 1625nm±5nm, 1650nm±5nm |
| LS Module AQ2200-112-功率稳定性 | ±0.005dB |
| LS Module AQ2200-112-光功率 | ≥+10dBm |
| LS Module AQ2200-112-光功率稳定性 | ±0.005dB |
| LS Module AQ2200-112-光功率范围 | ≥+10dBm |
| Grid TLS Module AQ2200-131/132-波长范围 | C/L波段 |
| Grid TLS Module AQ2200-131/132-频率范围 | 196.25至191.50THz |
| Grid TLS Module AQ2200-131/132-功率稳定性 | ±0.005dB |
| Grid TLS Module AQ2200-131/132-光功率范围 | ≥+10dBm |
| Power Meter Module AQ2200-212-波长范围 | 800至1700nm |
| Power Meter Module AQ2200-212-功率范围 | 90至+15dBm |
| Power Meter Module AQ2200-212-功率稳定性 | ±2.5% |
| Power Meter Module AQ2200-222-波长范围 | 800至1700nm |
| Power Meter Module AQ2200-222-功率范围 | 90至+15dBm |
| Power Meter Module AQ2200-222-功率稳定性 | ±2.5% |
| Power Meter Module AQ2200-215-波长范围 | 700至1660nm |
| Power Meter Module AQ2200-215-功率范围 | 70至+30dBm |
| Power Meter Module AQ2200-215-功率稳定性 | ±3% |
| Optical Power Meter Probe AQ2200-232-波长范围 | 800至1700nm |
| Optical Power Meter Probe AQ2200-232-功率范围 | 90至+15dBm |
| Optical Power Meter Probe AQ2200-232-功率稳定性 | ±1.8% |
| Optical Power Meter Probe AQ2200-242-波长范围 | 400至1100nm |
| Optical Power Meter Probe AQ2200-242-功率范围 | 90至+10dBm |
| Optical Power Meter Probe AQ2200-242-功率稳定性 | ±2.5% |
| Optical Attenuator Module AQ2200-312-波长范围 | 1200至1700nm |
| Optical Attenuator Module AQ2200-312-插入损耗 | ≤0.18dB |
| Optical Attenuator Module AQ2200-312-功率范围 | ≤23dBm |
| Optical Attenuator Module AQ2200-332-波长范围 | 1200至1700nm |
| Optical Attenuator Module AQ2200-332-插入损耗 | ≤0.18dB |
| Optical Attenuator Module AQ2200-332-功率范围 | ≤23dBm |
| Optical Switch Module AQ2200-411-波长范围 | 1310nm/1550nm |
| Optical Switch Module AQ2200-411-插入损耗 | ≤0.08dB |
| Optical Switch Module AQ2200-411-功率范围 | ≥+10dBm |
| Optical Switch Module AQ2200-412-波长范围 | 1310nm/1550nm |
| Optical Switch Module AQ2200-412-插入损耗 | ≤0.08dB |
| Optical Switch Module AQ2200-412-功率范围 | ≥+10dBm |
| Optical Switch Module AQ2200-421-波长范围 | 1310nm/1550nm |
| Optical Switch Module AQ2200-421-插入损耗 | ≤0.08dB |
| Optical Switch Module AQ2200-421-功率范围 | ≥+10dBm |
| Transceiver Module AQ2200-642-电源电压范围 | ±7.5V至+5.25V |
| Transceiver Module AQ2200-642-电流范围 | ±1mA |
| Transceiver Module AQ2200-642-功率范围 | 280W |
