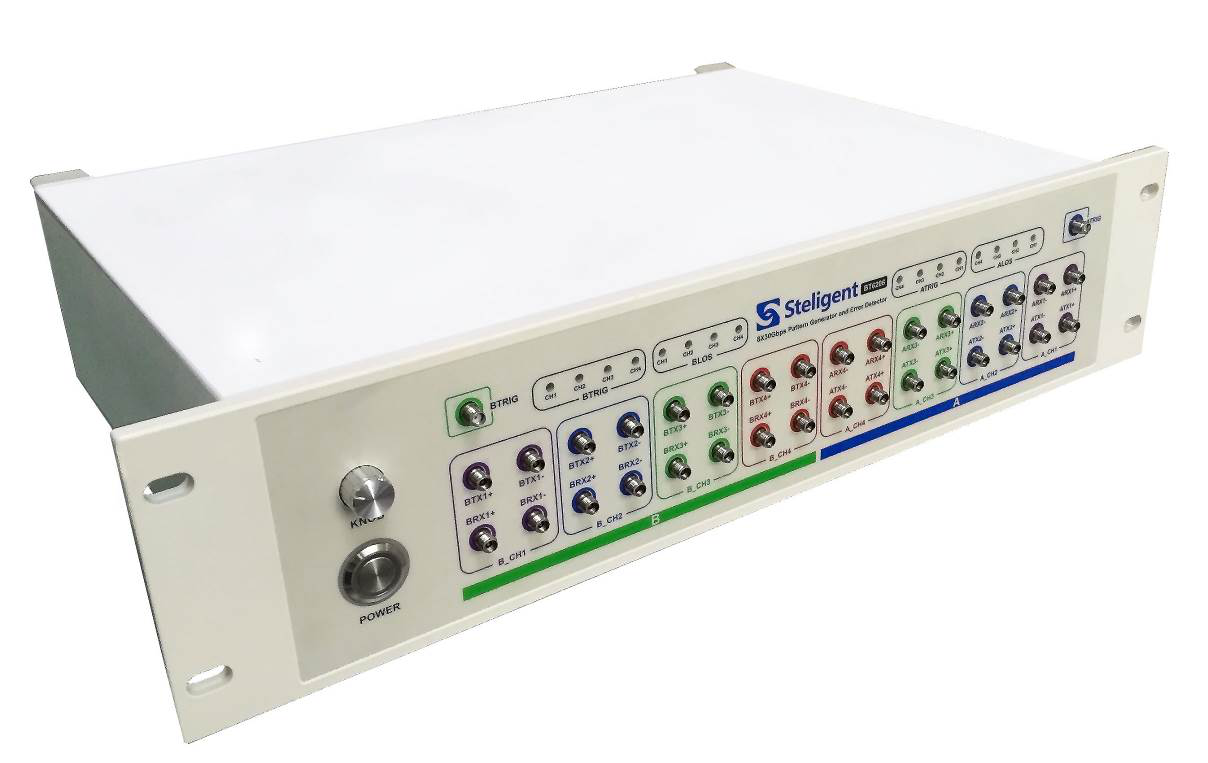

BT5210 Eight-Channel 30Gbps Error Detector (V2.8)
BT5210 is a high-performance, easy-to-use, low-cost eight-channel error detector with a rate of 8 x 30Gbps. It is suitable for the development and production testing of 100G/200G TOSA/ROSA components and on-site installation testing. It is also used to evaluate batch performance, code error rate, and multi-channel signal transmission systems. Additionally, it serves as an important tool for AOC and 100G/40G module production testing.
Save to Favorites
Overview
Specifications

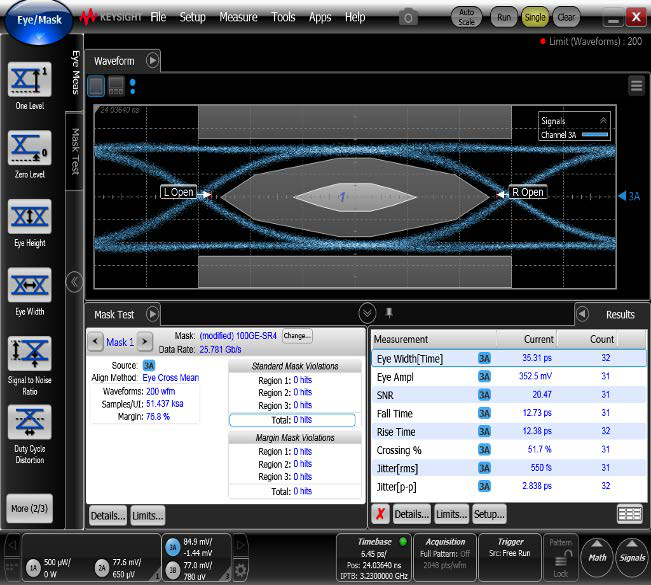

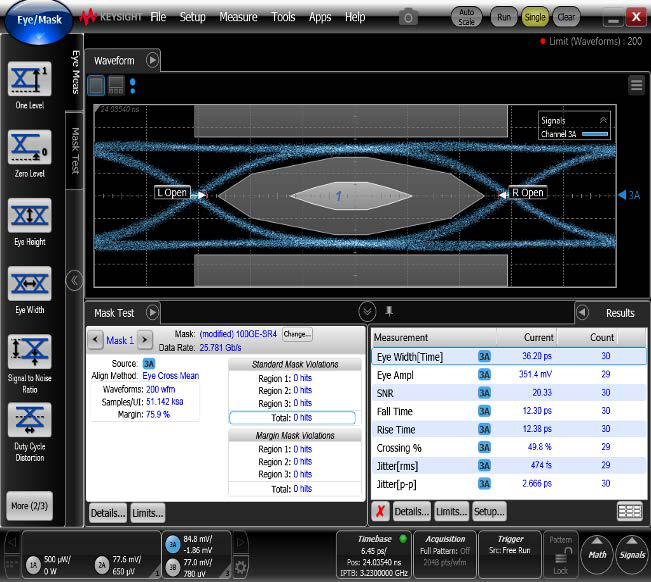

| Parameter | Value |
|---|---|
| Data Rate | 1Gbps~30GbpsGbps |
| Supported PRBS Patterns | 2^7-1, 2^9-1, 2^15-1, 2^23-1, 2^31-1, user-defined 40-bit patterns |
| Pattern Generator Data Rate | 1Gbps~30GbpsGbps |
| Pattern Generator Output Amplitude | 620mVppmVpp |
| Pattern Generator Rise Time | 12.48ps (20%-80%) |
| Pattern Generator Jitter | 515fs RMS jitter, 3.18ps peak-to-peak jitter |
| Clock Output Data Rate | 8/16/32/64 |
| Clock Output Amplitude | 1000mVppmVpp |
| Clock Output Connector | 500ohm, 2.92 40GHz SMK |
| Error Detector Data Input Type | Differential, Single-ended |
| Error Detector Impedance | 1000ohm |
| Error Detector Amplitude | 1000mVppmVpp |
| Error Detector Sensitivity | <40mV |
| Error Detector Clock Recovery Mode | Internal clock recovery |
| Error Detector Synchronization | Automatic |
| Error Detector Synchronization | clock and phase |
| Error Detector Connector | 500ohm, 2.92 SMK |
| Pattern Generator Output Type | Differential, AC coupled, 100ohm termination |
| Pattern Generator Single-ended Output Type | AC coupled, 50ohm termination |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
(1+1)x1 or (2+1)x1 High power pump and signal combiner (PM or non- PM)
Pump Combiners
Szsbksgdkjyxgs
泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它]: 800~1000nm 泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它]: 800~1000nm 泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400]: 800~1000nm
This pump combiner is a passive device based on fused biconical taper technology and is widely used in fiber lasers, fiber amplifiers, high-power EDFA, biomedical systems and sensor systems.
-

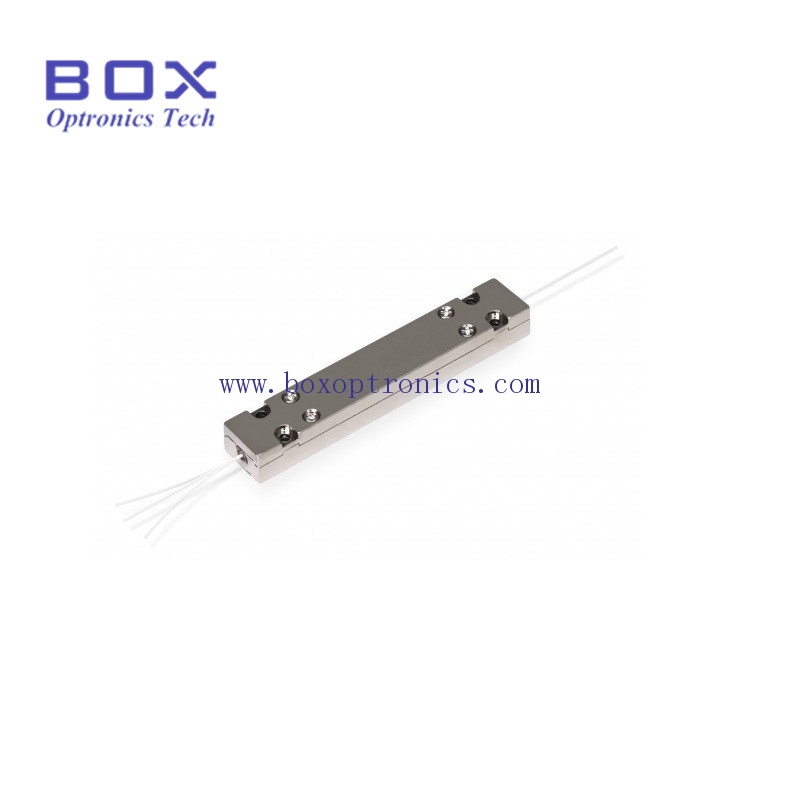

(6+1) x1 (18+1) x1 High power pump and signal combiner （PM or non- PM）
Pump Combiners
Szsbksgdkjyxgs
泵浦波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125]: 800~1000nm 泵浦波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250]: 800~1000nm 泵浦波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400]: 800~1000nm
The higher-capacity 18x1 or (18+1)x1 pump combiner is designed to combine multiple high-efficiency multimode laser diodes. It can handle several kilowatts of combined power and is available for different fiber types.
-

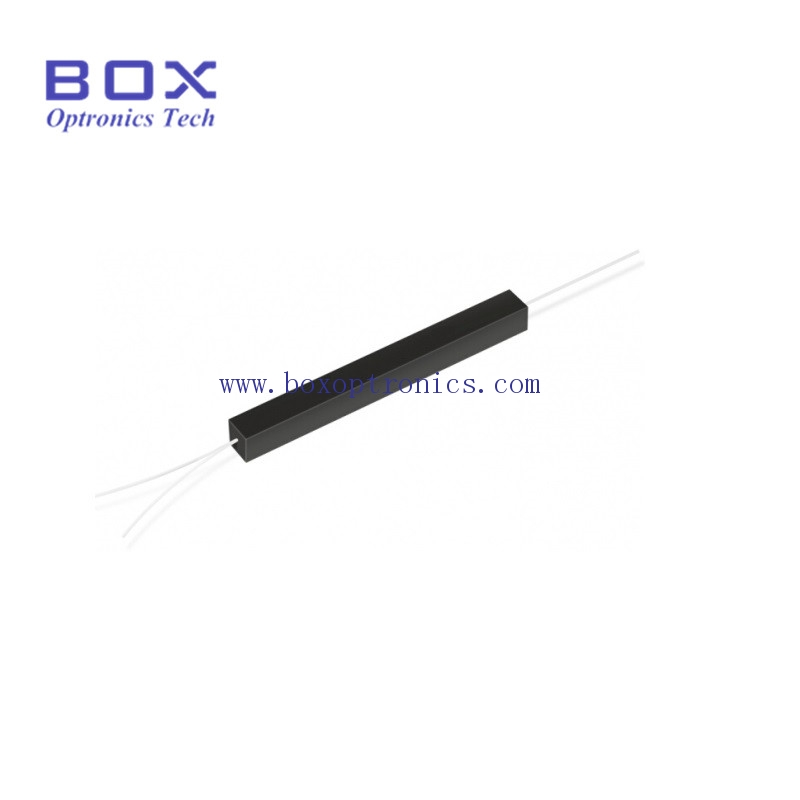

1064nm (2+1)x1 Fiber pump combiner
Pump Combiners
Szsbksgdkjyxgs
信号工作波长: 1064 nm 泵浦工作波长: 915/975 泵浦光纤-纤芯: 105 m
The (2+1)×1 multimode fiber pump combiner is designed for high-power laser applications. It combines six pump lasers and one signal channel into a single double-clad output fiber.
-

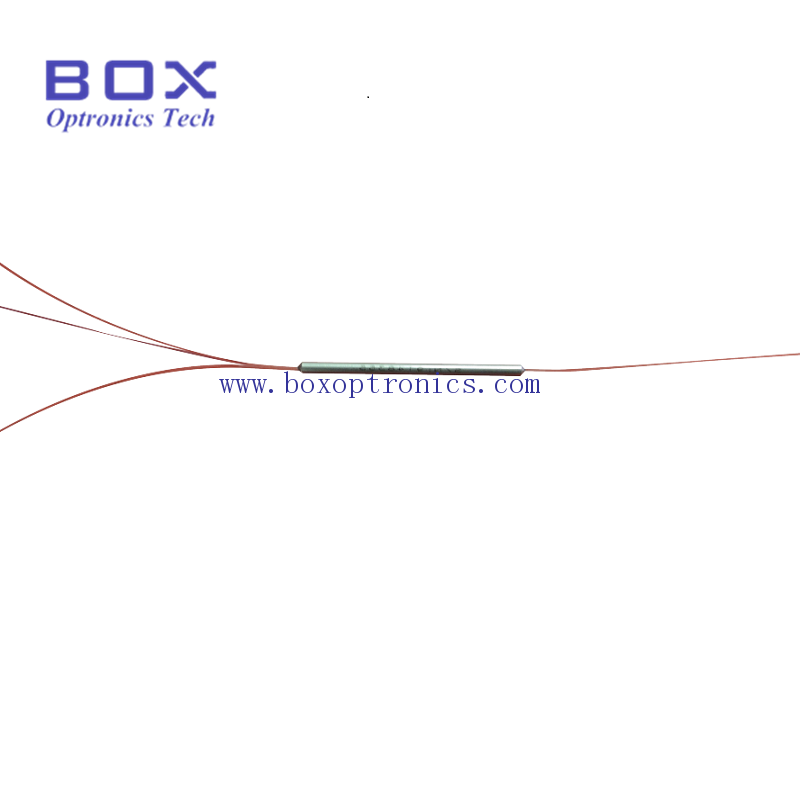

1550nm (2+1)x1 Fiber pump combiner
Pump Combiners
Szsbksgdkjyxgs
信号工作波长: 1550 nm 泵浦工作波长: 915/975 泵浦光纤-纤芯: 105 m
The (2+1)×1 multimode fiber combiner is designed for high-power laser applications. It combines two pumps and one signal channel into a single double-clad output fiber.
-

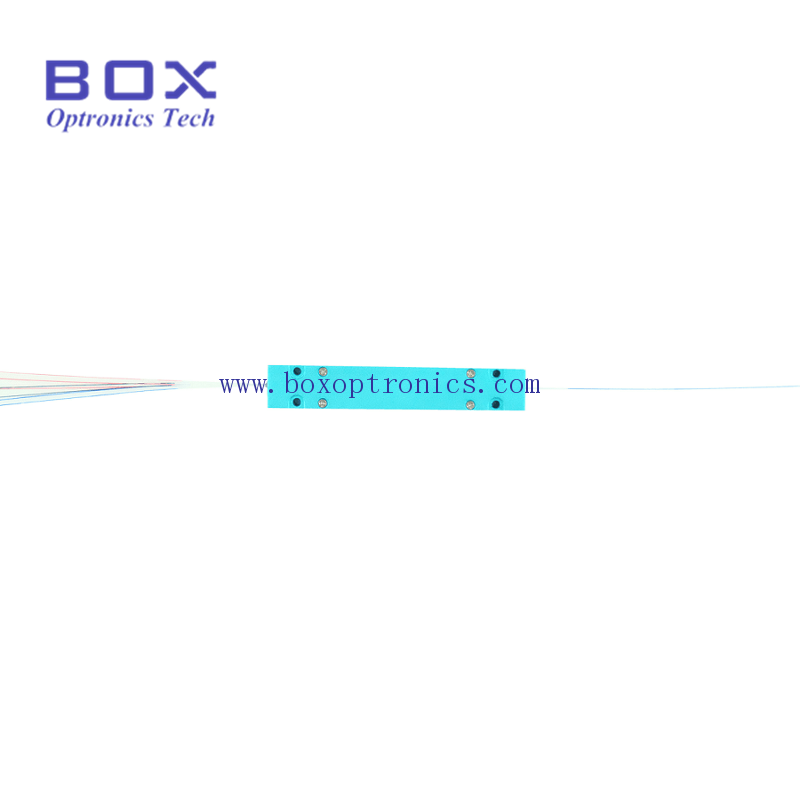

High power 1550nm-(6+1)x1 Fiber pump combiner
