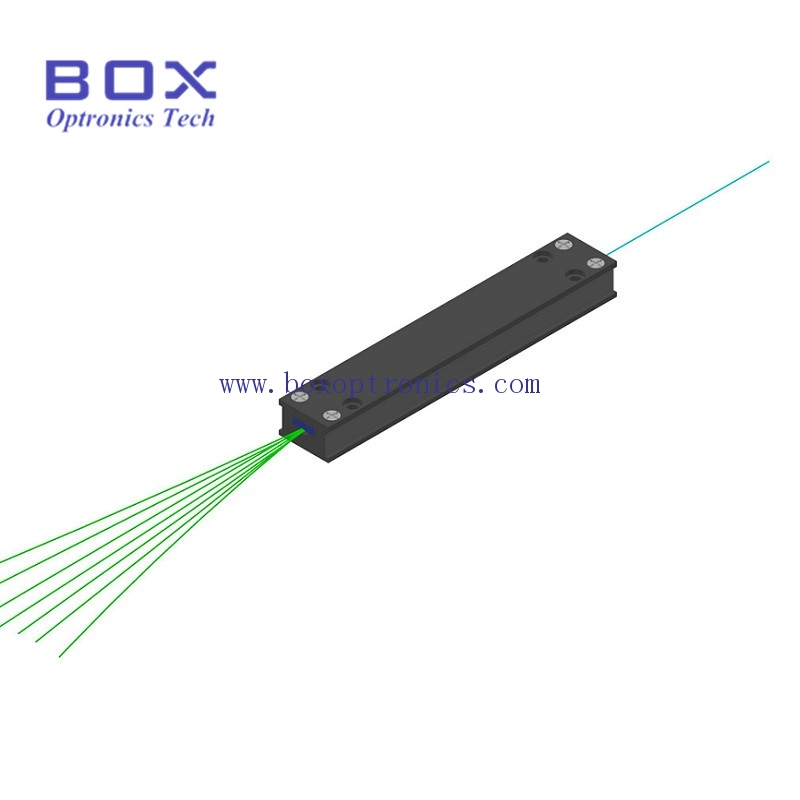

(6+1) x1 (18+1) x1 High power pump and signal combiner （PM or non- PM）
The higher-capacity 18x1 or (18+1)x1 pump combiner is designed to combine multiple high-efficiency multimode laser diodes. It can handle several kilowatts of combined power and is available for different fiber types.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 泵浦波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | 800~1000nm |
| 泵浦波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | 800~1000nm |
| 泵浦波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | 800~1000nm |
| 泵浦波长 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | 800~1000nm |
| 泵浦波长 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | 800~1000nm |
| 信号波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | 1030~1080nm or 1450~1600nm |
| 信号波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | 1030~1080nm or 1450~1600nm |
| 信号波长 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | 1030~1080nm or 1450~1600nm |
| 信号波长 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | 1030~1080nm or 1450~1600nm |
| 信号波长 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | 1030~1080nm or 1450~1600nm |
| 信号输入光纤 [端口配置: (6+1)x1 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | X/125 or X/250 or 20/400 |
| 信号输入光纤 [端口配置: (6+1)x1 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | X/125 or X/250 or 20/400 |
| 信号输入光纤 [端口配置: (6+1)x1 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | X/125 or X/250 or 20/400 |
| 信号输入光纤 [端口配置: (18+1)x1 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | X/125 |
| 信号输入光纤 [端口配置: (18+1)x1 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | X/125 |
| 泵浦光纤 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 输出光纤: Y/125] | 105/125 0.15NA/0.22NA |
| 泵浦光纤 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 输出光纤: Y/250] | 105/125 0.15NA/0.22NA |
| 泵浦光纤 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 输出光纤: 20/400] | 105/125 0.15NA/0.22NA; 200/220 0.22NA |
| 泵浦光纤 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 输出光纤: Y/250] | 05/125 0.15NA/0.22NA |
| 泵浦光纤 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 输出光纤: 20/400] | 05/125 0.15NA/0.22NA |
| 输出光纤 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA] | Y/125 |
| 输出光纤 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA] | Y/250 |
| 输出光纤 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA] | 20/400 |
| 输出光纤 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA] | Y/250 |
| 输出光纤 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA] | 20/400 |
| 泵浦效率 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | >90% |
| 泵浦效率 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | >93% |
| 泵浦效率 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | >95% |
| 泵浦效率 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | >93% |
| 泵浦效率 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | >95% |
| 信号插入损耗 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | <0.7dB |
| 信号插入损耗 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | <0.7dB |
| 信号插入损耗 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | <0.7dB |
| 信号插入损耗 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | <0.7dB |
| 信号插入损耗 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | <0.7dB |
| 总共承受功率 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | 300w |
| 总共承受功率 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | 600w |
| 总共承受功率 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | 900w |
| 总共承受功率 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | 2500w |
| 总共承受功率 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | 2500w |
| 消光比 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / for PM type.] | >18db for PM type. |
| 消光比 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250 / for PM type.] | >18db for PM type. |
| 消光比 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400 / for PM type.] | >18db for PM type. |
| 消光比 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250 / for PM type.] | >18db for PM type. |
| 消光比 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400 / for PM type.] | >18db for PM type. |
| 回损 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | >45dB |
| 回损 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | >45dB |
| 回损 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | >45dB |
| 回损 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | >45dB |
| 回损 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | >45dB |

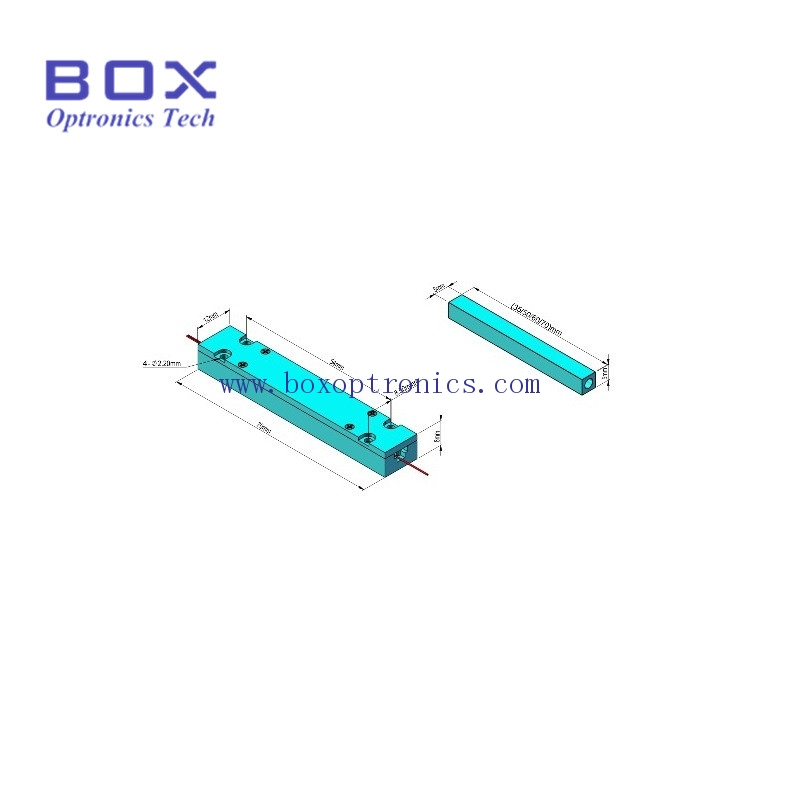

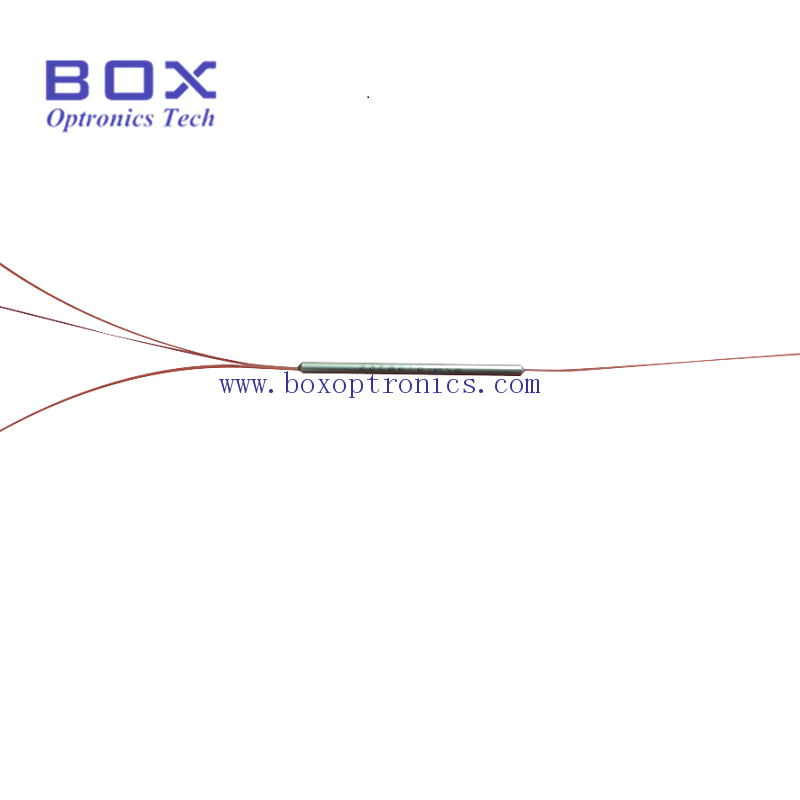

| 封装尺寸 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125] | Φ4x60mm,70x12x8mm,100x15x10mm, Other |
| 封装尺寸 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/250] | Φ4x60mm,70x12x8mm,100x15x10mm, Other |
| 封装尺寸 [端口配置: (6+1)x1 / 信号输入光纤: X/125 or X/250 or 20/400 / 泵浦光纤: 105/125 0.15NA/0.22NA; 200/220 0.22NA / 输出光纤: 20/400] | Φ4x60mm,70x12x8mm,100x15x10mm, Other |
| 封装尺寸 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: Y/250] | Φ4x60mm,70x12x8mm,100x15x10mm, Other |
| 封装尺寸 [端口配置: (18+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 05/125 0.15NA/0.22NA / 输出光纤: 20/400] | Φ4x60mm,70x12x8mm,100x15x10mm, Other |
