(1+1)x1 or (2+1)x1 High power pump and signal combiner (PM or non- PM)

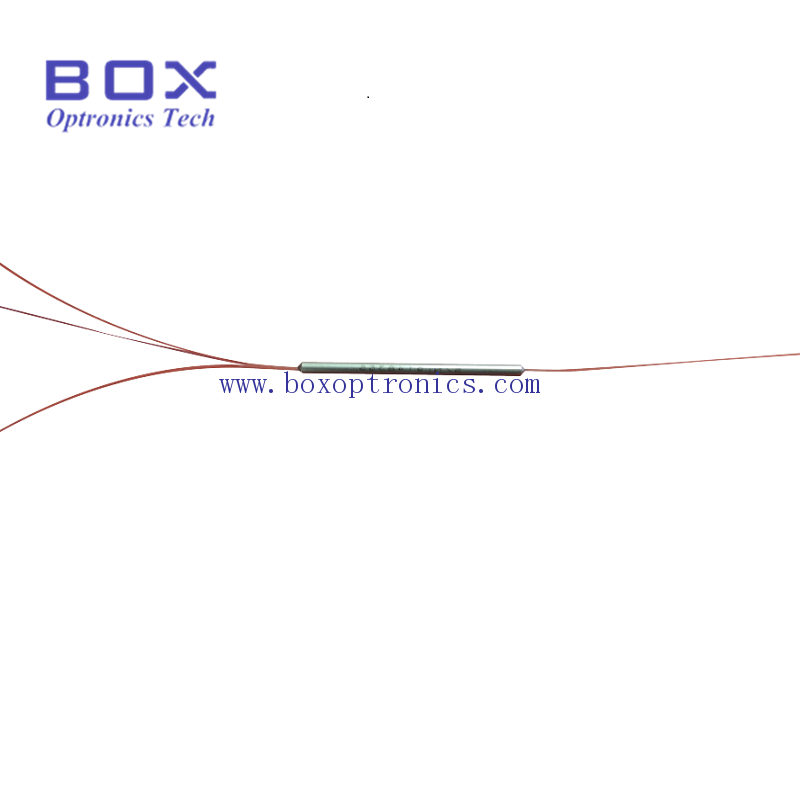

This pump combiner is a passive device based on fused biconical taper technology and is widely used in fiber lasers, fiber amplifiers, high-power EDFA, biomedical systems and sensor systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 800~1000nm |
| 泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 800~1000nm |
| 泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | 800~1000nm |
| 信号波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 1030~1080nm or 1450~1600nm |
| 信号波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 1030~1080nm or 1450~1600nm |
| 信号波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | 1030~1080nm or 1450~1600nm |
| 信号输入光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | X/125 |
| 信号输入光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | X/125 |
| 信号输入光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | X/125 or 20/400 |
| 泵浦光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 105/125 0.15NA/0.22NA |
| 泵浦光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 105/125 0.15NA/0.22NA |
| 泵浦光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | X/125 0.15NA/0.22NA |
| 泵浦光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 输出光纤: 20/400] | 200/220 0.22NA |
| 输出光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | Y/125 |
| 输出光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | Y/125 |
| 输出光纤 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA] | 20/400 |
| 泵浦效率 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | >90% |
| 泵浦效率 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | >93% |
| 泵浦效率 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | >95% |
| 信号插入损耗 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | <0.7dB |
| 信号插入损耗 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | <0.7dB |
| 信号插入损耗 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | <0.7dB |
| 总共承受功率 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 200w |
| 总共承受功率 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | 300w |
| 总共承受功率 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | 500w |
| 回损 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | >45dB |
| 回损 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它] | >45dB |
| 回损 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | >45dB |

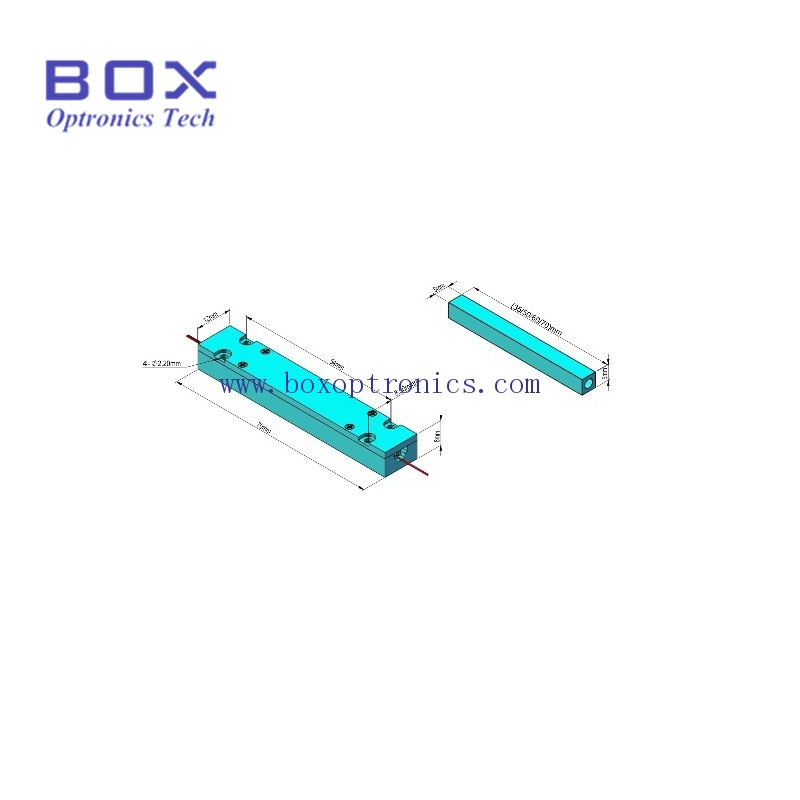

| 包装尺寸 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB] | Φ4x60mm, 70x12x8mm, 100x15x10mm, Other |
| 包装尺寸 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 泵浦波长: 800~1000nm / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB] | Φ4x60mm, 70x12x8mm, 100x15x10mm, Other |
| 包装尺寸 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400] | Φ4x60mm, 70x12x8mm, 100x15x10mm, Other |
