High power 1550nm-(6+1)x1 Fiber pump combiner
The (6+1)×1 multimode fiber combiner is designed for high-power laser applications. It combines six pump lasers and one signal channel into a single double-clad output fiber.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 信号工作波长 | 1550 nm |
| 泵浦工作波长 | 915/975 |
| 泵浦光纤-纤芯 | 105 m |
| 泵浦光纤-包层 | 125 m |
| 泵浦光纤-数值孔径 | 0.15/0.22 |
| 信号光纤 | SMF-28e(XB), 1550GDF |
| 输出光纤 | 1550GDF, DCF-UN-8/125-14 |
| 泵浦效率 | ≥93 % |
| 信号插入损耗 | ≤0.7(type 0.5) |
| M2 | ≤1.3 |
| 光隔离度 | ≥25 dB |
| 承载功率 | ≤50 W |
| 光纤长度 | ≥0.8 m |
| 封装尺寸 | 35/50/60/70x5.0x5.0, 70×12×8 |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-

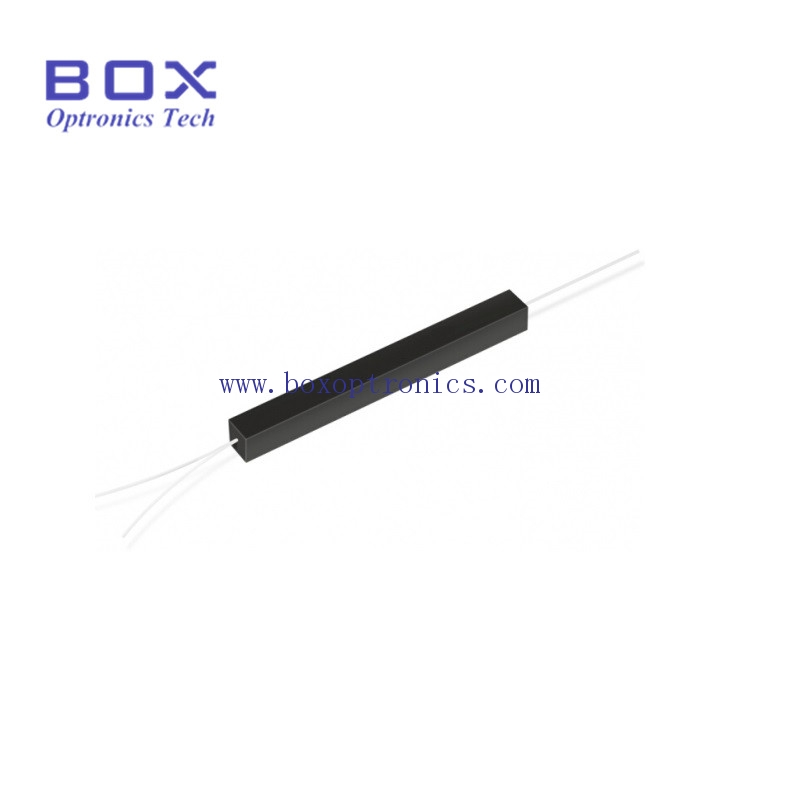

(1+1)x1 or (2+1)x1 High power pump and signal combiner (PM or non- PM)
Pump Combiners
Szsbksgdkjyxgs
泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >90% / 信号插入损耗: <0.7dB / 总共承受功率: 200w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它]: 800~1000nm 泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 / 泵浦光纤: 105/125 0.15NA/0.22NA / 输出光纤: Y/125 / 信号波长: 1030~1080nm or 1450~1600nm / 泵浦效率: >93% / 信号插入损耗: <0.7dB / 总共承受功率: 300w / 回损: >45dB / 包装尺寸: Φ4x60mm, 70x12x8mm, 100x15x10mm, 其它]: 800~1000nm 泵浦波长 [端口配置: (1+1)x1 或者 (2+1)x1 / 信号输入光纤: X/125 or 20/400 / 泵浦光纤: X/125 0.15NA/0.22NA / 泵浦光纤: 200/220 0.22NA / 输出光纤: 20/400]: 800~1000nm
This pump combiner is a passive device based on fused biconical taper technology and is widely used in fiber lasers, fiber amplifiers, high-power EDFA, biomedical systems and sensor systems.
-

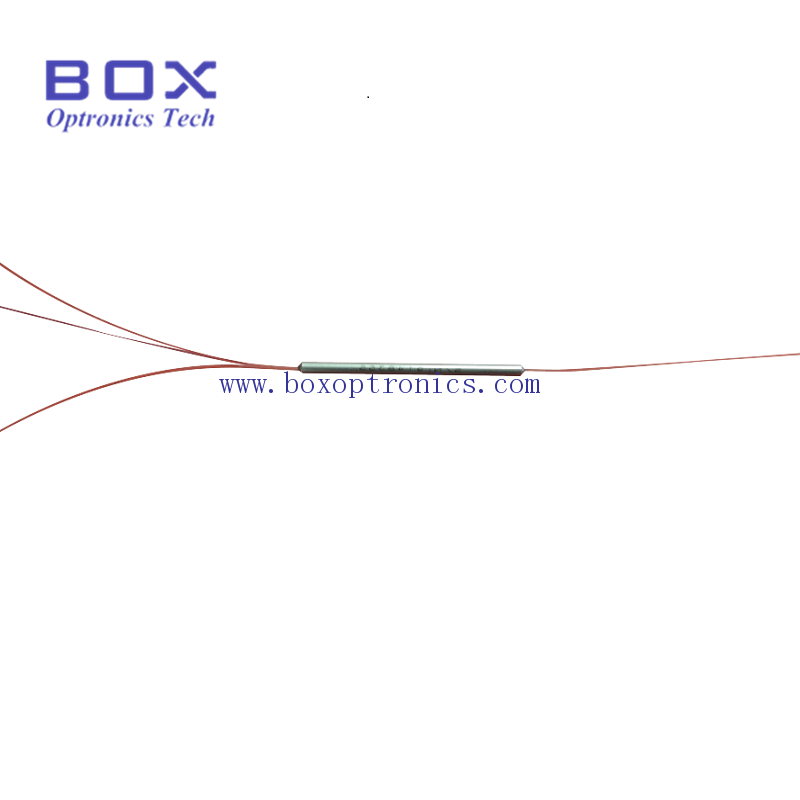

(6+1) x1 (18+1) x1 High power pump and signal combiner （PM or non- PM）
