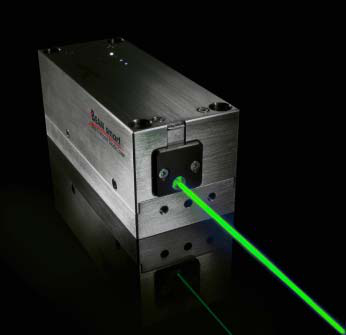

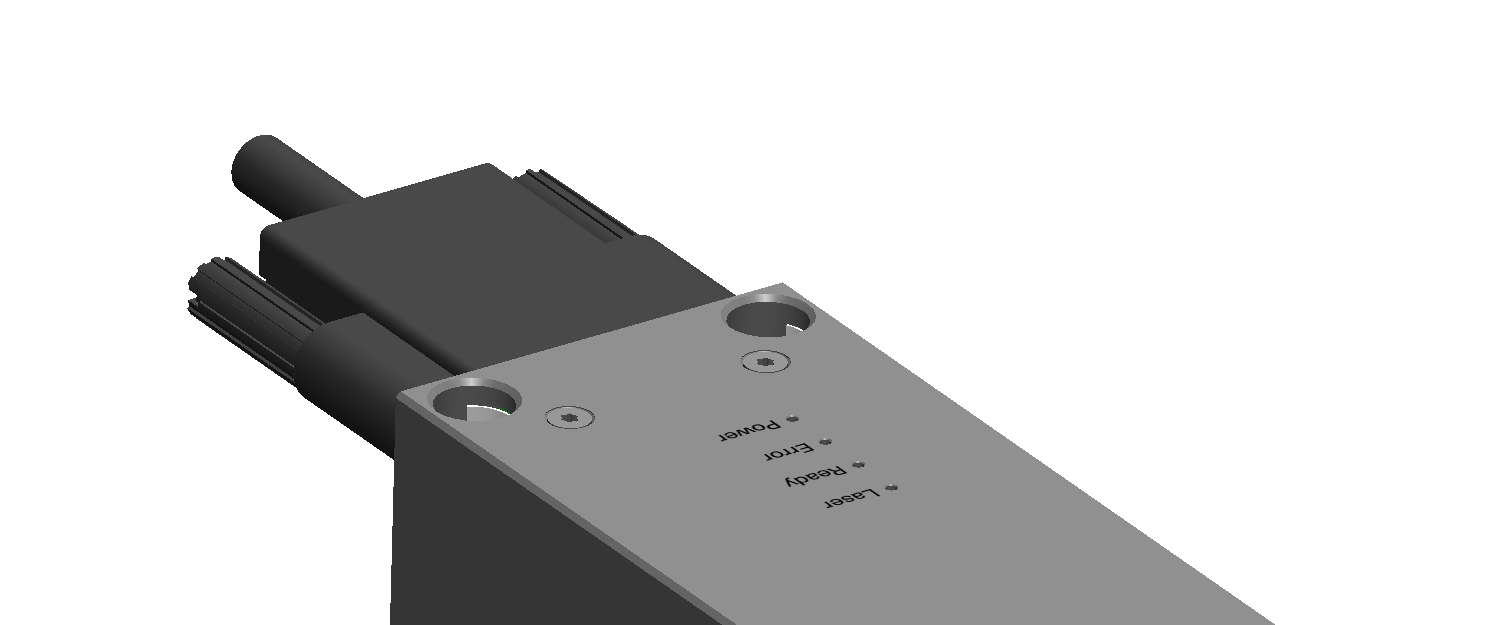

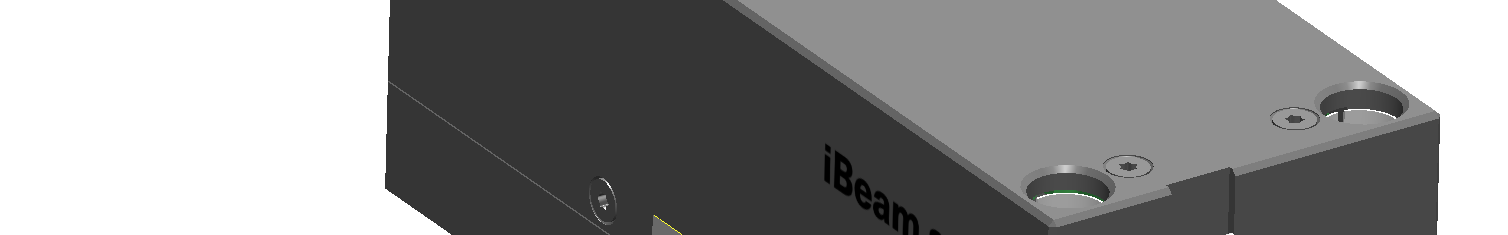

iBeam smart

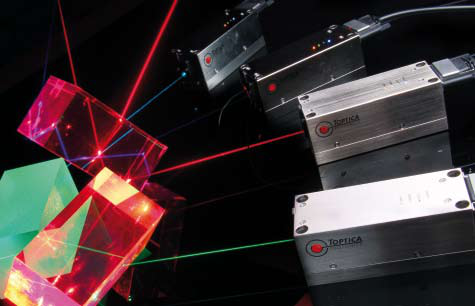

The iBeam smart is an ultra-compact diode laser module designed to enhance productivity and reliability in scientific and industrial applications. It features advanced electronic design, integrated laser controller, and unmatched power stability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 100×40×40mm |
| Wavelength Range | 375nm-785nm |
| Beam Diameter | ~1.1mm1/e² |
| Wave Front Error | <0.05λ |
| Beam Quality | M²<1.2 |
| Lowest Intensity Noise | <0.2%<10MHz |
| Power stability | <0.5% drift in 48hrs |
| Insensitivity to Optical Feedback | Yes |
| Laser Controller | Integrated |
| Power Levels | 120mW@405nm, 50mW@445nm, 60mW@488nm, 100mW@640nm, 150mW@642nm, 150mW@660nm |
| Digital modulation frequency | Up to 250MHz |
| Analog modulation frequency | Up to 1MHz |
| Fiber Coupling | Single-mode fiber coupling |
Applications
Key Features
Datasheet
