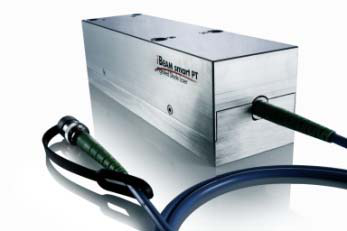

iBeam smart PT
The iBeam smart PT is a compact, permanently fiber-coupled diode laser designed for straightforward OEM integration. It features TOPTICA's proprietary COOLDC technology, ensuring long-term power stability and reliability. This product is ideal for applications requiring high precision and stability, such as microscopy and cytometry.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 375-1064nm |
| Output Power | Up to 500mW |
| Fiber Coupling Efficiency | Typical >75% |
| Fiber Type | Single-mode fiber |
| Fiber Length | Customizable |
| Fiber Connector | FC/APC |
| Beam Quality | TEM00 |
| Beam Stability | <0.5% over 24h |
| Noise Level | RMS noise <0.2% |
| Digital Modulation Bandwidth | Up to 250MHz |
| Optical Isolator | Optional |
| Power Supply Input | 100-240VAC |
| Power Supply Output | 12VDC/5A |
| Dimensions | 177mm x 40mm x 40mm |
| Weight | Not specified |
Applications
Key Features
Datasheet
