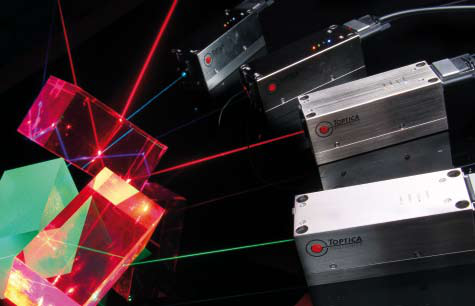

iBeam smart
The iBeam smart is an ultra-compact, high-performance single-mode diode laser designed for scientific and industrial applications. It offers exceptional power stability, low noise, and excellent beam quality, making it ideal for demanding applications such as confocal microscopy, flow cytometry, and micro-lithography.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Power Levels | 120mW at 405nm, 50mW at 445nm, 60mW at 488nm, 100mW at 640nm, 150mW at 642nm, 150mW at 660nm |
| Single-mode fiber coupling | Available |
| Wavefront error | <0.05λ |
| Beam Quality (M²) | <1.2 |
| Beam Diameter | ~1.1mm 1/e² |
| Beam pointing stability | <5μrad/°C |
| Power stability | <0.5% drift in 48 hours |
| Intensity noise | <0.2% <10MHz |
| Digital modulation frequency | Up to 250MHz |
| Analog modulation frequency | Up to 1MHz |
| Dimensions | 100x40x40mm³ |
| Power supply input | 100-240VAC, Output: 12VDC/5A |
Applications
Key Features
Datasheet
