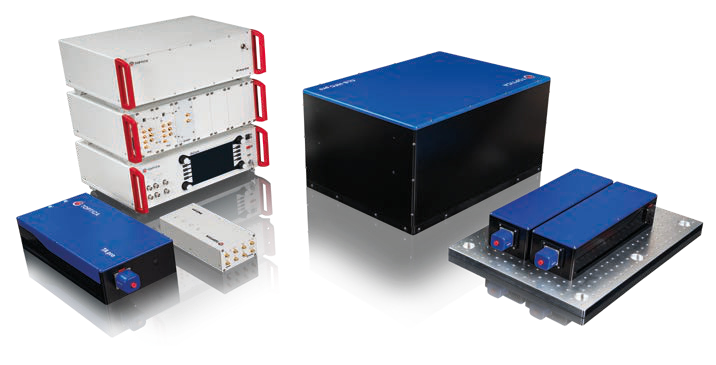

Clock Laser System (CLS)
The Clock Laser System (CLS) is an ultra-stable laser system optimized for precision quantum applications such as optical clocks, quantum simulation, and quantum computing. It features high-frequency stability and is designed to meet the demanding requirements of advanced sensing and metrology.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Linewidth at 1 s integration time | <1Hz |
| Integration Time | 1s, 10s, 100s |
| Fractional Frequency Instability | <2×10^-15 (1s), <2×10^-15 (10s), <3×10^-15 (100s) |
| Typical Phase Noise at 729nm | Offset Frequency: 10Hz (-42dBc/Hz), 10kHz (-90dBc/Hz), 1MHz (-90dBc/Hz) |
| Typical Linear Drift Rate (12 months after installation) | 150mHz/s |
| Loop Bandwidth (depends on the source laser) | Up to 4.5MHz |
| Free Spectral Range of High-Finesse Cavity | 1.5GHz |
Applications
Key Features
Datasheet
