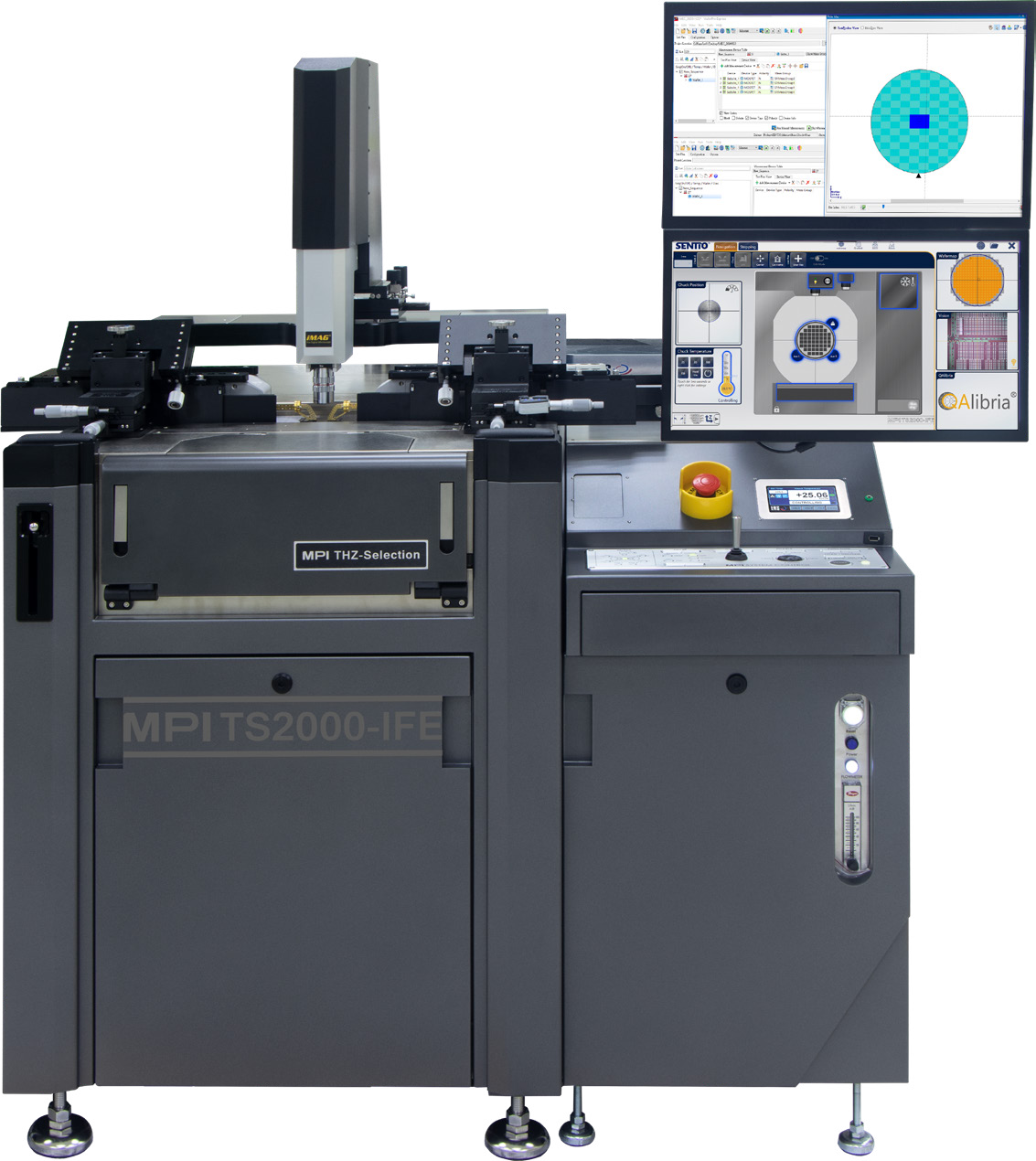

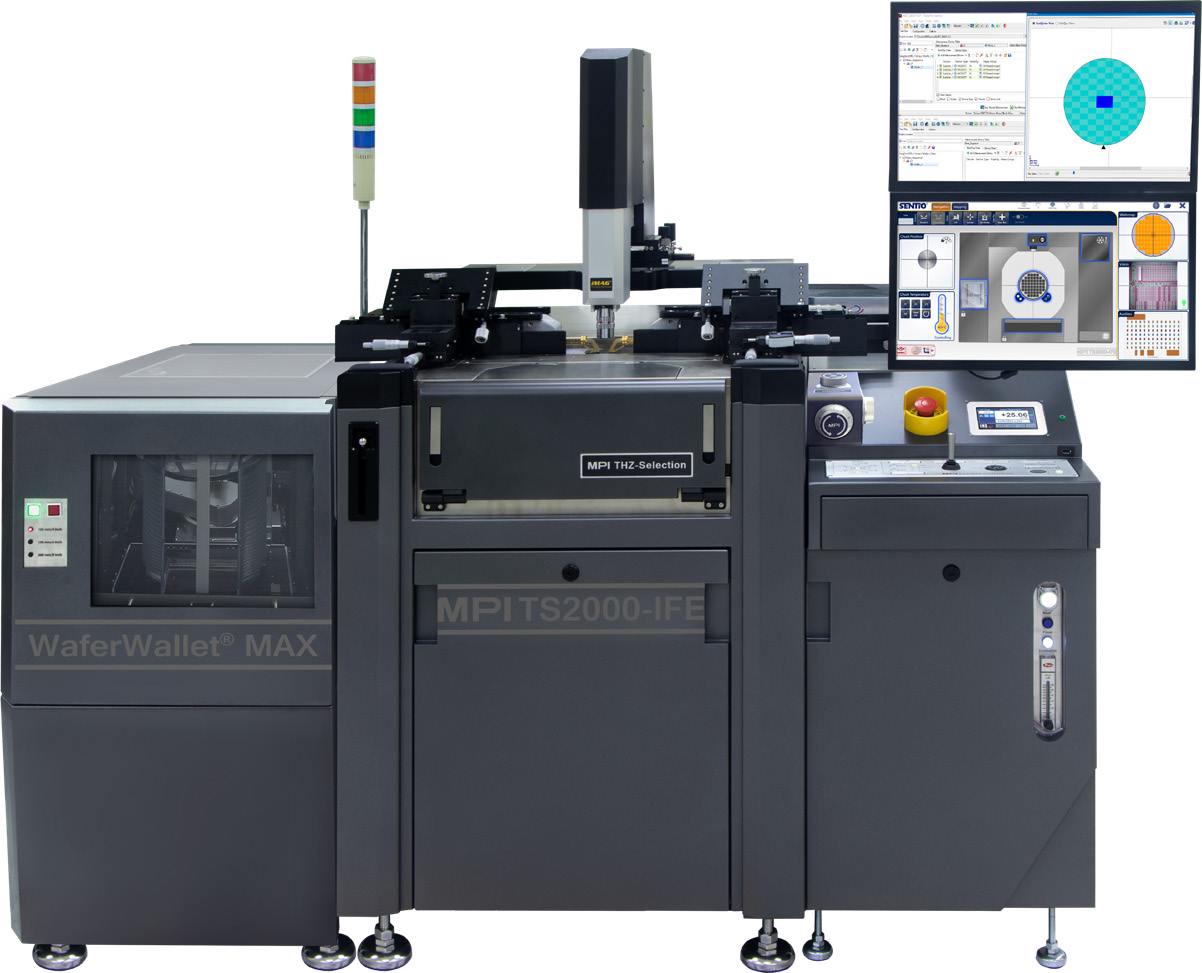

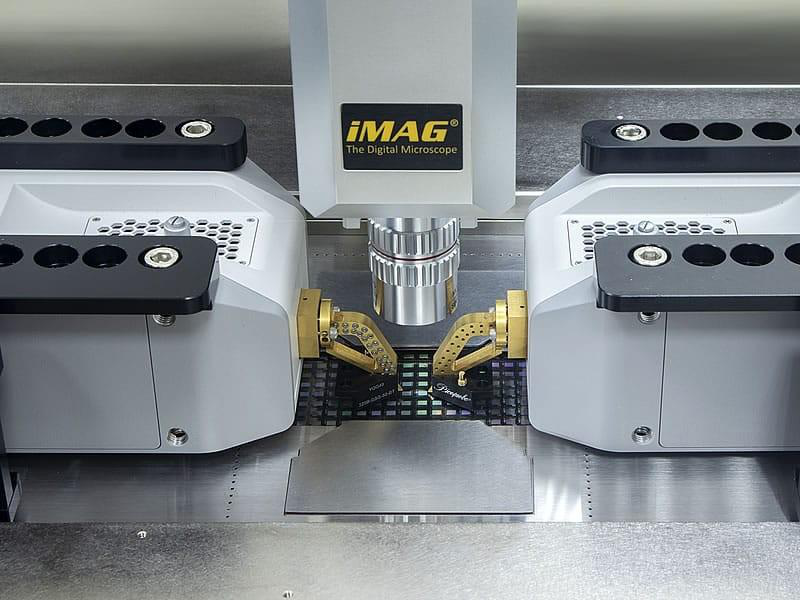

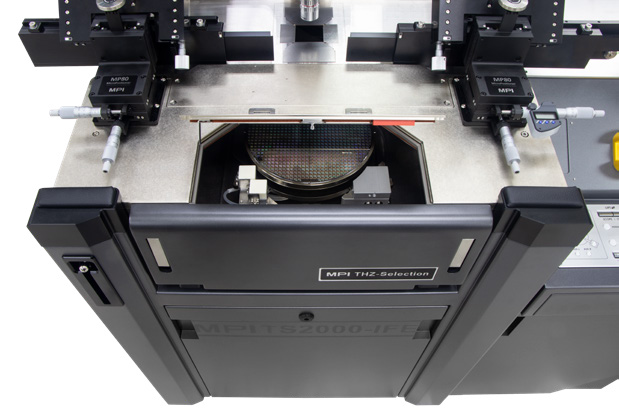

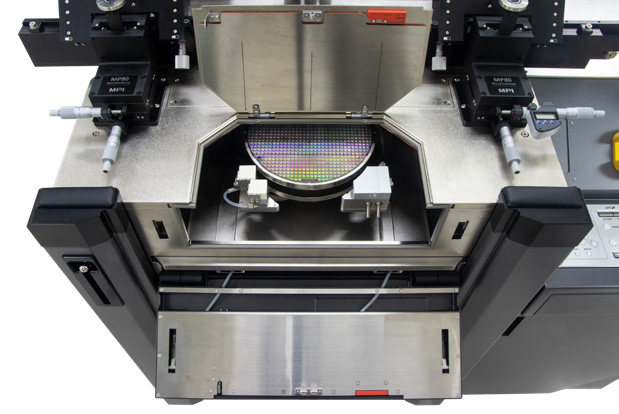

TS2000-IFE Series

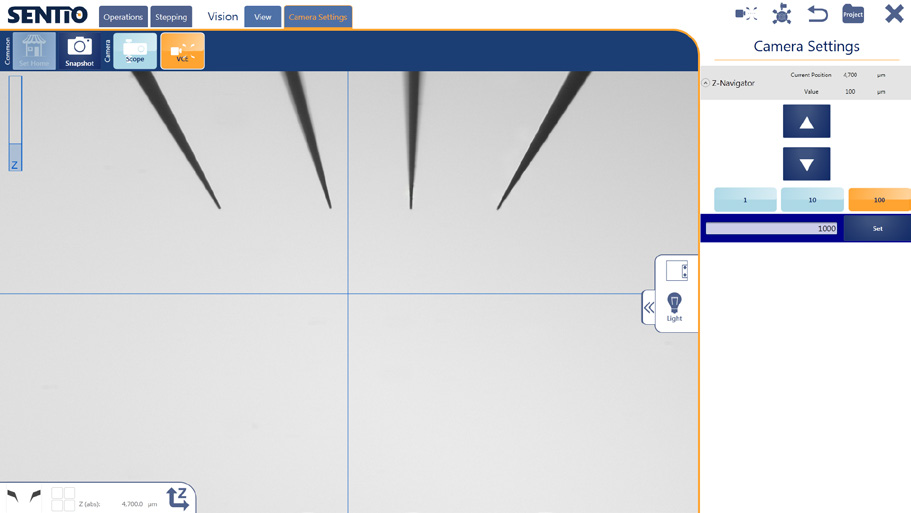

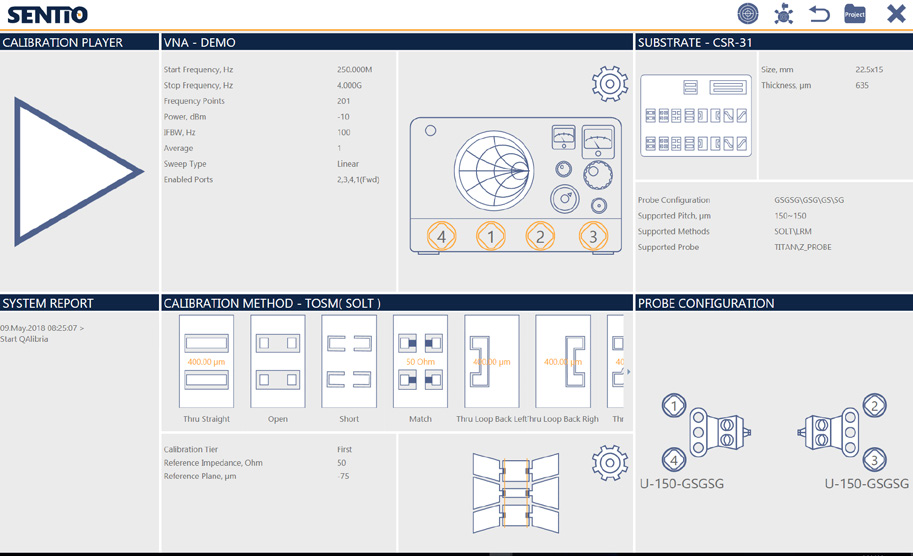

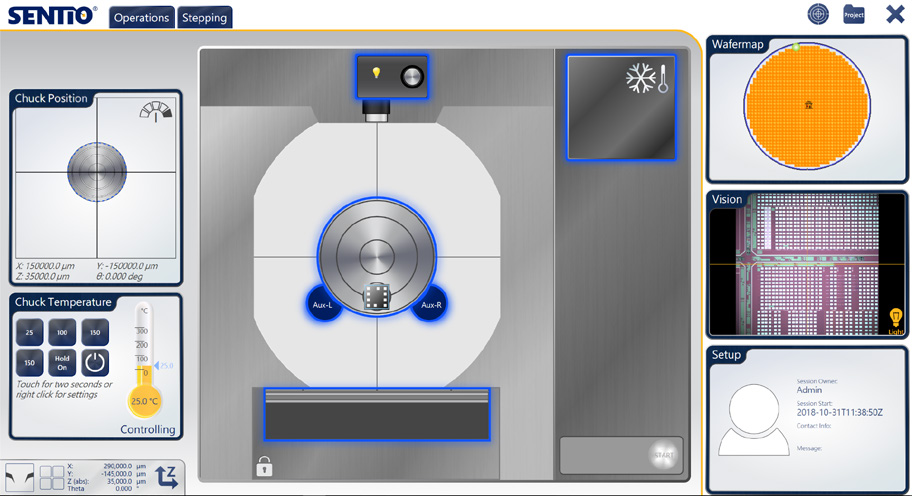

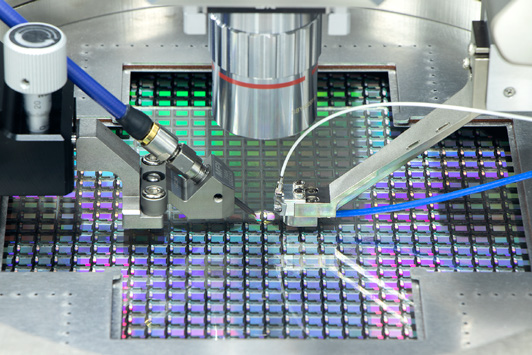

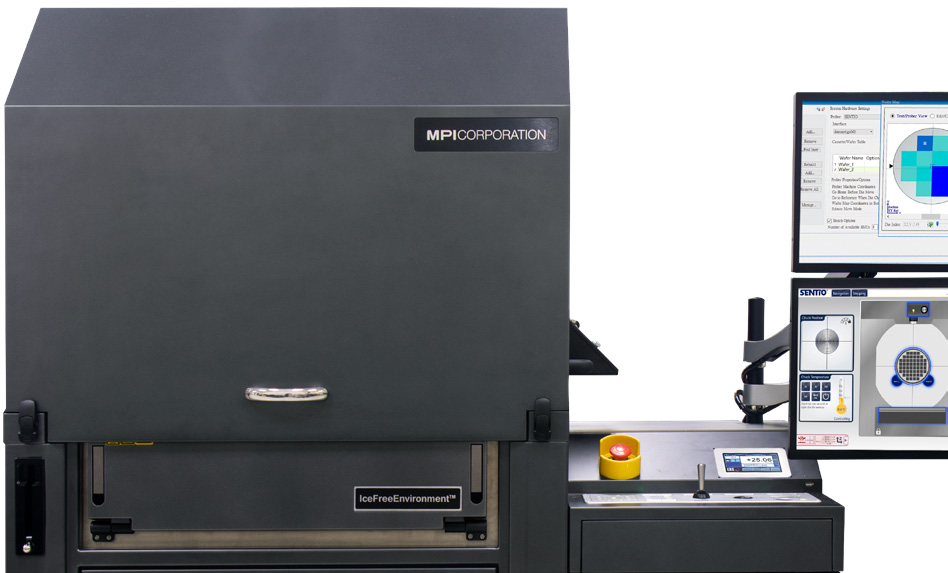

The TS2000-IFE Series is a 200 mm automated probe system designed for mmW, load-pull, SiPH, and product engineering applications. It offers advanced features such as IceFreeEnvironment™, SENTIO® software, and high precision for wafer-level reliability testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Chuck Dimensions | 220×490mm |
| Resolution | 0.2μm |
| Accuracy | ±2.0μm |
| Repeatability | ±1μm |
| XY Stage Drive | Closed-loop high precision stepper motors |
| Speed | 10mm/sec to 50mm/sec |
| Z Travel Range | 30mm |
| Z Resolution | 0.2μm |
| Z Accuracy | ±2.0μm |
| Z Repeatability | ±1.0μm |

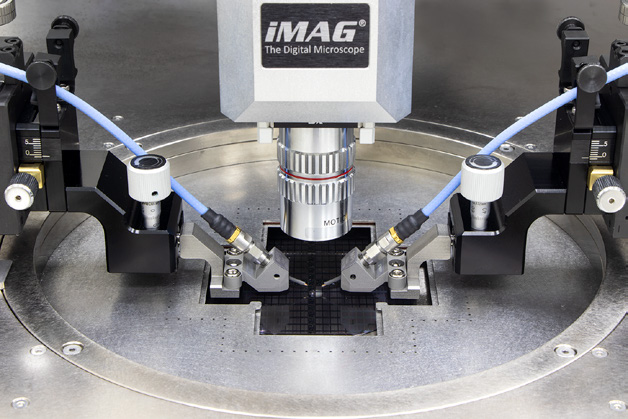

| Microscope Movement Range | 50×50mm to 200×200mm |
| Microscope Resolution | 1μm |
| Microscope Repeatability | <2μm |
| Microscope Accuracy | <5μm |
| Probe Platen Material | Nickel plated steel |

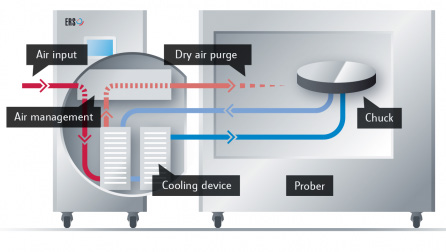

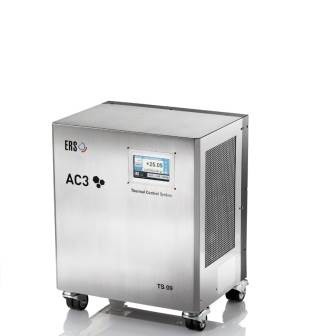

| Platen Cooling | Fully integrated CDA cooling |
| Max. MicroPositioners | 10 DC or 4 DC + 4 RF |
| Power | 100-240VAC, 50/60Hz |
| Vacuum | -0.9bar |
| Compressed Air | 6.0bar |
| System Controller CPU | Intel® Core™ i7-7700, 3.6GHz |
| System Controller RAM | DDR4 2400MHz 16GB |
| System Controller Storage | SSD 500GB |
| System Controller OS | Windows 10 Professional |
| System Dimensions | 1210×1190×1570mm |
| System Weight | 800kg |
| Temperature range | -60°C to 300°C |
| Temperature Stability | ±0.5°C |
| Temperature Accuracy | ±1°C |
| Temperature Uniformity | <±1°C |
| Electrical Isolation | >0.5TΩ at 25°C |
| Capacitance | <750pF |
