TS2000-HP

TS2000-HP

Supplier
Ybsemi-Solution
Part Number
TS2000-HP
Category
Probe Station
Origin
China

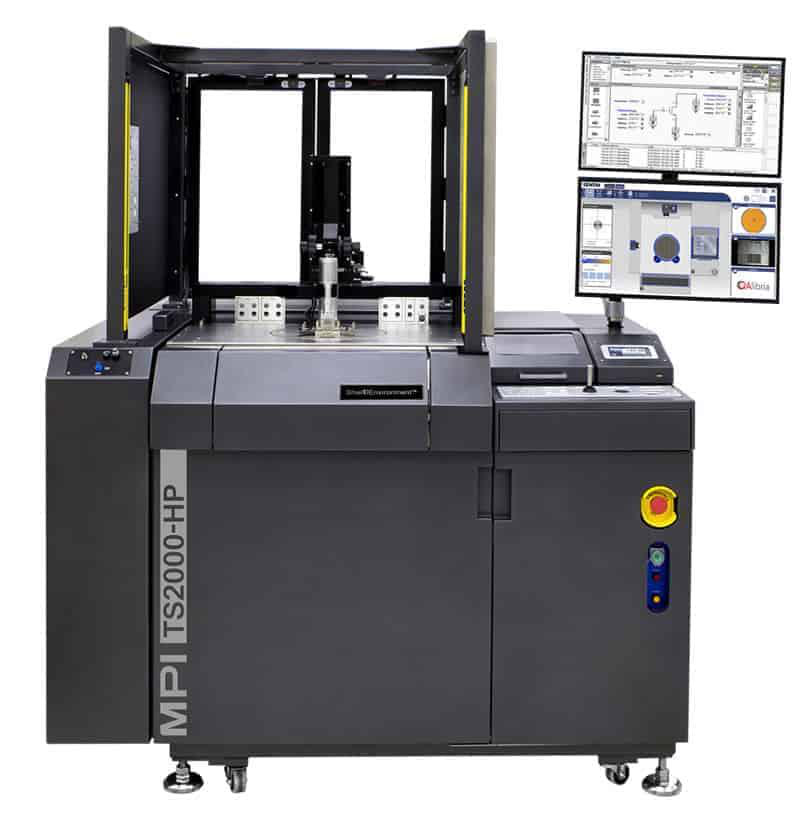

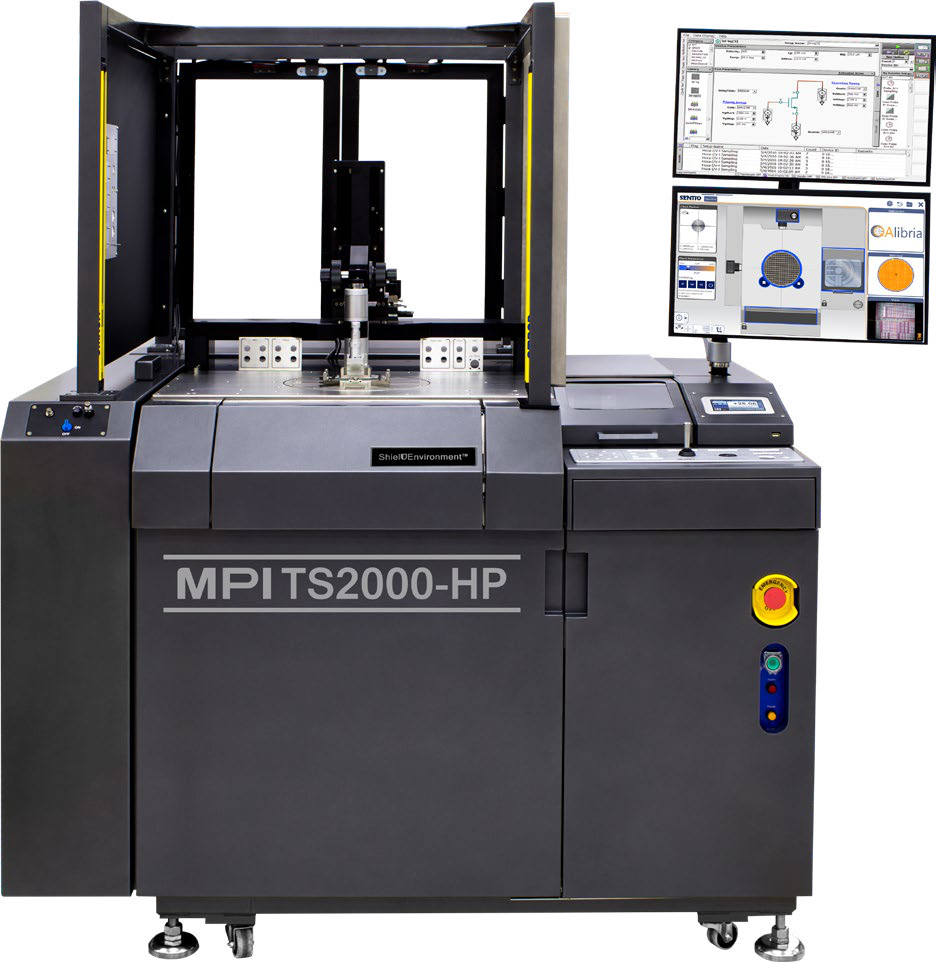

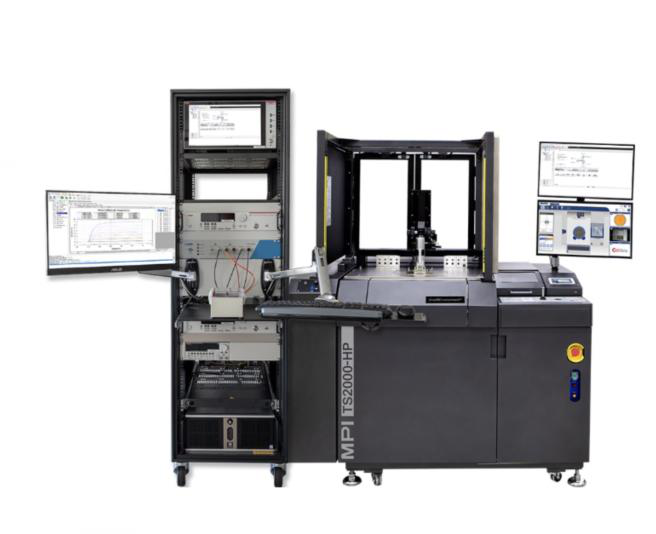

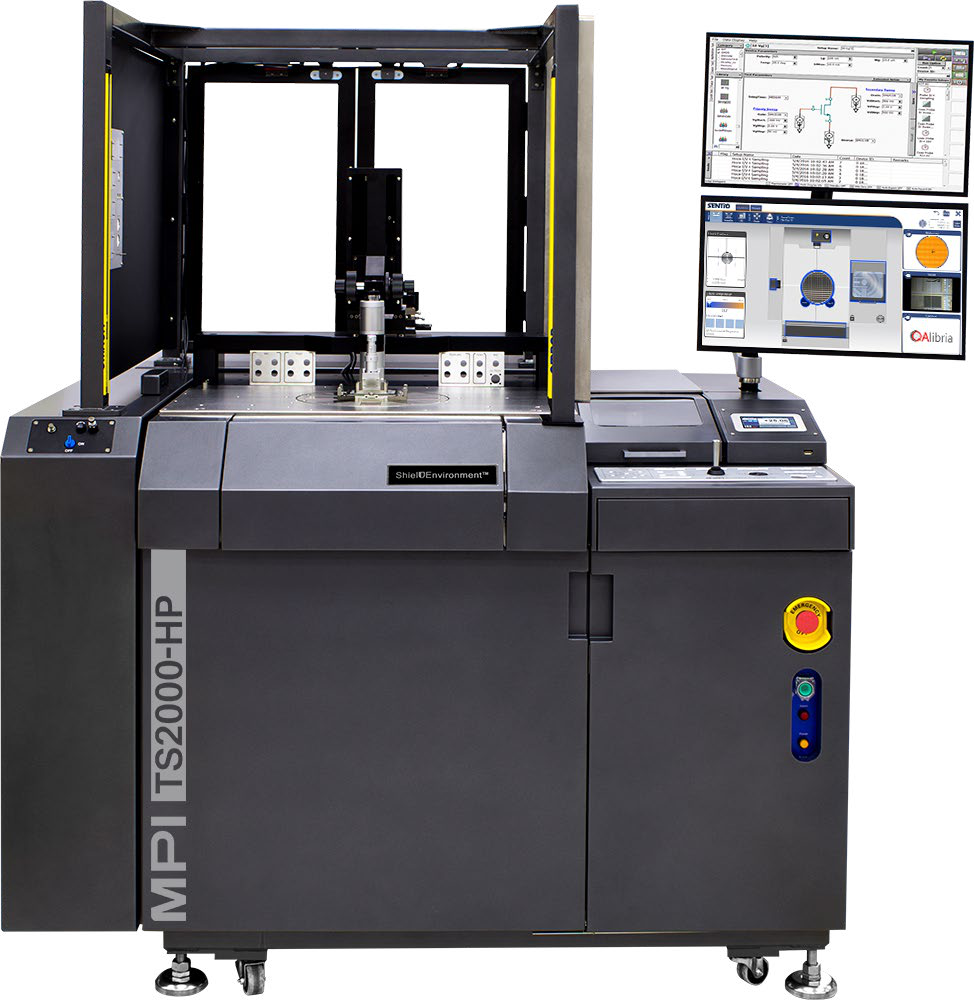

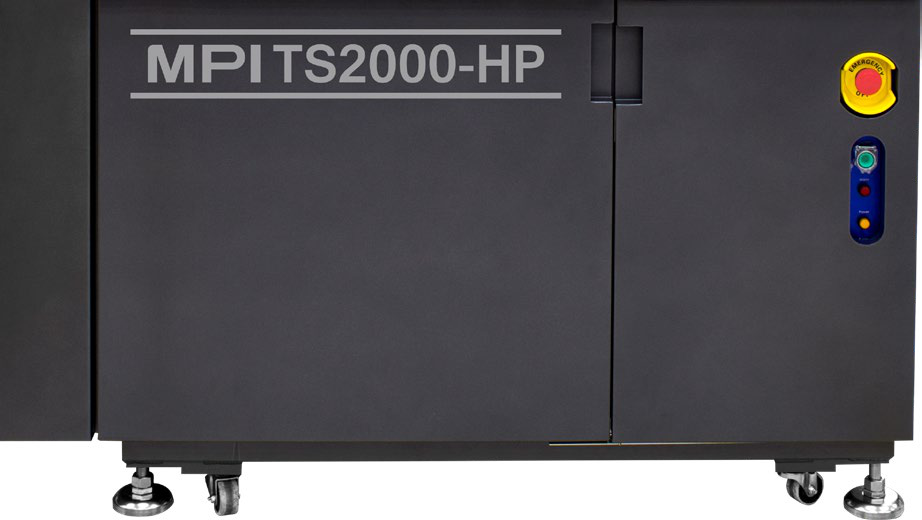

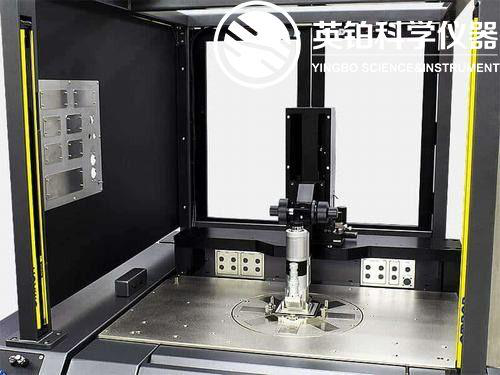

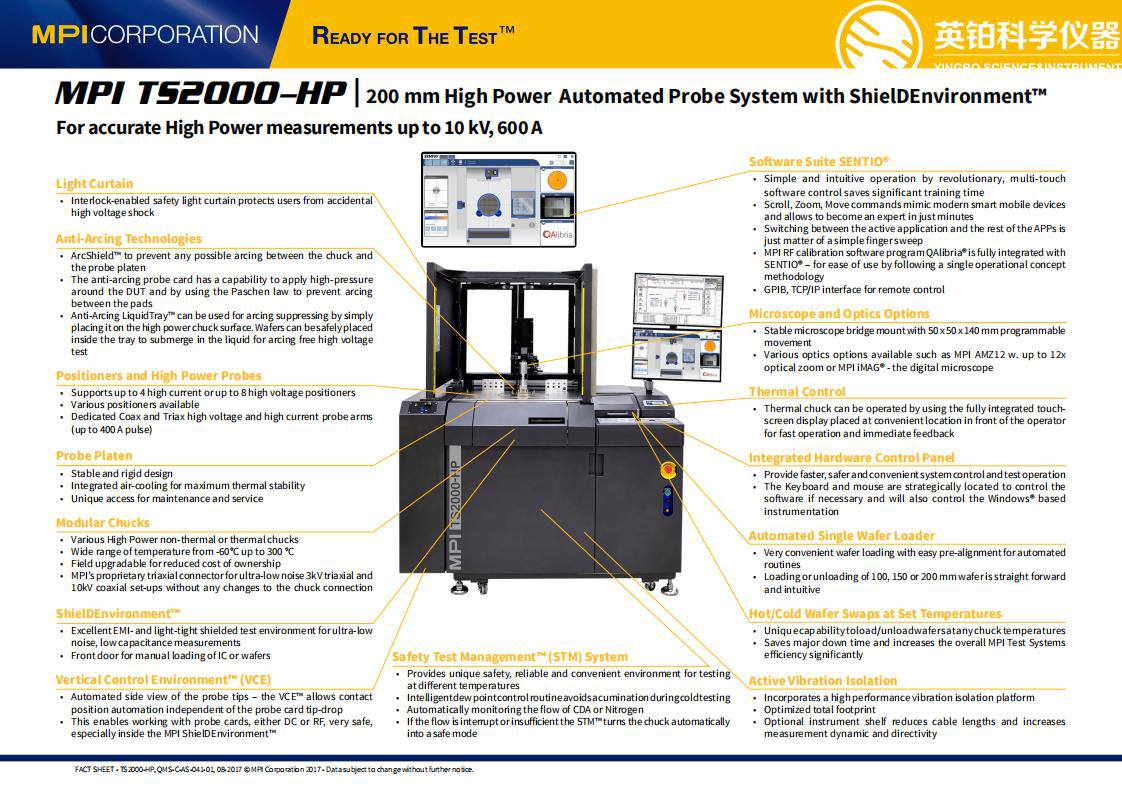

The TS2000-HP is a 200 mm automated probe system designed for high power measurements up to 10 kV and 600 A. It features advanced anti-arcing technologies, ShieldEnvironment™ for EMI/RFI shielding, and ergonomic design for safe and efficient operation.

Specification Snapshot
Video Camera Sensor Size
7.07mm x 5.3mm
Video Camera Resolution
2048x1536 pixels
Wafer Alignment Camera Sensor Size
7.07mm x 5.3mm
Wafer Alignment Camera Resolution
2048x1536 pixels
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The TS2000-HP is a 200 mm automated probe system designed for high power measurements up to 10 kV and 600 A. It features advanced anti-arcing technologies, ShieldEnvironment™ for EMI/RFI shielding, and ergonomic design for safe and efficient operation.

Specifications

ParameterValue
Chuck XY Stage Travel Range210x300mm
Chuck XY Stage Resolution0.5μm
Chuck XY Stage Accuracy±2.0μm
Chuck XY Stage Repeatability±2.0μm
Chuck XY Stage DriveHigh resolution stepper motor with linear encoder feedback system
Chuck XY Stage Speed10μm/sec to 50μm/sec
Chuck Z Stage Travel Range50mm
Chuck Z Stage Resolution0.2μm
Chuck Z Stage Accuracy±2.0μm
Chuck Z Stage Repeatability±1.0μm
Chuck Z Stage DriveHigh resolution stepper motor with integrated pin drive system
Chuck Z Stage Speed10μm/sec to 4μm/sec
Chuck Theta Stage Travel Range±6.0°
Chuck Theta Stage Resolution0.0004°
Chuck Theta Stage Accuracy<2.0μm
Chuck Theta Stage Repeatability<1.0μm
Chuck Theta Stage DriveHigh resolution stepper motor with linear encoder feedback system

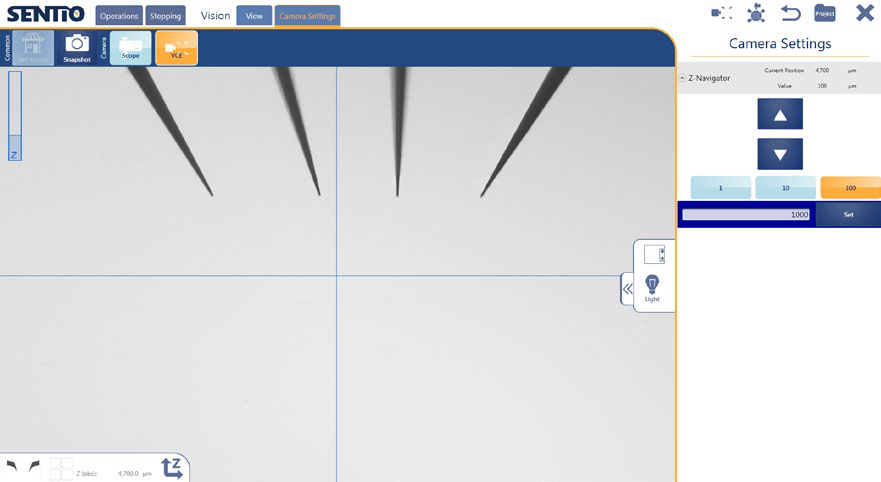

Video Camera Sensor Type1/1.8'' mono CCD
Video Camera Sensor Size7.07mm x 5.3mm
Video Camera Pixels3MP
Video Camera Resolution2048x1536 pixels
Wafer Alignment Camera Sensor Type1/1.8'' color CCD
Wafer Alignment Camera Sensor Size7.07mm x 5.3mm
Wafer Alignment Camera Pixels3MP
Wafer Alignment Camera Resolution2048x1536 pixels

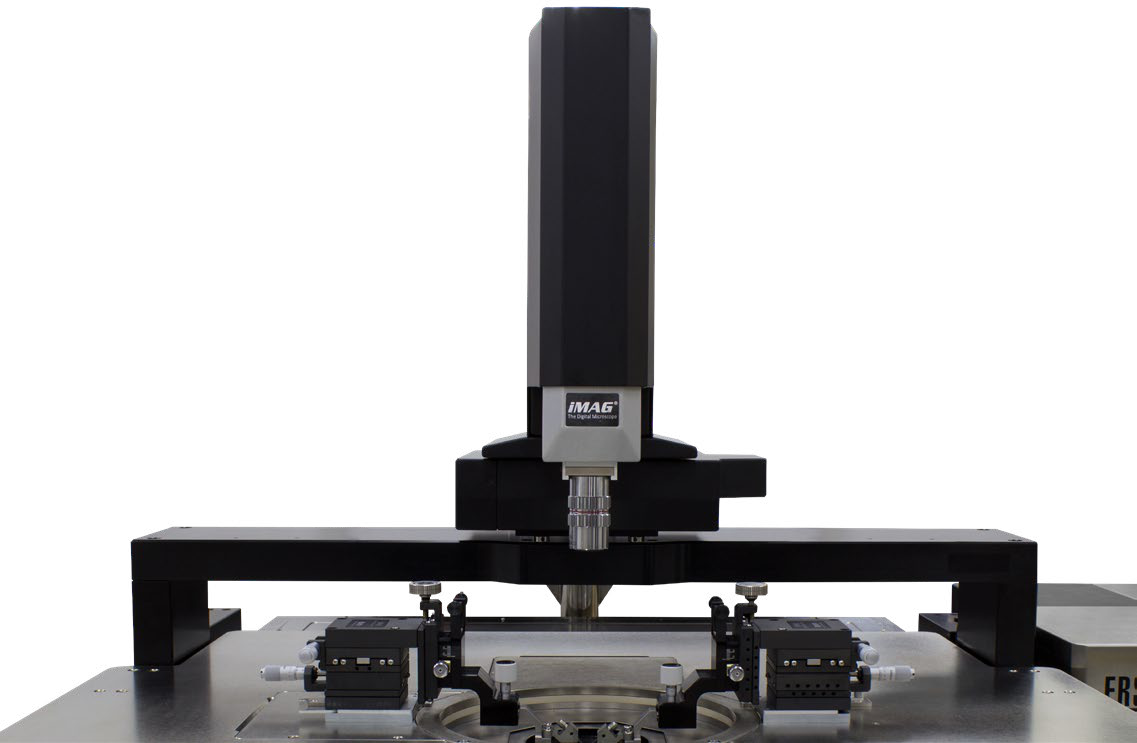

Microscope XYZ Travel Range50x50mm
Microscope XYZ Resolution1μm
Microscope XYZ Repeatability<2μm
Microscope XYZ Accuracy<5μm
Microscope Z Travel Range140mm
Microscope Z Resolution0.05μm
Microscope Z Repeatability<2μm
Microscope Z Accuracy<4μm

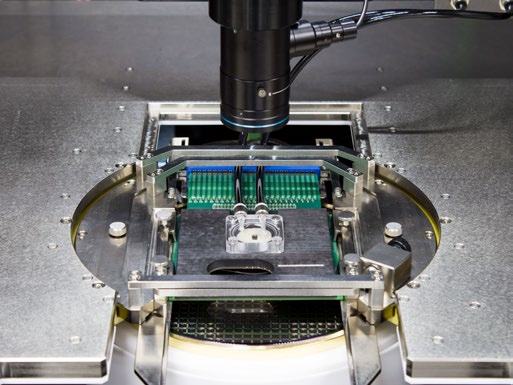

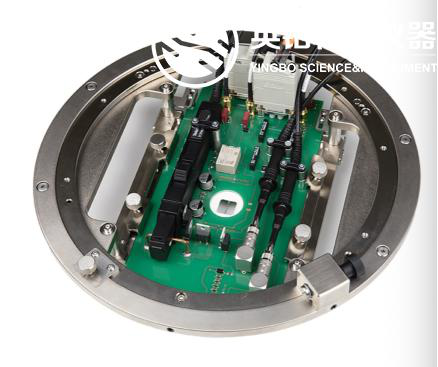

Probe Platen MaterialNickel plated steel
Probe Platen Heightmin. 5mm
Probe Platen FeatureIntegrated Air-Cool platen control for thermal stability

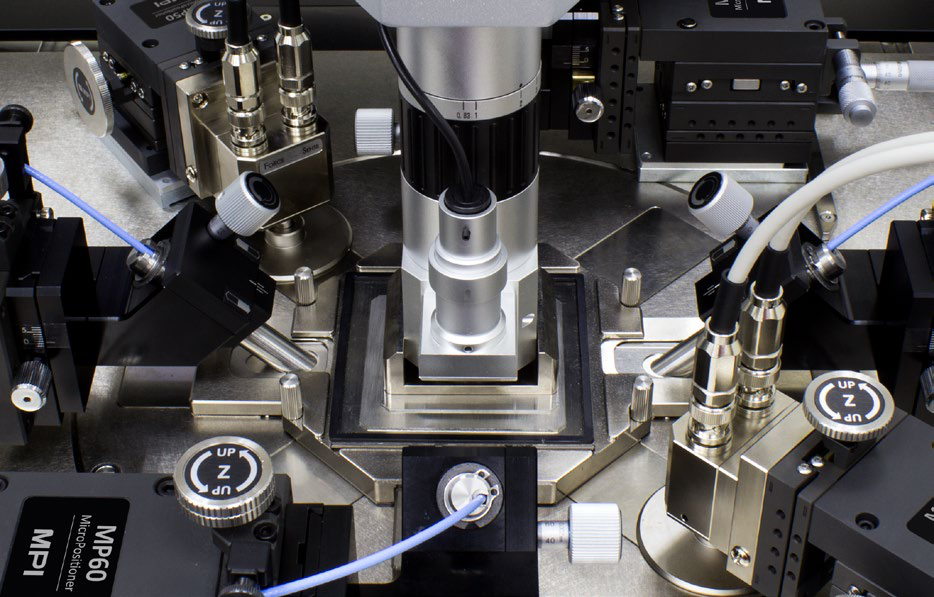

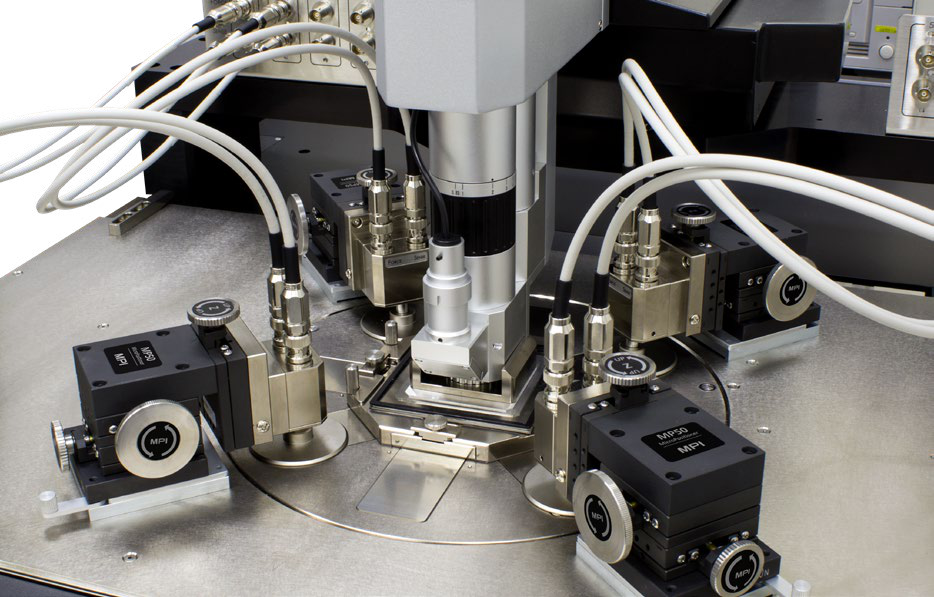

Probe Platen Max. MicroPositioners8x DC or 4x DC + 2x RF or 2x DC + 4x RF

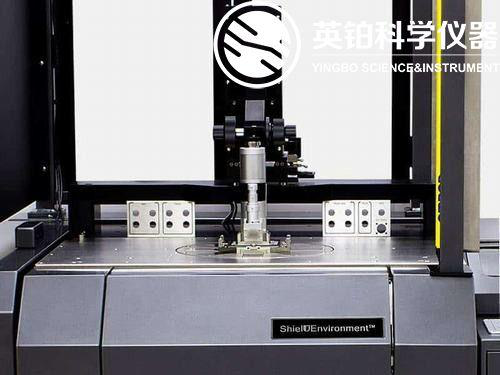

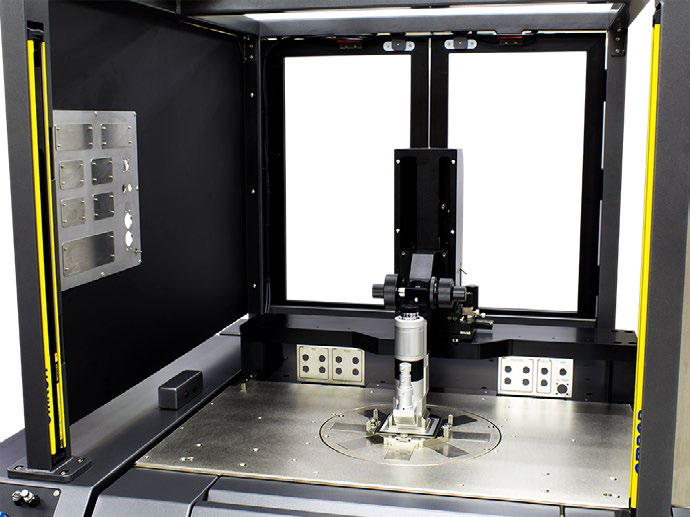

ShieldEnvironment EMI Shielding≥30dB @ 1kHz to 1MHz
ShieldEnvironment Light Attenuation≥130dB
ShieldEnvironment Spectral Noise Floor≤-180dBVrms/rtHz @ ≤1MHz
ShieldEnvironment System AC Noise≤5mVp-p @ ≤1GHz

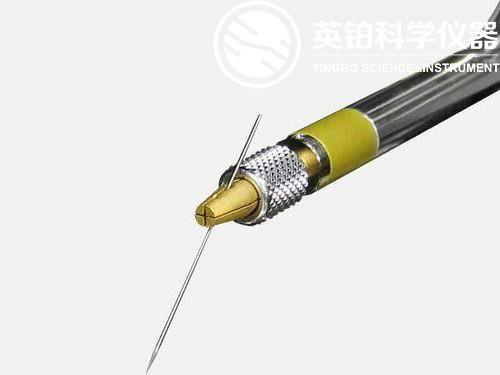

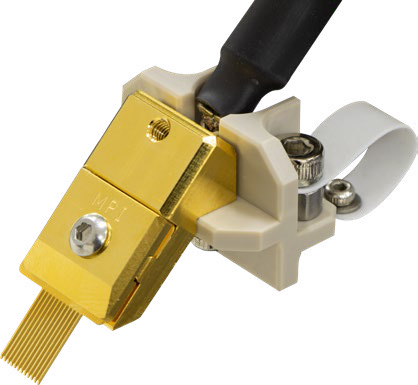

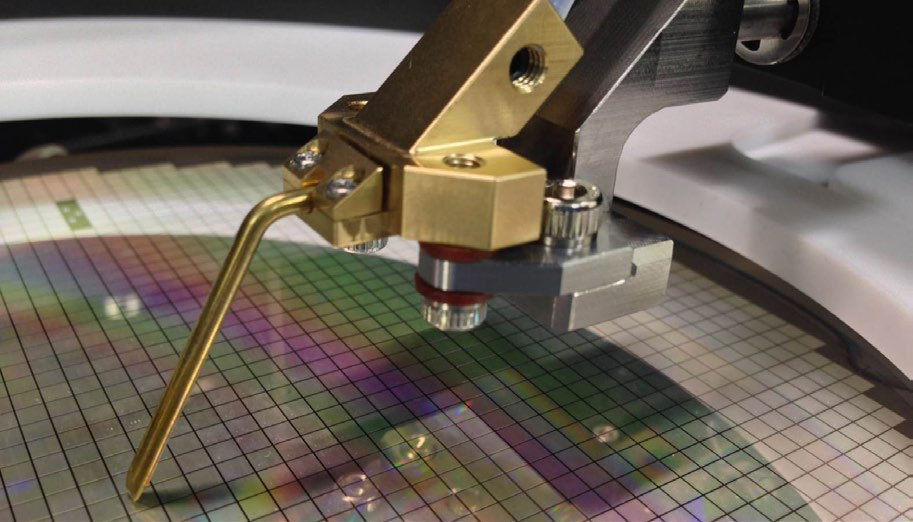

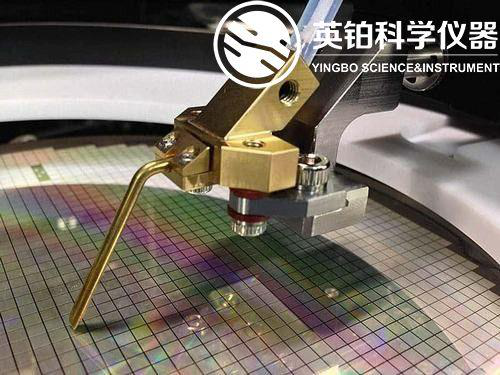

High Current Probe Max Current40A to 250A
High Current Probe Max Voltage500V to 10kV
High Current Probe Residual Resistance≤5mΩ to ≤1mΩ
High Current Probe Leakage≤1pA
High Current Probe Connector OptionsBanana plug or BNC
High Current Probe Replaceable TipYes
High Current Probe Pitch350μm to 650μm

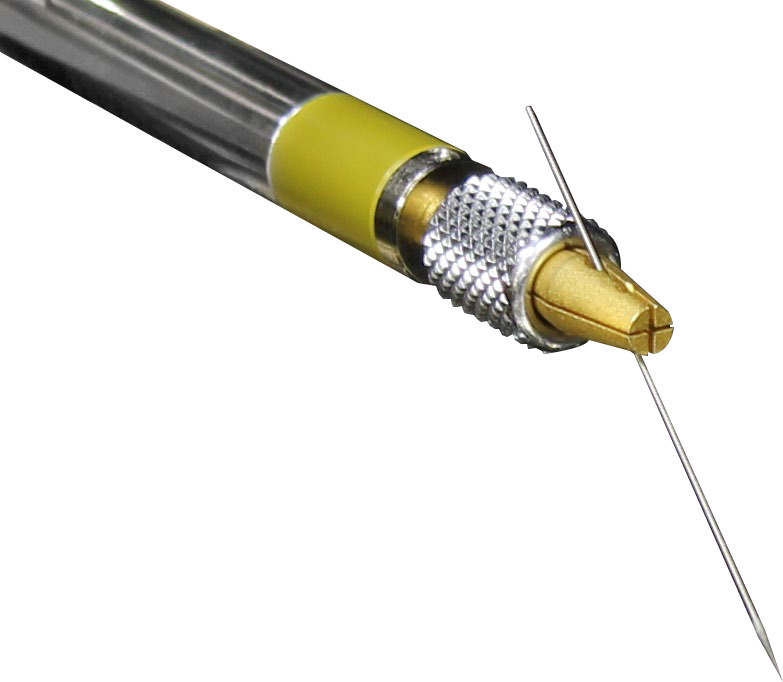

High Voltage Probe Max Current2A
High Voltage Probe Max Voltage3kV to 10kV
High Voltage Probe Leakage≤600pA to ≤35TΩ

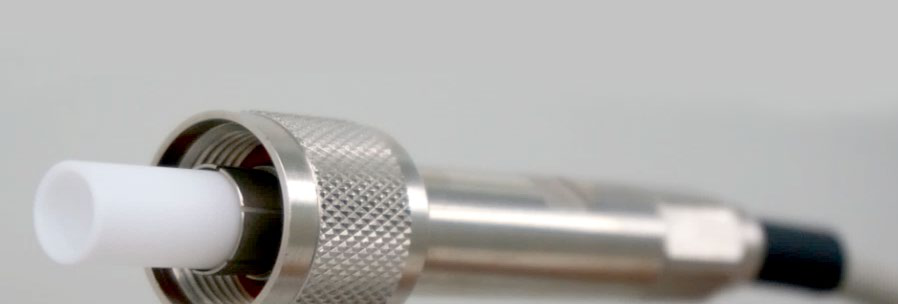

High Voltage Probe Connector OptionsHV triaxial or banana plug
High Voltage Probe Replaceable TipYes
High Voltage Probe PitchSingle needle
Ultra High Power Probe Max Current20A to 250A
Ultra High Power Probe Max Voltage10kV
Ultra High Power Probe Residual Resistance≤5mΩ to ≤1mΩ
Ultra High Power Probe Connector OptionsBanana
Ultra High Power Probe Replaceable TipYes
Ultra High Power Probe Tip Width250μm
Ultra High Power Probe Pitch650μm

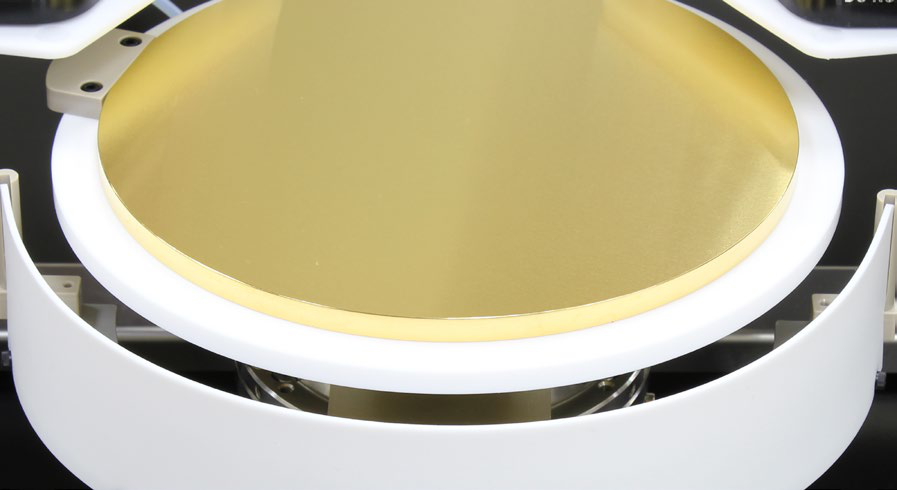

Non-Thermal Chuck Diameter210mm
Non-Thermal Chuck MaterialGold plated aluminum
Non-Thermal Chuck Surface Planarity≤5μm
Non-Thermal Chuck Rigidity<15μm/10N @edge
Non-Thermal Chuck Electrical Specification Chuck Isolation≥30TΩ
Non-Thermal Chuck Electrical Specification Force to Guard≥30TΩ
Non-Thermal Chuck Electrical Specification Guard to Shield≥500GΩ
Non-Thermal Chuck Electrical Specification Force to Shield≥100GΩ

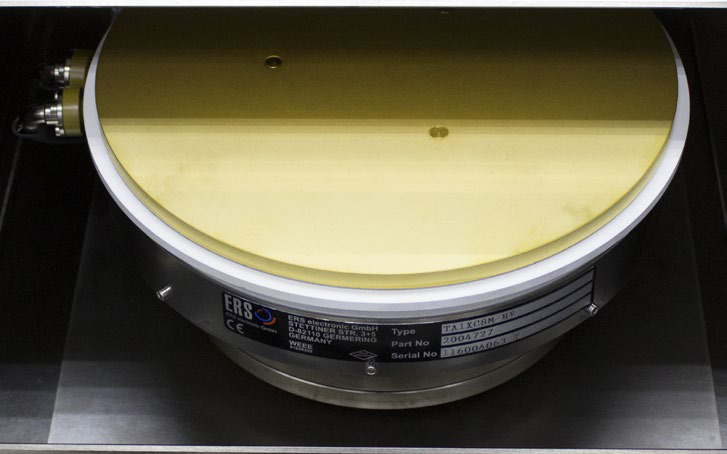

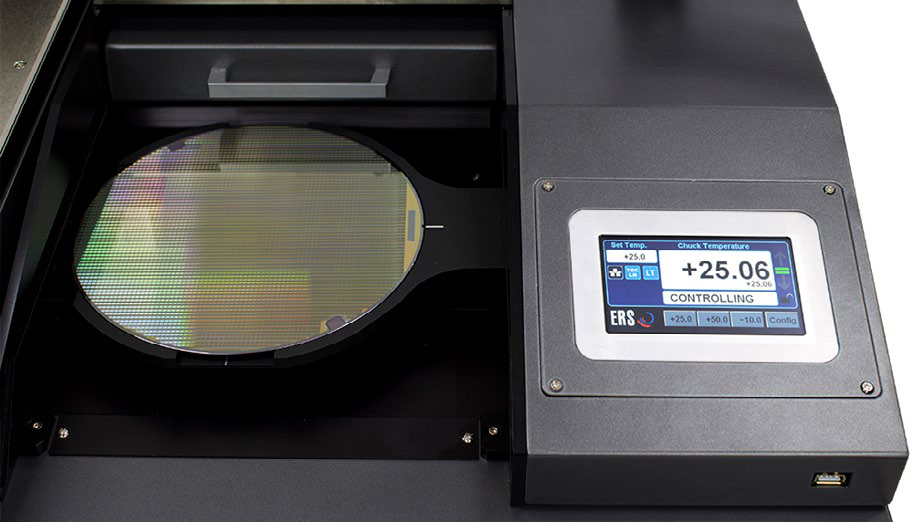

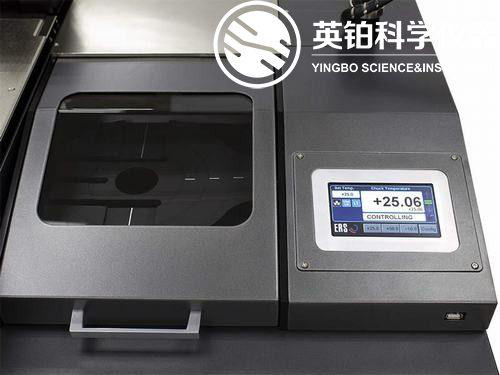

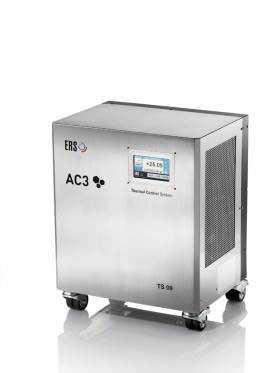

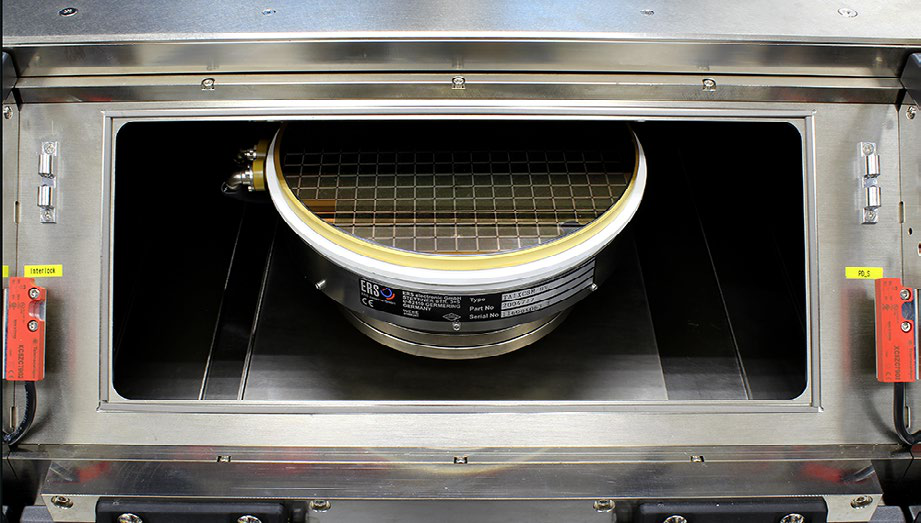

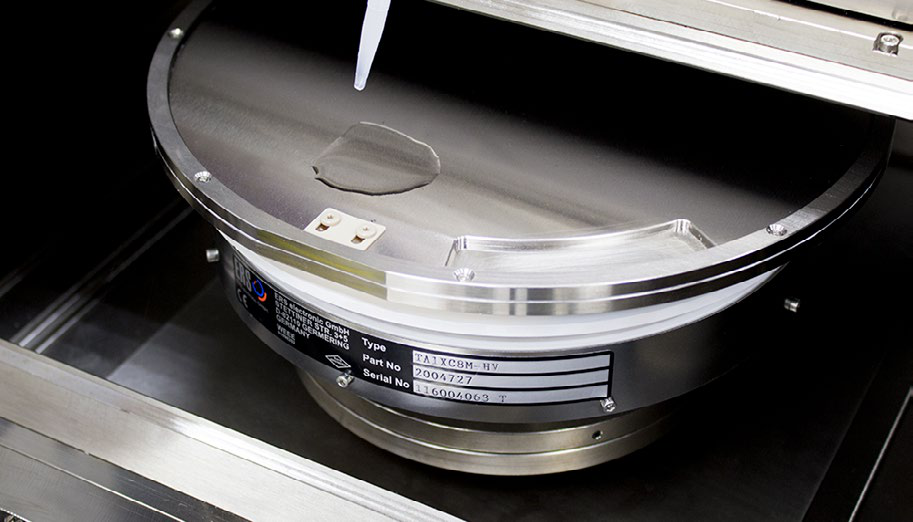

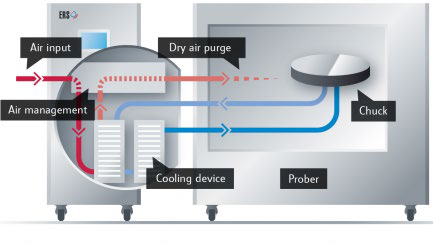

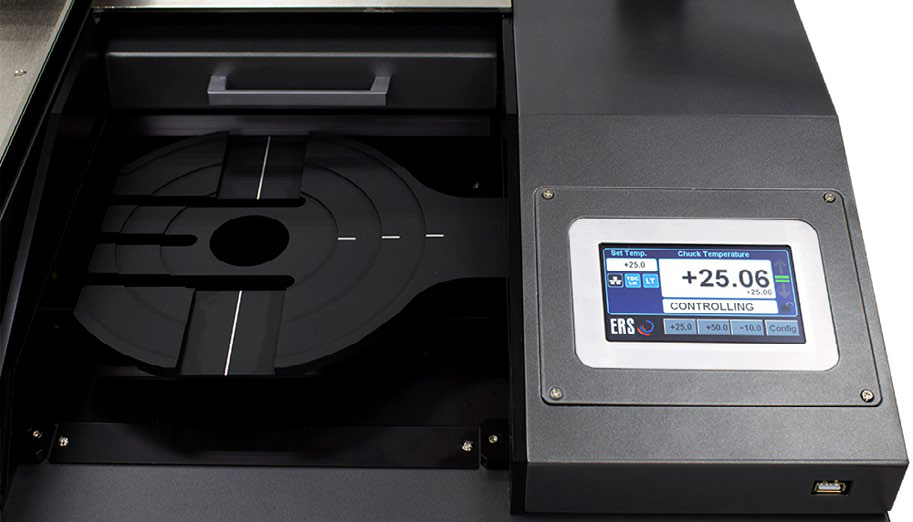

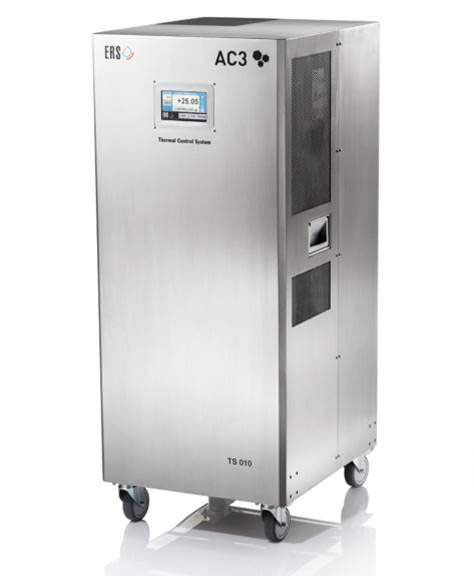

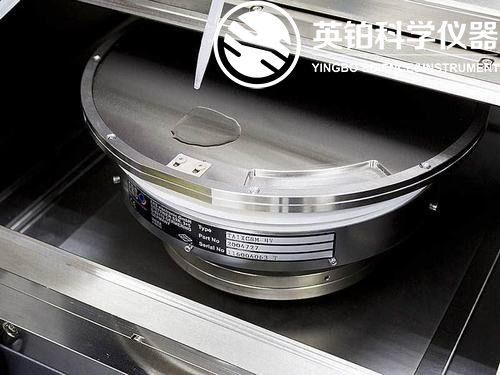

High Power Thermal Chuck Temperature Range-60°C to 300°C
High Power Thermal Chuck Temperature Stability±0.08°C
High Power Thermal Chuck Temperature Accuracy0.1°C
High Power Thermal Chuck Temperature Uniformity<±0.5°C
High Power Thermal Chuck Surface Flatness<±10μm
High Power Thermal Chuck Heating Rates25°C to 300°C <40min
High Power Thermal Chuck Cooling Rates300°C to 25°C <40min
High Power Thermal Chuck Max Voltage10kV DC

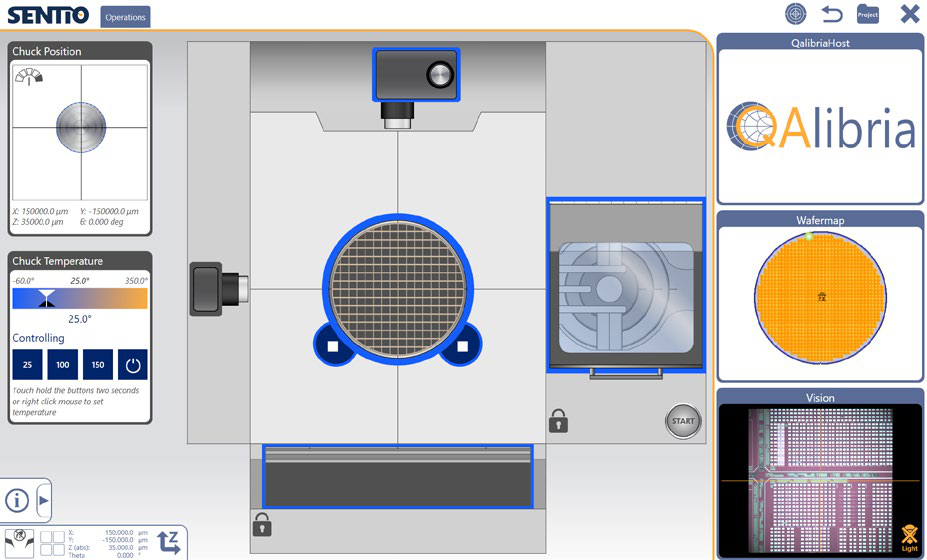

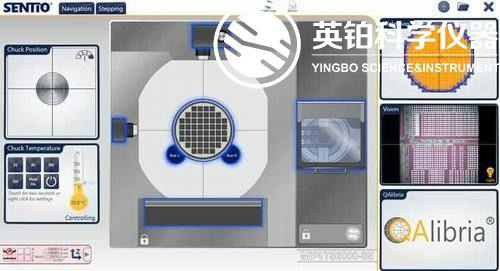

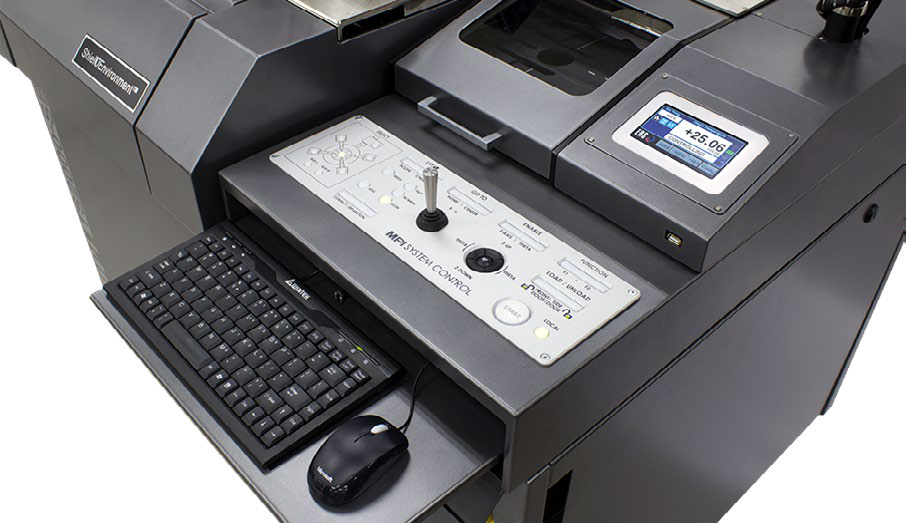

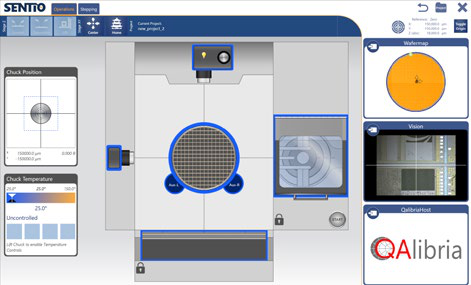

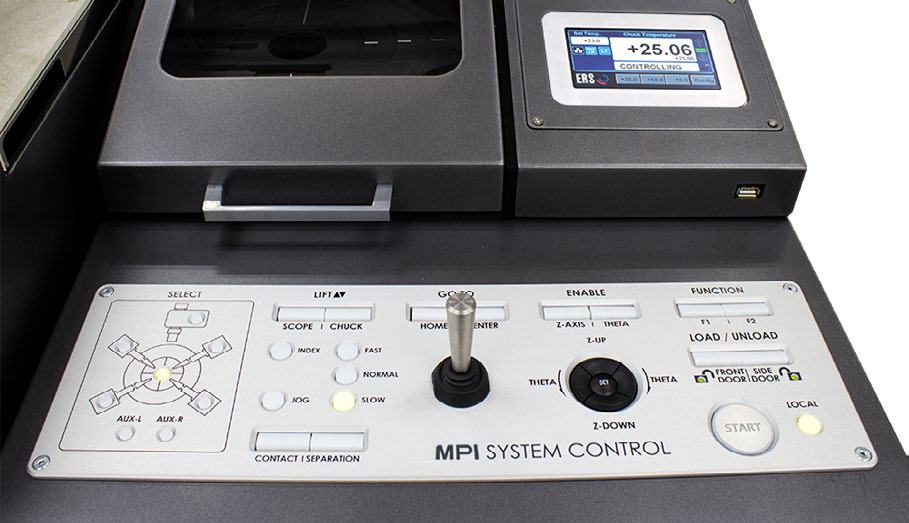

System Controller CPUIntel Core i7-7700, 3.6GHz, 8M Cache
System Controller RAMDDR4 2400MHz 16GB
System Controller Operating SystemWindows 10 Professional
System Controller Power460W
System Controller StorageSSD 500GB
System Controller LANOne internal and one external TCP/IP ports
System Controller USB PortsInternal (on PC) x3, external x1
System Controller GPIB InterfaceOptional
System Dimensions1420x1140x1740mm
System Weight700kg

Applications

1. High voltage and high current testing 2. Wafer-level reliability testing 3. Semiconductor device characterization

Key Features

1. Advanced anti-arcing technologies 2. ShieldEnvironment™ for EMI/RFI shielding 3. Ergonomic design for safe operation 4. High precision and repeatability 5. Integrated active vibration isolation
