OPUS3 SE

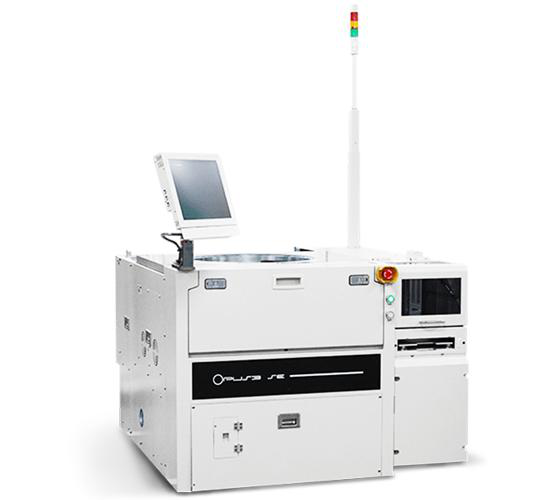

OPUS3 SE is a high-precision wafer probing system designed for semiconductor testing applications. It supports 6-inch and 8-inch wafers and offers tri-temperature control for versatile testing environments.
Request a Quote
Download Datasheet
Chat
Overview
OPUS3 SE is a high-precision wafer probing system designed for semiconductor testing applications. It supports 6-inch and 8-inch wafers and offers tri-temperature control for versatile testing environments.
Specifications

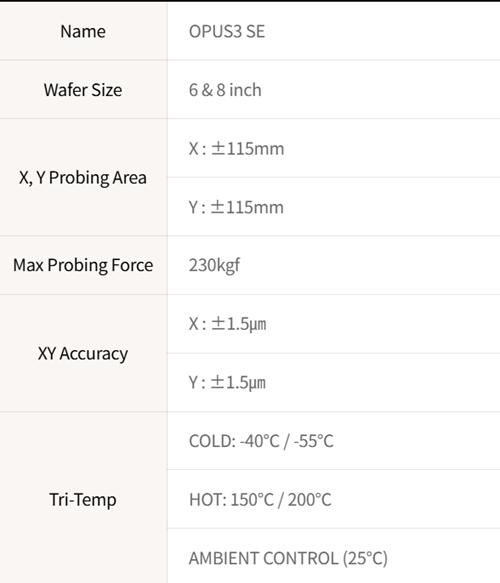

| Parameter | Value |
|---|---|
| Wafer Size | 6&8inch |
| X,Y Probing Area | X:±115mm, Y:±115mm |
| Max Probing Force | 230kgf |
| XY Accuracy | X:±1.5μm, Y:±1.5μm |
| Tri-Temp | COLD:-40°C/-55°C, HOT:150°C/200°C, AMBIENT CONTROL:25°C |
Applications
1. Semiconductor wafer testing 2. High-precision probing 3. Tri-temperature testing environments
Key Features
1. High precision with ±1.5μm accuracy 2. Tri-temperature control for versatile testing 3. Supports 6-inch and 8-inch wafers
Datasheet
Product Datasheet
PDF
