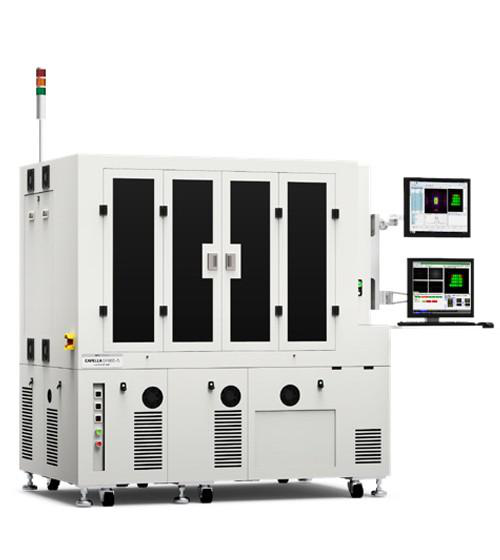

DP600 Series
The DP600 Series is a high-performance optical testing and sorting system designed for VCSELs, EELs, PDs, LEDs, and other packaged devices.
Request a Quote
Download Datasheet
Chat
Overview
The DP600 Series is a high-performance optical testing and sorting system designed for VCSELs, EELs, PDs, LEDs, and other packaged devices.

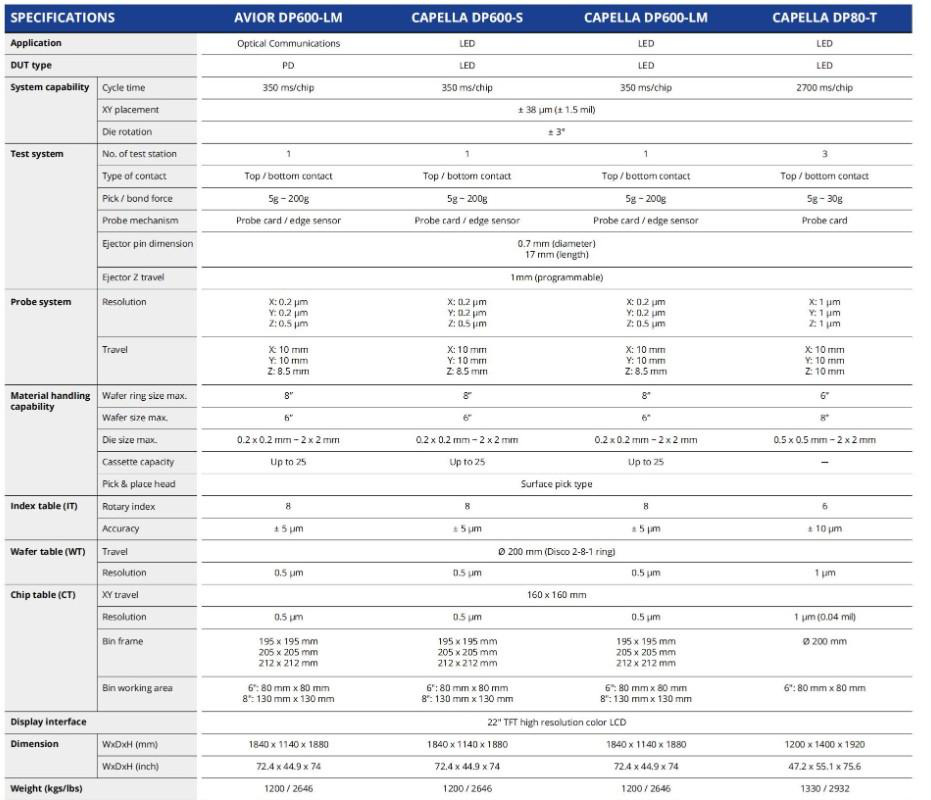

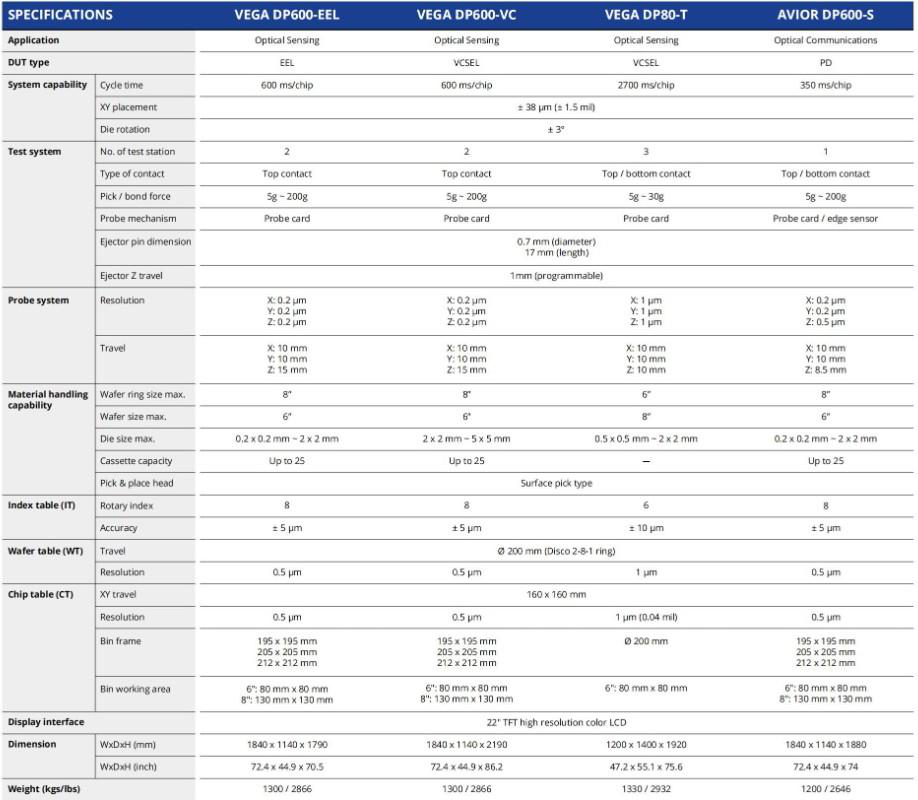

Specifications
| Parameter | Value |
|---|---|

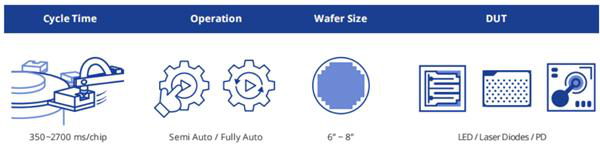

| Cycle Time | 350–2700ms/chip |
| Operation | Semi Auto / Fully Auto |
| Wafer Size | 6"–8" |
| DUT | LED / Laser Diodes / PD |
| XY Placement | ±38μm (±1.5mil) |
| Die Rotation | ±3° |
| No. of Test Station | 1–3 |
| Type of Contact | Top / Bottom Contact |
| Pick/Bond Force | 5g–200g |
| Probe Mechanism | Probe Card / Edge Sensor |
| Ejector Pin Dimension | 0.7mm (diameter), 17mm (length) |
| Ejector Z Travel | 1mm (programmable) |
| Probe System Resolution X | 0.2μm |
| Probe System Resolution Y | 0.2μm |
| Probe System Resolution Z | 0.5μm |
| Probe System Travel X | 10mm |
| Probe System Travel Y | 10mm |
| Probe System Travel Z | 8.5–15mm |
| Wafer Ring Size Max | 8" |
| Wafer Size Max | 8" |
| Die Size Max | 0.2×0.2mm–2×2mm |
| Cassette Capacity | Up to 25 |
| Pick & Place Head | Surface Pick Type |
| Rotary Index Accuracy | ±5μm |
| Wafer Table Resolution | 0.5μm |
| Chip Table XY Travel | 160×160mm |
| Chip Table Resolution | 0.5μm |
| Bin Frame | 195×195mm, 212×212mm |
| Bin Working Area | 8": 130×130mm, 6": 110×110mm |
| Display Interface | 12" TFT high resolution color LCD |

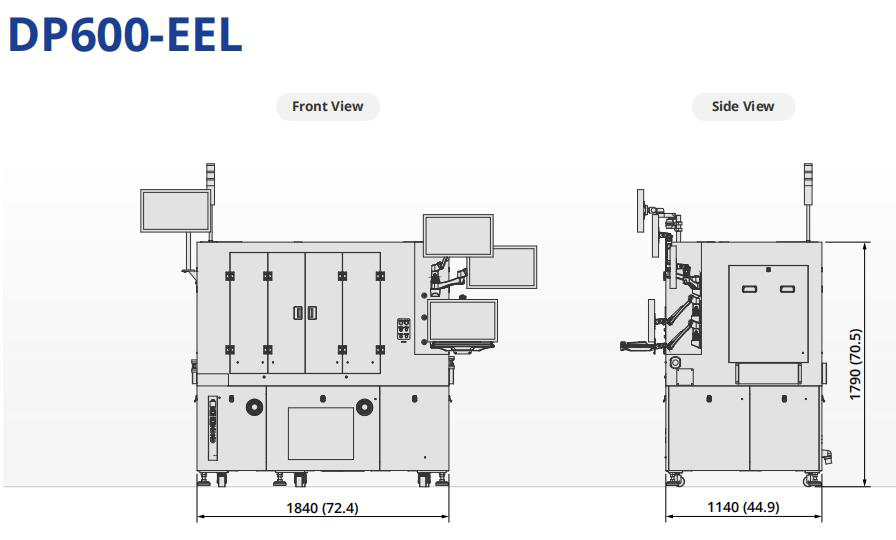

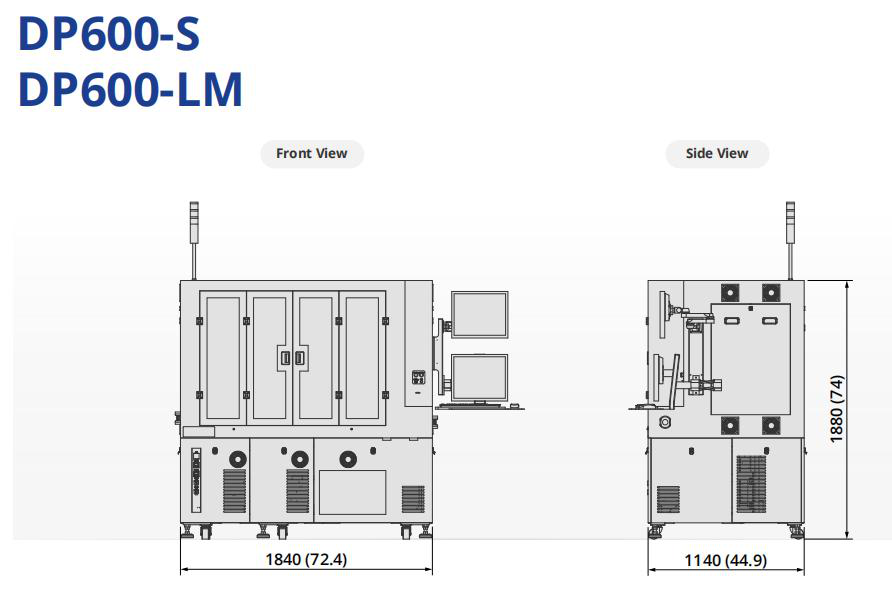

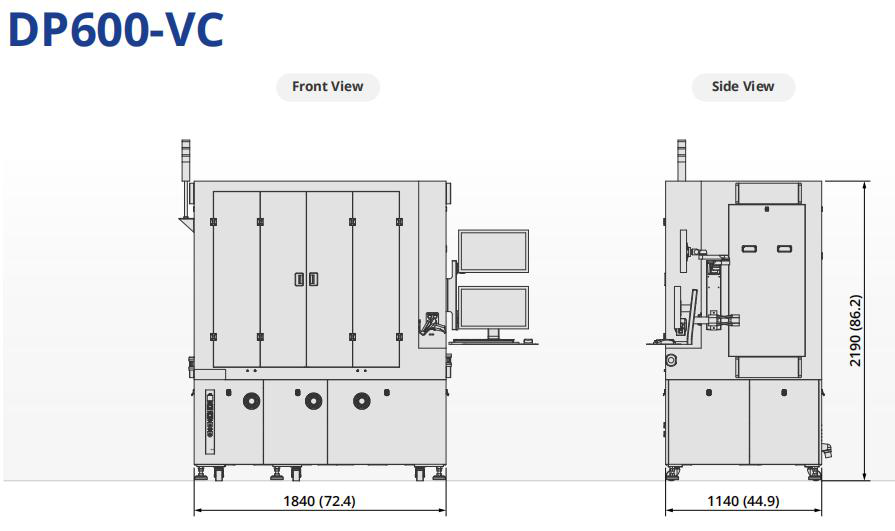

| Dimension WxDxH (mm) | 1840×1140×1880 |
| Dimension WxDxH (inch) | 72.4×44.9×74 |
| Weight | 1330kg/2932lbs |
Applications
1. Optical sensing 2. Optical communications 3. LED testing

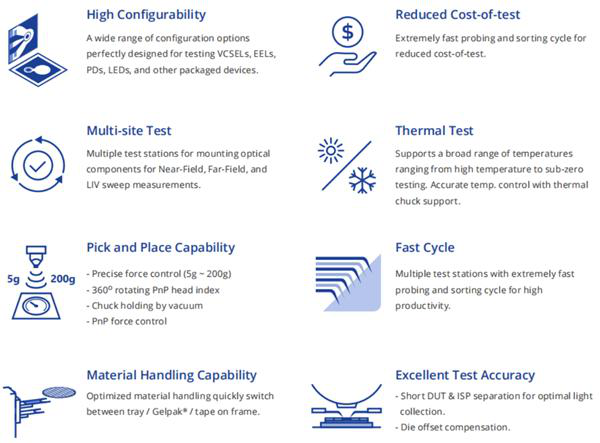

Key Features
1. High configurability for testing VCSELs, EELs, PDs, LEDs, and other packaged devices 2. Multi-site test stations for Near-Field, Far-Field, and LIV sweep measurements 3. Precise pick and place capability with force control from 5g to 200g 4. Optimized material handling for tray/Gelpak/tape on frame 5. Broad thermal test range from high temperature to sub-zero 6. Fast cycle for high productivity 7. Excellent test accuracy with short DUT & ISP separation
Datasheet
Product Datasheet
PDF
