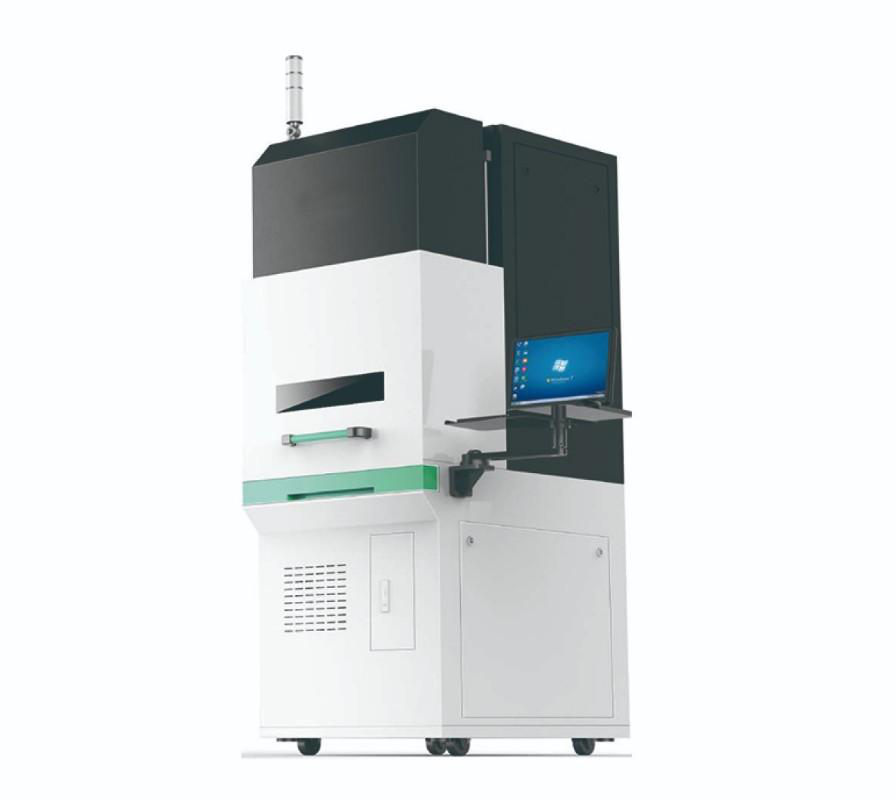

Fiber Laser IPG 20W MOPA

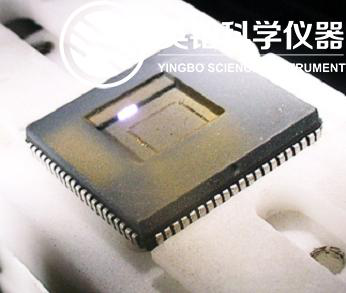

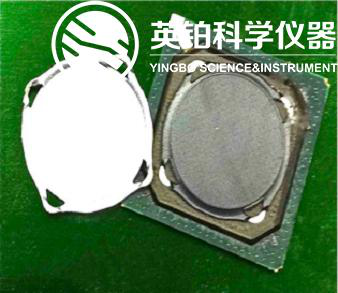

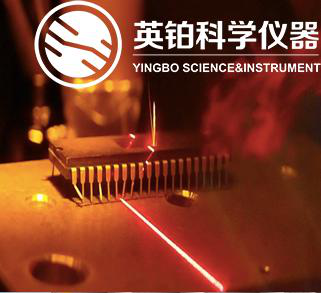

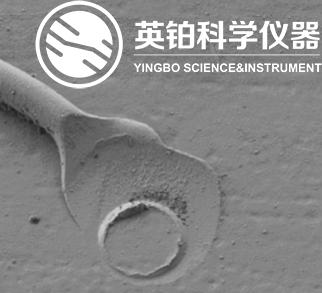

The Fiber Laser IPG 20W MOPA is a high-performance laser system designed for precision material processing applications. It offers advanced features such as adjustable pulse width, high scanning speed, and compatibility with various interfaces.
Save to Favorites
Overview
Specifications

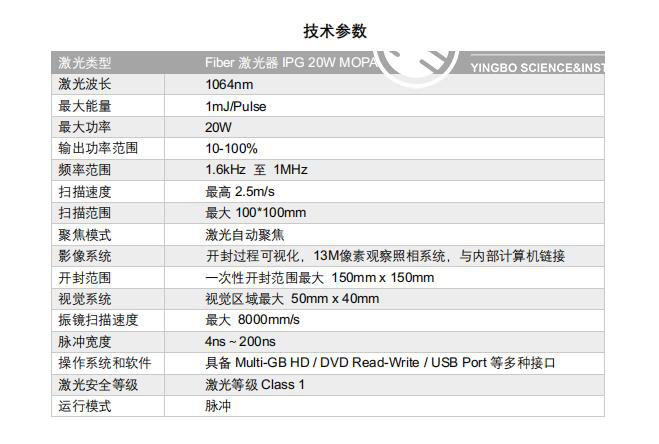

| Parameter | Value |
|---|---|
| Laser Type | Fiber Laser IPG 20W MOPA |
| Laser Wavelength | 1064nm |
| Maximum Energy | 1mJ/Pulse |
| Maximum Power | 20W |
| Output Power Range | 10-100% |
| Frequency Range | 1.6kHz至1MHz |
| Scanning Speed | 最高2.5m/s |
| Scanning Range | 最大100*100mm |
| Focusing Mode | 激光自动聚焦 |
| Imaging System | 开封过程可视化，13M像素高观察相机系统，与内部计算机Link |
| Opening Range | 一次性开封范围最大150mmx150mm |
| Visual System | 视觉区域最大50mmx40mm |
| Galvanometer Scanning Speed | 最大8000mm/s |
| Pulse Width | 4ns-200ns |
| Operating System and Software | 具备Multi-GB HD/DVD Read-Write/USB Port等multiple种接口 |
| Laser Safety Class | Class 1 |
| Operating Mode | 脉冲 |
