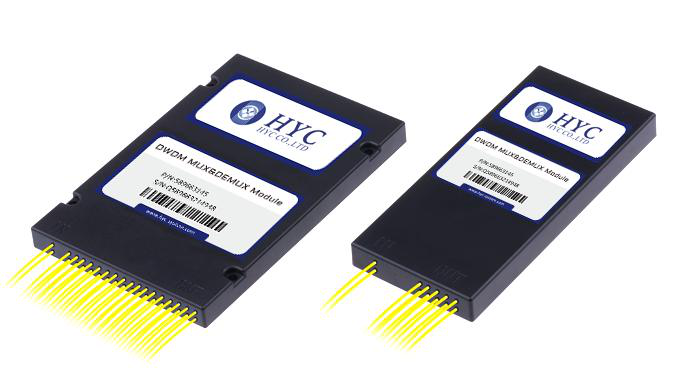

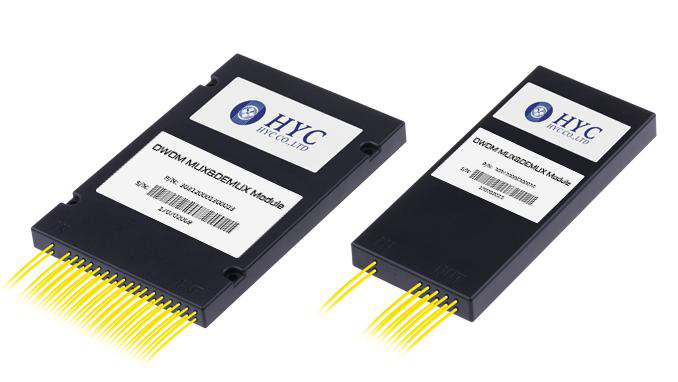

DWDM Mux & Demux ABS Module
HYC's DWDM Mux & Demux ABS module is based on TFF (thin-film filter) technology, offering multiple channel options and wavelength selectivity. It enables multiplexing and demultiplexing of optical signals with different wavelengths, supporting DWDM with 100GHz or 200GHz channel spacing. It is widely used in telecom 5G, metro networks, backbone networks, and data centers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Count 2 | 2 |
| Channel Count 4 | 4 |
| Channel Count 8 | 8 |
| Channel Count 12 | 12 |
| Channel Count 16 | 16 |
| Channel Count 20 | 20 |
| Operating Wavelength (nm) | 1520-1600nm |
| Channel Spacing (GHz) | 100G/200G |
| Insertion Loss (dB) 2CH | ≤1.0dB |
| Insertion Loss (dB) 4CH | ≤1.5dB |
| Insertion Loss (dB) 8CH | ≤2.5dB |
| Insertion Loss (dB) 12CH | ≤2.5 (with connector) |
| Insertion Loss (dB) 16CH | ≤3.0 (with connector) |
| Insertion Loss (dB) 20CH | ≤4.0 (with connector) |
| Channel Isolation (dB) | ≥28dB |
| Non-Channel Isolation (dB) | ≥45dB |
| Return Loss (dB) | ≥45dB |
| Directivity (dB) | ≥50dB |
| Transmission Rate | ≤0.5 |
| Operating Temperature (°C) | 40~+85°C |
