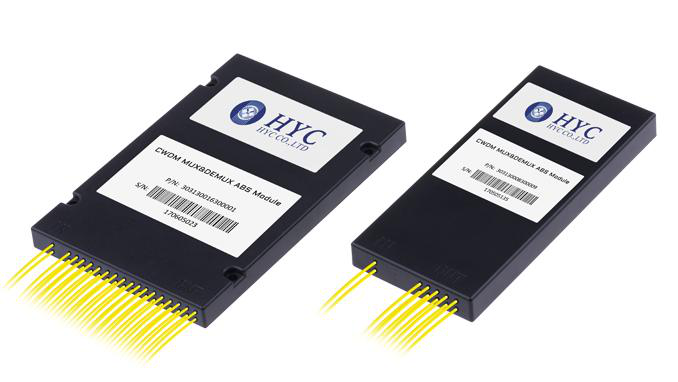

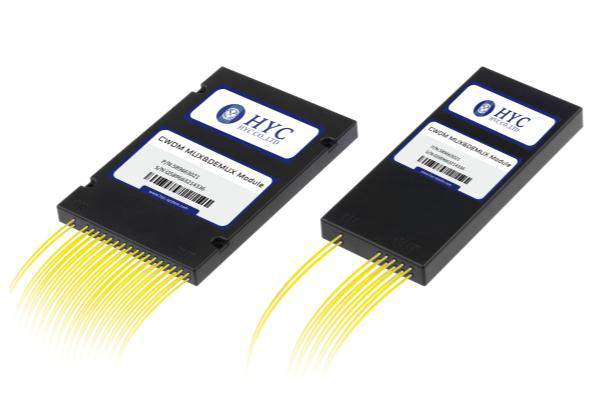

CWDM Multiplexing & Demultiplexing ABS Module
HYC's CWDM Multiplexing & Demultiplexing ABS Module is a solution based on TFF (thin-film filter) technology, featuring compact size and selectable wavelengths. It enables multiplexing and demultiplexing of optical signals of different wavelengths, making it ideal for CWDM systems. This module is widely used in telecommunications, enterprise networks, and campus networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 1260-1650&1460-1650nm |
| Insertion Loss (dB) | ≤1.0, ≤1.5, ≤2.5, ≤2.5 (8 channels), ≤3.0 (16 channels), ≤3.5 (18 channels)dB |
| Channel Isolation (dB) | >30dB |
| Minimum Return Loss (dB) | >45dB |
| Return Loss (dB) | >45dB |
| Directivity (dB) | >50dB |
| Polarization Dependent Loss (dB) | ≤0.5dB |
| Module Dimensions (mm) | L120×W80×H18, L120×W80×H10, L100×W80×H10, MINI: L100×W45×H10, L80×W60×H12 |
| Operating Temperature (°C) | -40~+85°C |
Applications
