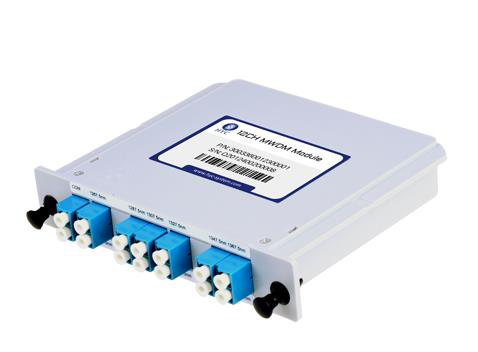

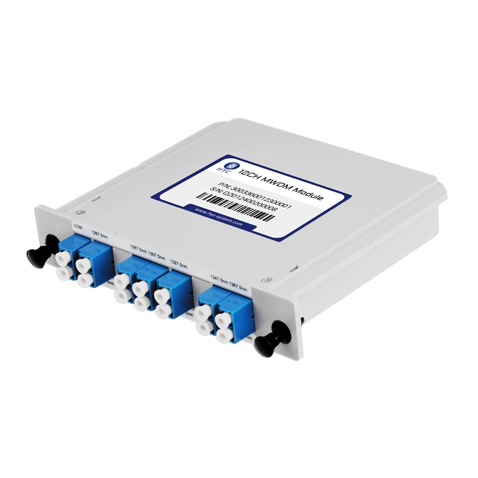

12-Channel MWDM Card-Type Module
The 12CH MWDM plug-in module is a device based on TFF (thin-film filter) wavelength division multiplexing technology. It supports multiple wavelengths and multiplexing and demultiplexing functions. It can perform wavelength division multiplexing on optical signals of different wavelengths and separate received optical signals with high resolution. It is a solution for 5G front-haul applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1400nm |
| Central Wavelength (nm) | 1267.5/1274.5/1287.5/1294.5/1307.5/1314.5/1327.5/1334.5/1347.5/1354.5/1367.5/1374.5 |
| Channel Wavelength (nm) | ±2.5nm |
| Insertion Loss (dB) | <3.0dB |
| Channel Isolation (dB) | ≥25dB |
| Adjacent Channel Isolation (dB) | ≥25dB |
| Non-Adjacent Channel Isolation (dB) | ≥35dB |
| Return Loss (dB) | ≥45dB |
| Directivity (dB) | ≥50dB |
| Operating Temperature (°C) | -40~85°C |
Applications
Key Features
Datasheet
