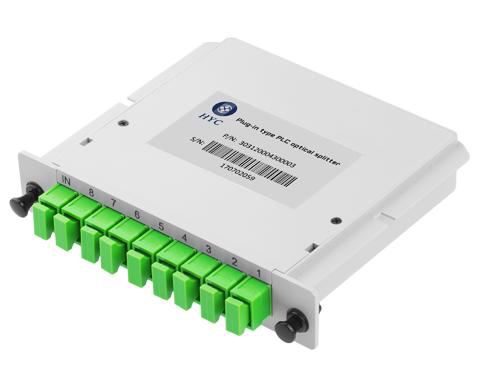

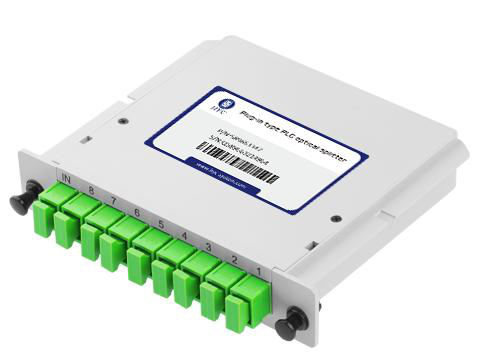

Card-Type PLC Optical Splitter
The plug-in type PLC optical splitter is a product made using planar lightwave circuit technology and precision processes. It is widely used in passive optical network (PON) systems to distribute optical signals evenly. It supports various configurations such as 1xN, 2xN, and MxN, meeting diverse customer needs. Compared to FBT splitters, PLC splitters offer advantages such as high wavelength range, uniform splitting, high reliability, and compact design. They are widely used in LAN, CATV, and FTTX fields.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650nm |
| Fiber Diameter (μm) | 250μm Fiber or 900μm loose tube |
| Insertion Loss (dB) 1x2 | ≤4.5dB |
| Insertion Loss (dB) 1x4 | ≤7.7dB |
| Insertion Loss (dB) 1x8 | ≤11.0dB |
| Insertion Loss (dB) 1x16 | ≤14.2dB |
| Insertion Loss (dB) 1x32 | ≤18.0dB |
| Insertion Loss (dB) 1x64 | ≤21.5dB |
| Insertion Loss (dB) 2x4 | ≤7.7dB |
| Insertion Loss (dB) 2x8 | ≤11.3dB |
| Insertion Loss (dB) 2x16 | ≤14.5dB |
| Insertion Loss (dB) 2x32 | ≤18.1dB |
| Insertion Loss (dB) 2x64 | ≤21.5dB |
| Uniformity (dB) 1x2 | ≤0.6dB |
| Uniformity (dB) 1x4 | ≤0.8dB |
| Uniformity (dB) 1x8 | ≤1.0dB |
| Uniformity (dB) 1x16 | ≤1.5dB |
| Uniformity (dB) 1x32 | ≤2.0dB |
| Uniformity (dB) 1x64 | ≤2.5dB |
| Uniformity (dB) 2x4 | ≤0.8dB |
| Uniformity (dB) 2x8 | ≤1.0dB |
| Uniformity (dB) 2x16 | ≤1.5dB |
| Uniformity (dB) 2x32 | ≤2.0dB |
| Uniformity (dB) 2x64 | ≤2.5dB |
| Return Loss (dB) | ≥55dB |
| Directivity (dB) | ≥55dB |
| Operating Power (mW) | ≤500mW |
| Operating Temperature (°C) | -40~+85°C |
| Storage Temperature (°C) | -40~+85°C |
| Package Dimensions (mm) | 130x100x25/130x100x50/130x100x102 |
