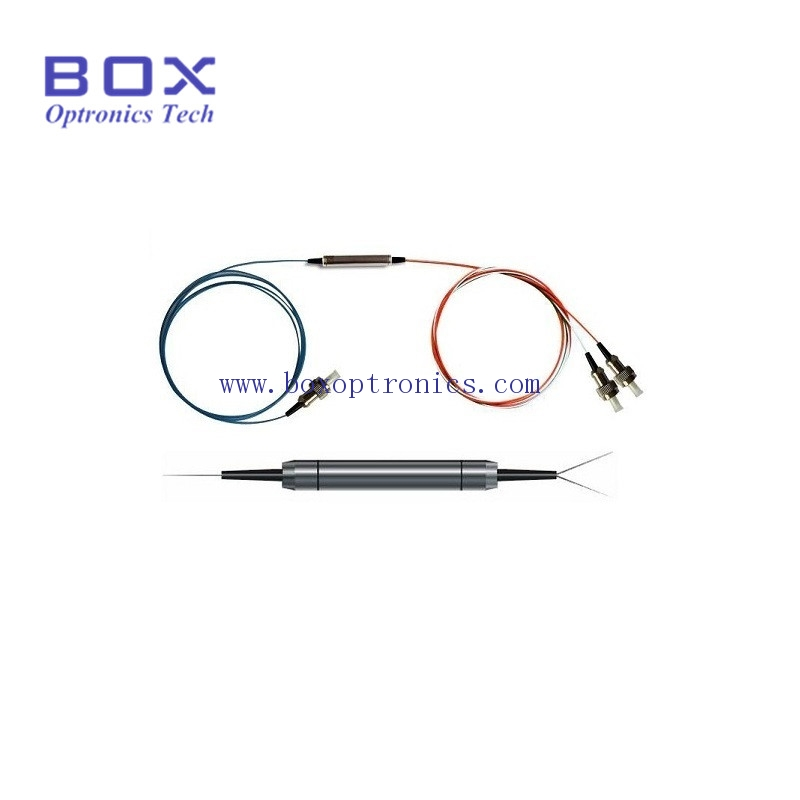

1064nm Fiber optic coupler
The fiber coupler couples a laser beam into an optical fiber.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 工作波长 [FBC 1×2 / 等级: P / 端口配置: 1×2] | 1064 nm |
| 工作带宽 [FBC 1×2 / 等级: P / 端口配置: 1×2] | ±10 nm |
| 附加损耗 [FBC 1×2 / 等级: P / 端口配置: 1×2] | ≤ 0.07 dB |
| 插入损耗 [20/80 / FBC 1×2 / 等级: P / 端口配置: 1×2] | ≤13.8/0.4 |
| PDL [FBC 1×2 / 等级: P / 端口配置: 1×2] | ≤0.15 dB |
| 指向性 [FBC 1×2 / 等级: P / 端口配置: 1×2] | ≥50 dB |
| 工作温度 [FBC 1×2 / 等级: P / 端口配置: 1×2] | -20~+70 ℃ |
| 存储温度 [FBC 1×2 / 等级: P / 端口配置: 1×2] | -40～+85 ℃ |
| 尺寸 [900um / FBC 1×2 / 等级: P / 端口配置: 1×2] | 3 mm × 54 mm |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
