Polarization Maintaining Filter Coupler
Save to Favorites

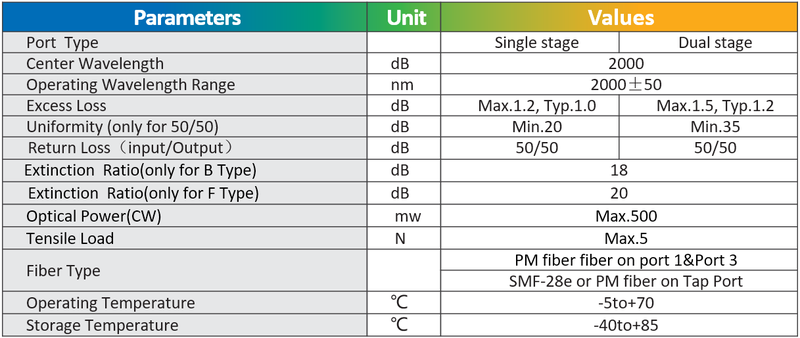

Specifications
| Parameter | Value |
|---|---|
| 端口类型 [单级] | Single stage |
| 超额损耗 [单级] | typical:1.0 dB；max:1.2 dB |
| 均匀性（仅适用于50/50） [单级] | min:20 dB |
| 端口类型 [双级] | Dual stage |
| 超额损耗 [双级] | typical:1.2 dB；max:1.5 dB |
| 均匀性（仅适用于50/50） [双级] | min:35 dB |
| 中心波长 [单级 / 双级] | 2000 |
| 工作波长范围 [单级 / 双级] | 2000±50 nm |
| 回波损耗（输入/输出） [单级 / 双级] | 50/50 |
| 消光比 [单级 / 双级 / 仅适用于B型] | 18 dB |
| 消光比 [单级 / 双级 / 仅适用于F型] | 20 dB |
| 光功率 (CW) [单级 / 双级 / CW] | max:500 mw |
| 拉伸载荷 [单级 / 双级] | max:5 N |
| 光纤类型 [单级 / 双级 / 在端口1 and 端口3] | PM fiber fiber |
| 光纤类型 [单级 / 双级 / 在Tap端口] | SMF-28e or PM fiber |
| 工作温度 [单级 / 双级] | -5to+70 °C |
| 储存温度 [单级 / 双级] | -40to+85 °C |
