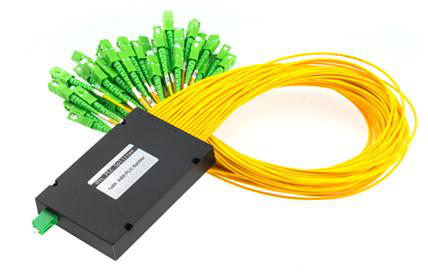

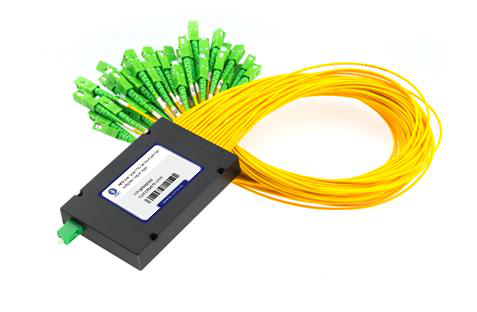

ABS Box PLC Optical Splitter - Adapter Input Type
The PLC optical splitter is a type of optical power management device manufactured using quartz substrate and planar lightwave circuit technology. It is mainly used in passive optical network (PON) systems to distribute optical signals. This product is available in multiple models such as 1xN, 2xN, and NxN, meeting diverse customer needs. Compared to FBT (fused biconical taper) splitters, PLC splitters offer advantages such as longer wavelength range, higher stability, and uniform optical signal distribution. It is widely used in metropolitan area networks, local area networks, and FTTX applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type | G652D/G657A1/G657A2 |
| Cable type | 0.9/2.0/3.0mm loose tube |
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 1x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤10.8 |
| Insertion Loss (dB) 1x16 | ≤13.7 |
| Insertion Loss (dB) 1x32 | ≤17.0 |
| Insertion Loss (dB) 1x64 | ≤21.0 |
| Insertion Loss (dB) 1x128 | ≤25.0 |
| Insertion Loss (dB) 2x4 | ≤7.4 |
| Insertion Loss (dB) 2x8 | ≤10.8 |
| Insertion Loss (dB) 2x16 | ≤13.7 |
| Insertion Loss (dB) 2x32 | ≤17.0 |
| Insertion Loss (dB) 2x64 | ≤21.0 |
| Insertion Loss (dB) 2x128 | ≤25.0 |
| Uniformity (dB) 1x2 | ≤0.6 |
| Uniformity (dB) 1x4 | ≤0.6 |
| Uniformity (dB) 1x8 | ≤1.0 |
| Uniformity (dB) 1x16 | ≤1.2 |
| Uniformity (dB) 1x32 | ≤1.5 |
| Uniformity (dB) 1x64 | ≤2.0 |
| Uniformity (dB) 1x128 | ≤2.5 |
| Uniformity (dB) 2x4 | ≤0.6 |
| Uniformity (dB) 2x8 | ≤1.0 |
| Uniformity (dB) 2x16 | ≤1.2 |
| Uniformity (dB) 2x32 | ≤1.5 |
| Uniformity (dB) 2x64 | ≤2.0 |
| Uniformity (dB) 2x128 | ≤2.5 |
| Return Loss (dB) | >55 |
| Directivity (dB) | >55 |
| Maximum Power (mW) | ≤300 |
| Operating Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -40~+85 |
| Module Dimensions (LxWxH mm) 1x2-1x64 | 120x80x18 |
| Module Dimensions (LxWxH mm) 1x128-2x128 | 140x115x18 |
