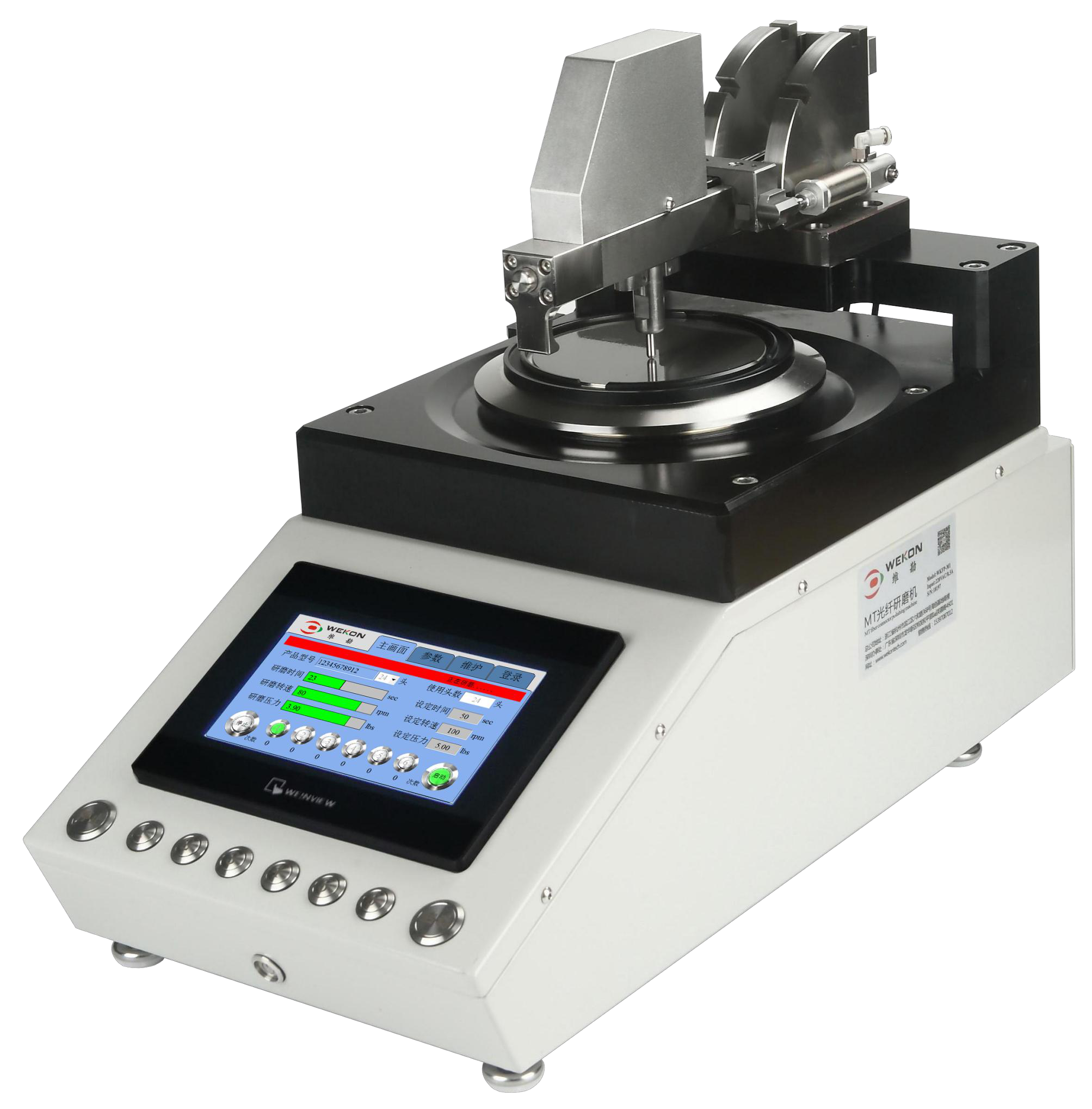

WKFP MT Fiber Polishing Machine

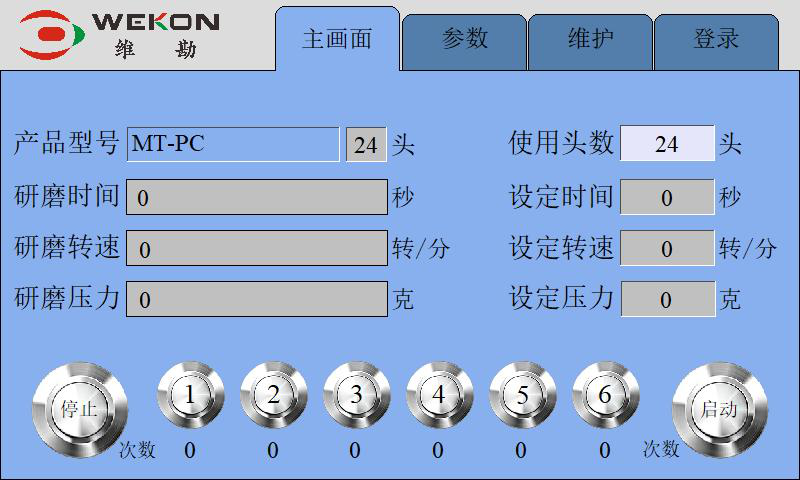

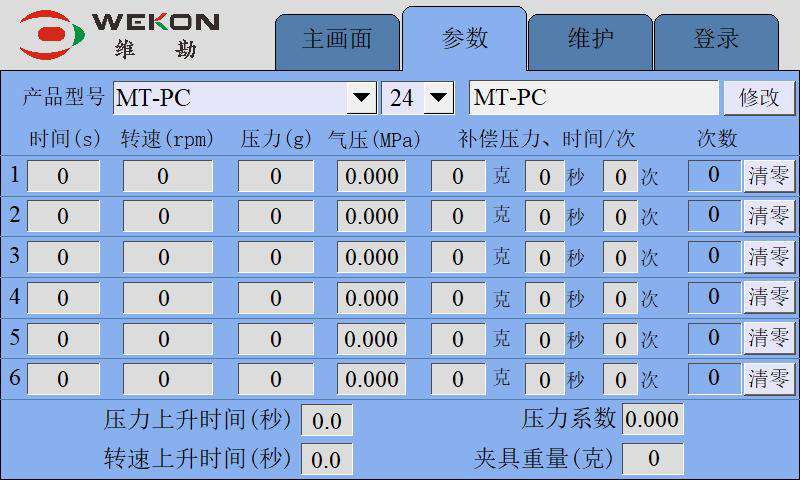

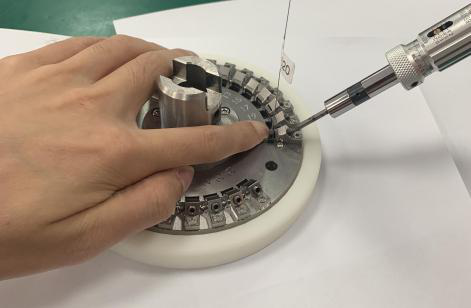

The WKFP MT Fiber Polishing Machine is equipped with an industrial programmable control system, a 7-inch touch screen, and mechanical buttons for easy operation. It features high precision machinery to ensure uniformity and consistency in polishing quality, meeting various polishing process requirements. The machine can store up to 30 polishing processes, allowing independent settings for polishing speed, pressure, operation time, and lift time. It supports one-time polishing of 24 MT ferrules.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 220VAC |
| Rated Power | 240W |

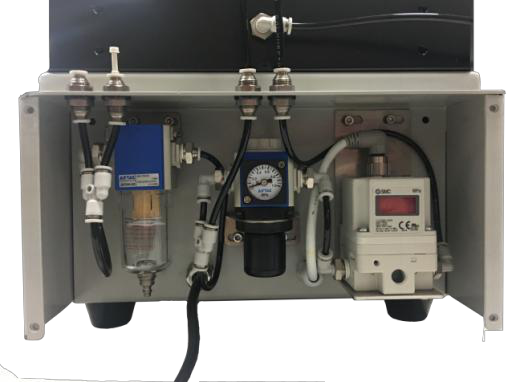

| Working Air Pressure | ≤1.0MPa |
| Working Pressure | ≤0.9MPa |
| Speed Range | 0~200rpm |
| Dimensions | 550W*275D*390H(mm) |
| Acceleration Time | 0~9s |
| Polishing Time | 0~900s |
| Machine Net Weight | 36kg |
