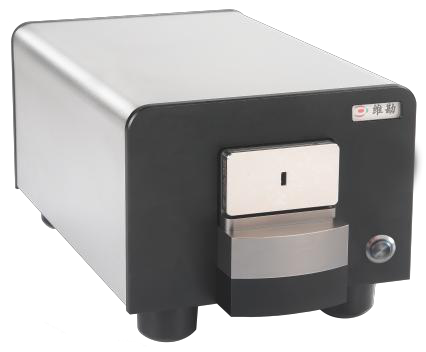

WKFI-MTx Fiber Endface Interferometer

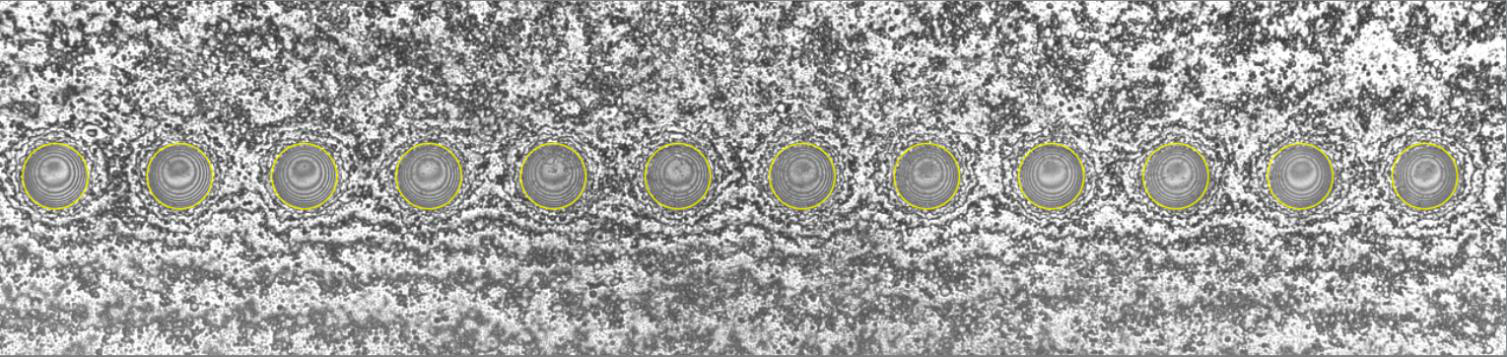

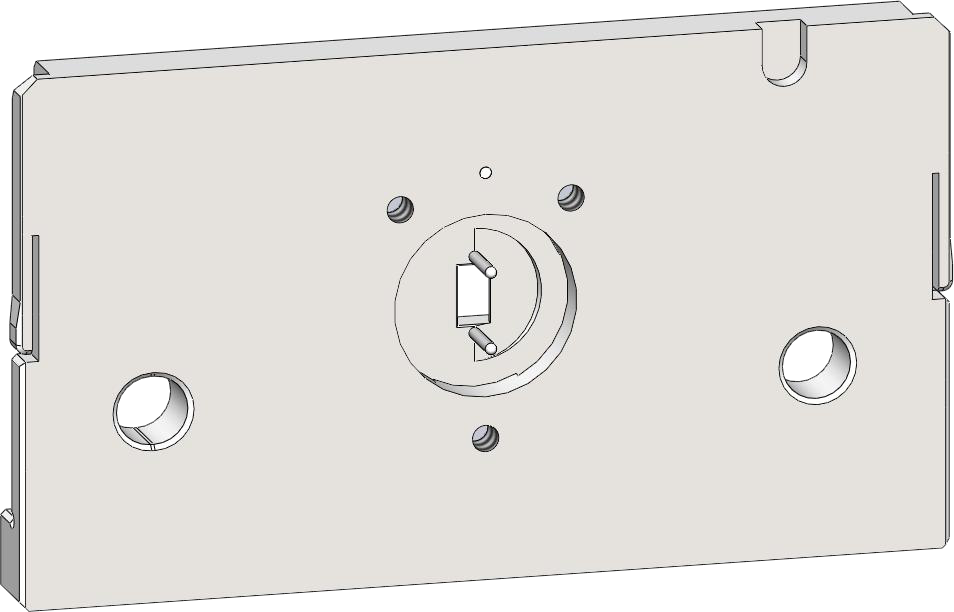

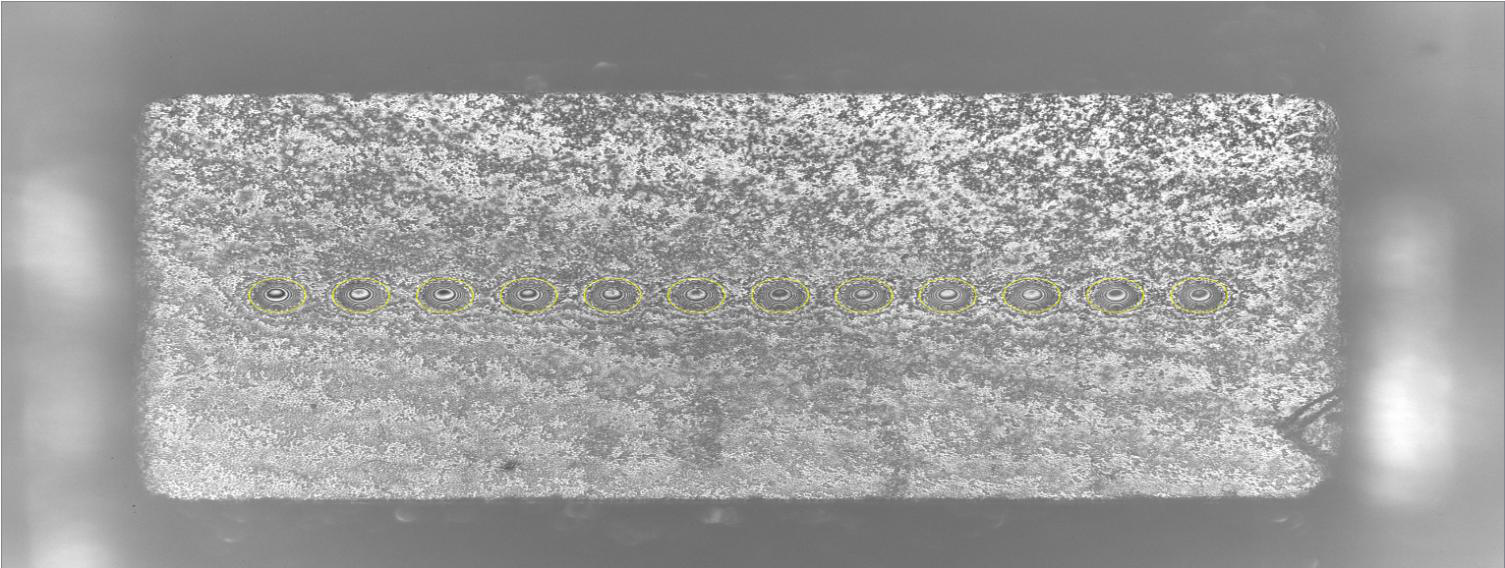

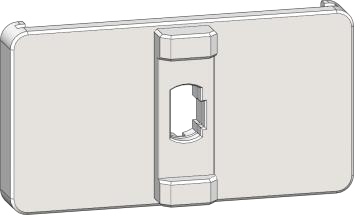

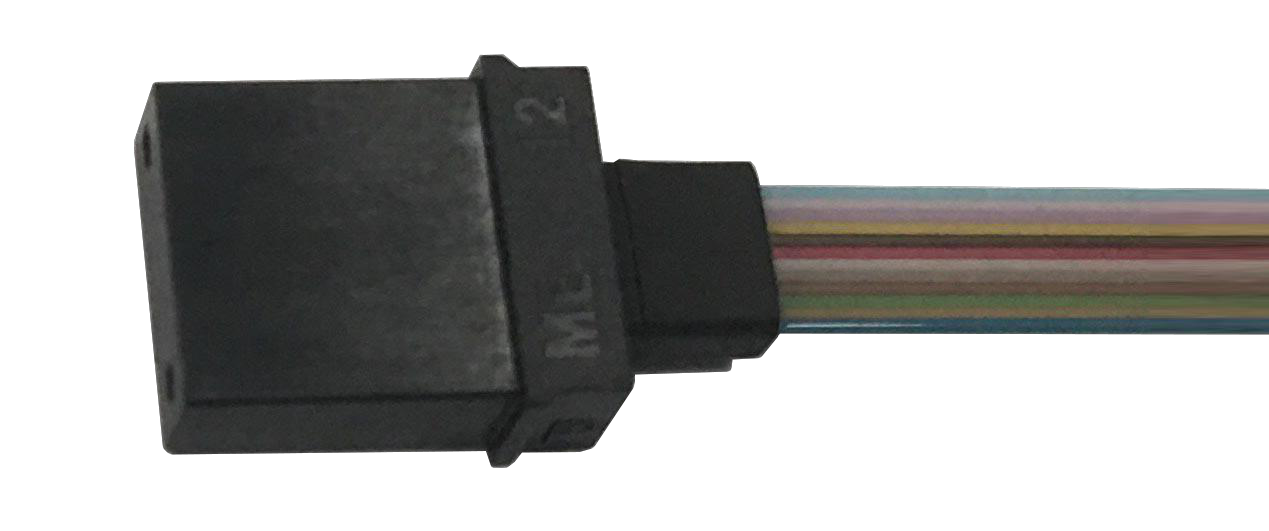

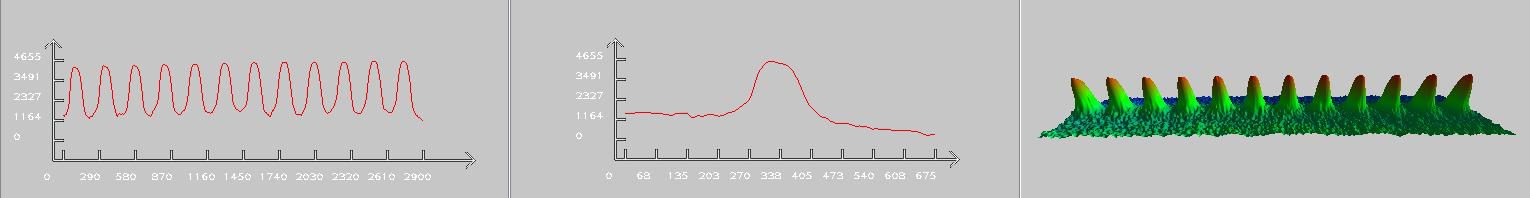

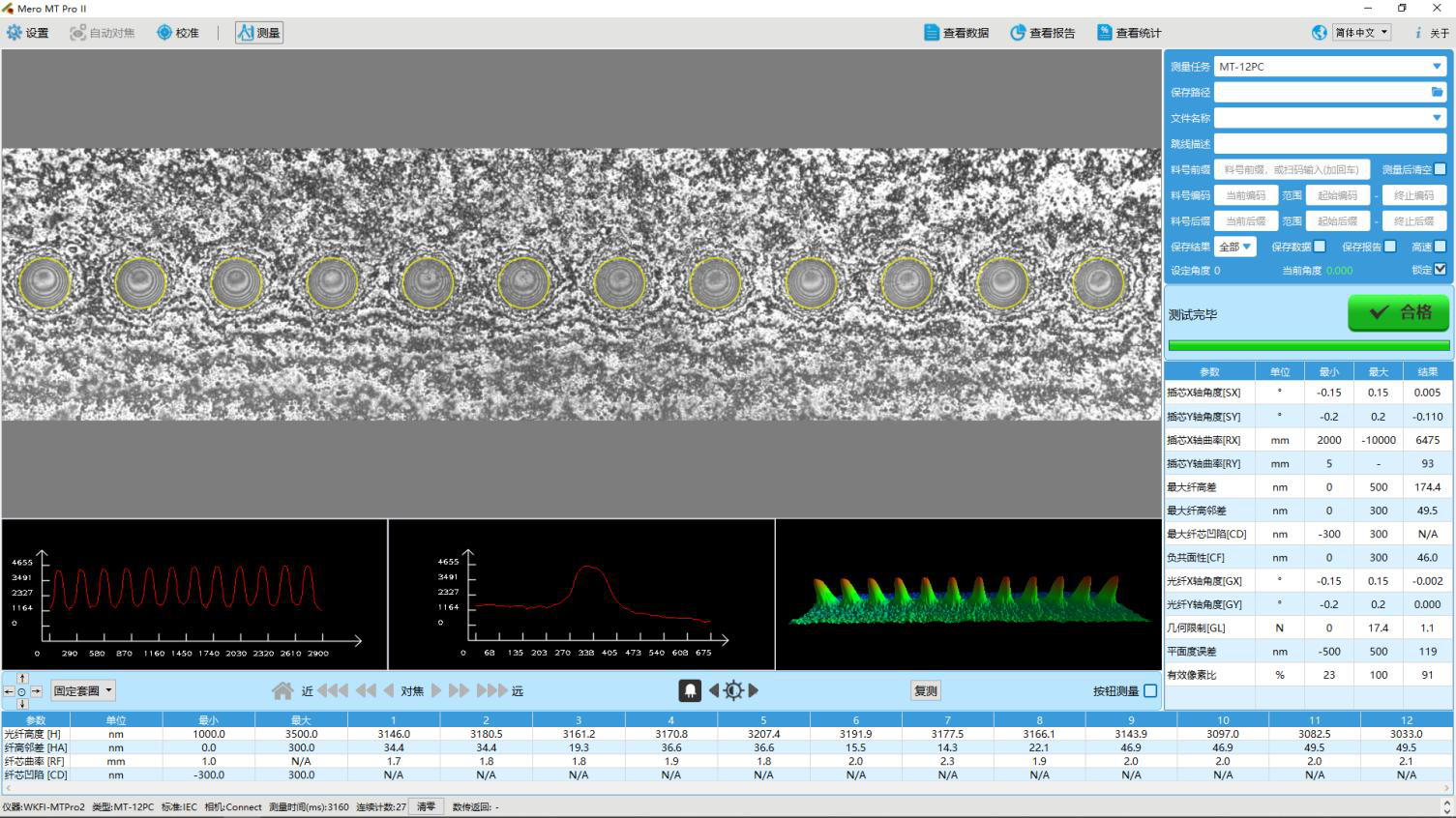

This device is a precision non-contact multi-core fiber endface interferometer. It uses optical interference principles to measure the 3D shape and various parameters of fiber endfaces. It supports MT multi-core fiber connectors, as well as standard connectors like FC, SC, and LC.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement Range | 12X cores, 16X cores |

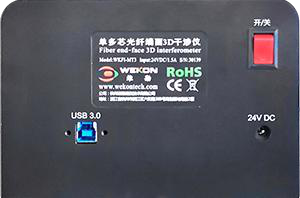

| Interface Type | USB3.0 |
| Power Input | AC100-240V |
| Power Output | DC24V/1.67A |
| Operating Temperature | 16-26°C |
| Operating Humidity | 30-60% |
| Display Resolution | 1920*1080 |
| Memory | 16GB |
| Processor | Intel Core i5 |
| Measurement Accuracy | ≤0.0015 |
| Measurement Speed | 2000-4000 connectors/hour |
