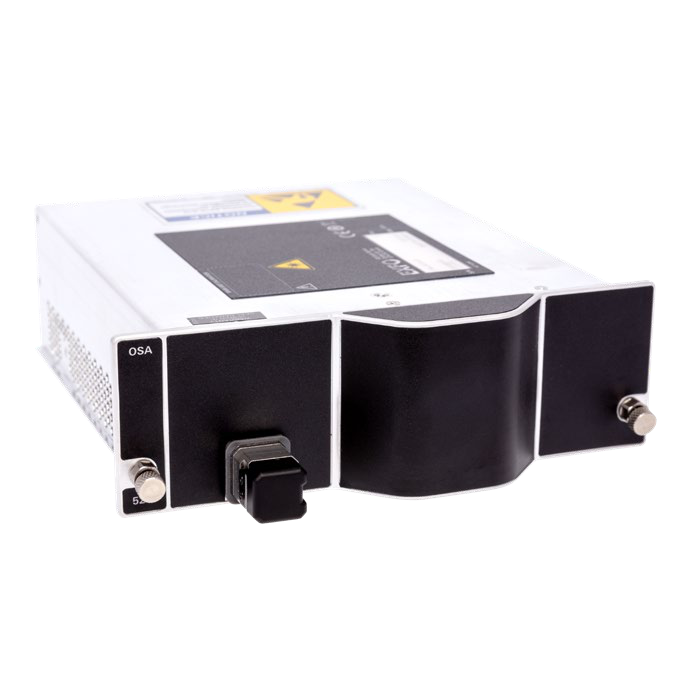

FTBx-5235

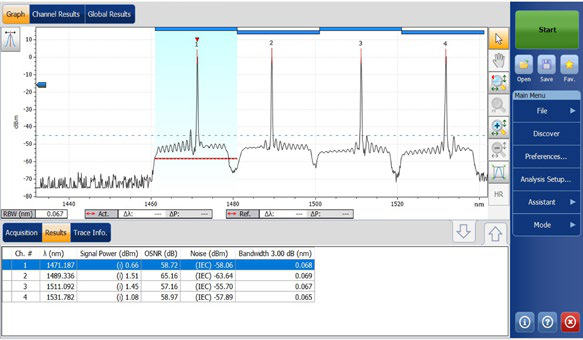

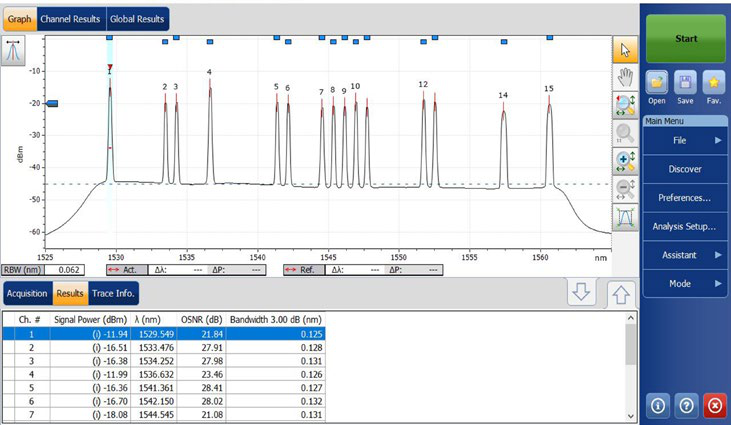

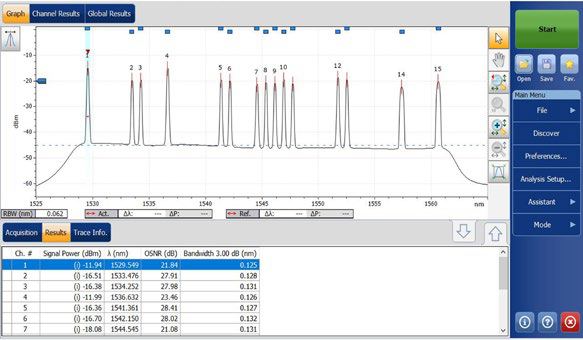

The FTBx-5235 is a compact, entry-level optical spectrum analyzer (OSA) designed for DWDM, CWDM, and DWDM over CWDM network commissioning and troubleshooting. It offers power and wavelength measurements, OSNR testing, and offline post-processing capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 1250 to 1650 |
| Wavelength Uncertainty (nm) | ±0.06, ±0.02 |
| Reference | Internal |
| Resolution Bandwidth (FWHM) (nm) | ≤0.1 |
| Wavelength Repeatability 2σ (nm) | ±0.005 |
| Analysis Modes | WDM and drift |
| Dynamic Range (dBm) (per channel) | -65 to 23 |
| Maximum Total Safe Power (dBm) | 29 |
| Absolute Power Uncertainty (dB) | ±0.6 |
| Power Repeatability 2σ (dB) | ±0.1 |
| Optical Rejection Ratio at 1550 nm (dB) | 31 (35 typical) at 0.2 nm (25 GHz), 40 (45 typical) at 0.4 nm (50 GHz) |
| Channel Spacing | 33 to 200 GHz CWDM |
| PDL (dB) | ±0.1 |
| ORL (dB) | >40 |
| Measurement Time (s) | <1.2 |
| Size (HxWxD) | 51mm x 159mm x 185mm (2in x 6 1/4in x 7 1/4in) |
| Weight | 1.2kg (2.6lb) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 50°C (-40°F to 122°F) |
| Relative Humidity | <95% non-condensing |
| Connectors | EI (EXFO UPC universal interface), EA (EXFO APC universal interface) |
