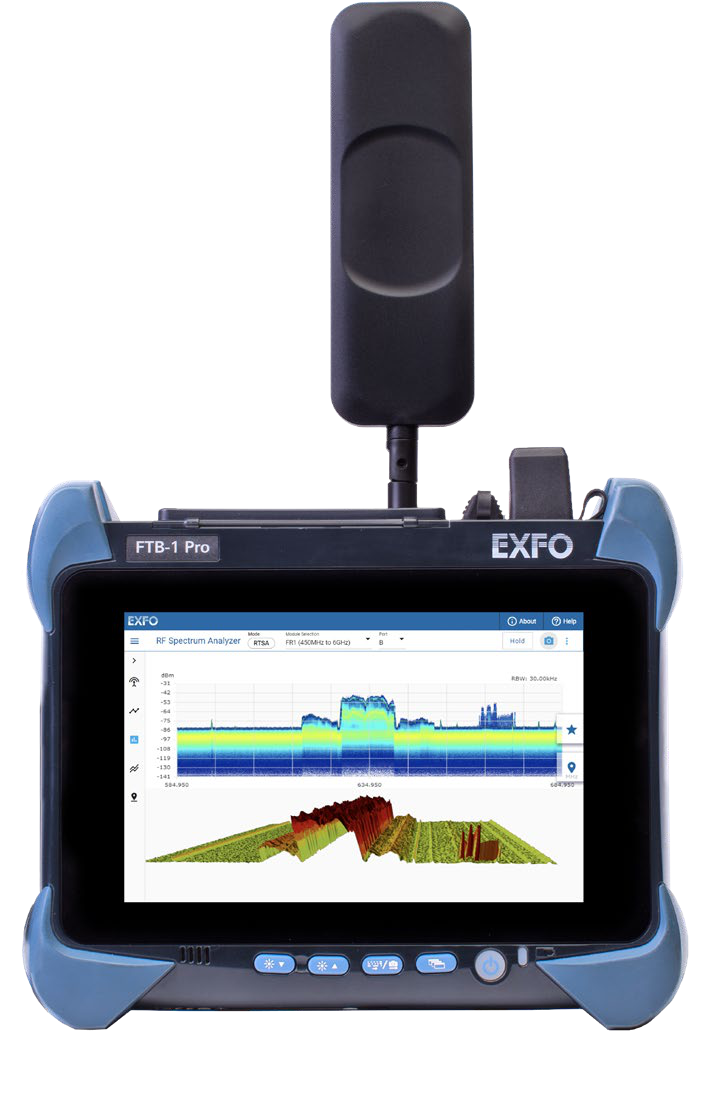

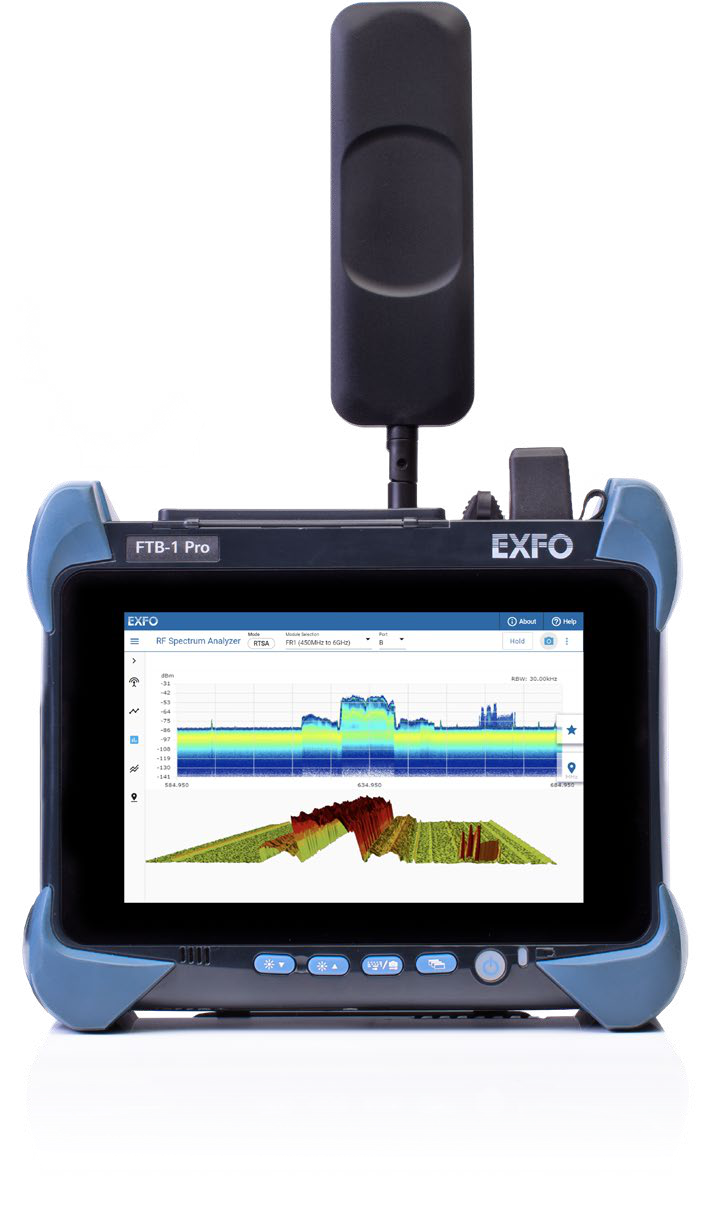

5GPro Spectrum Analyzer

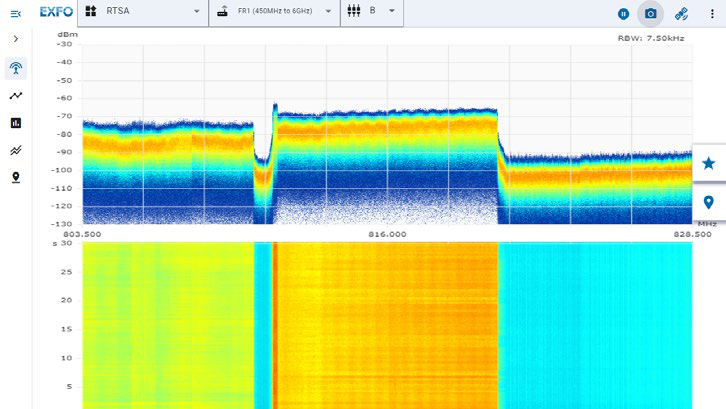

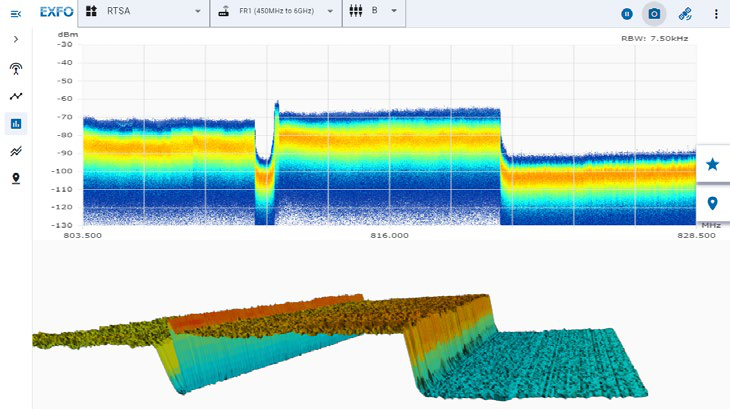

The 5GPro Spectrum Analyzer is a portable, modular RF testing solution designed for field technicians to validate 4G LTE and 5G RF environments. It offers real-time spectrum analysis, signal analysis, and advanced features for efficient network troubleshooting.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Frequency Range FR1 | 450MHz-6GHz |
| Frequency Range FR2 | 24.25GHz-40GHz |
| Analysis Bandwidth | 100MHz |
| RF Max Safe Level Input FR1 | 30dBm |
| RF Max Safe Level Input FR2 | 20dBm |
| Preamplifier | Yes |
| Attenuator | 0-30dB, 10dB steps |

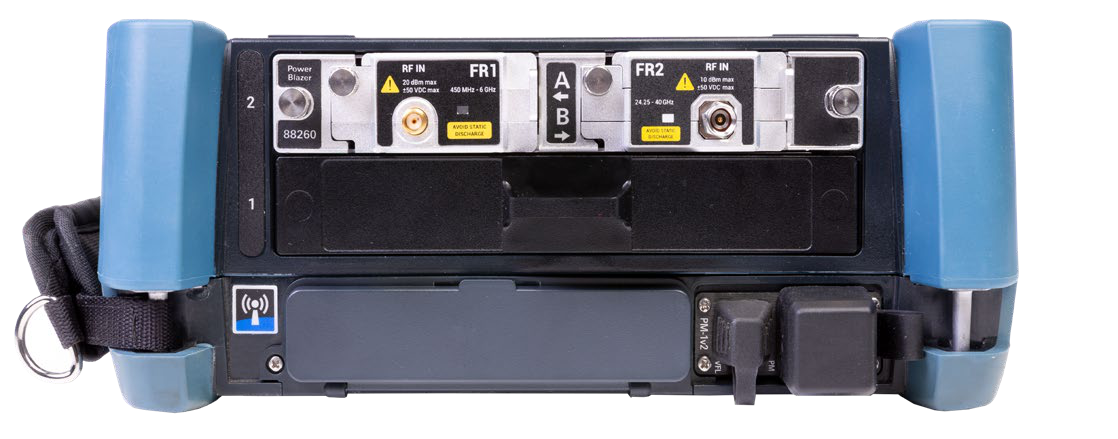

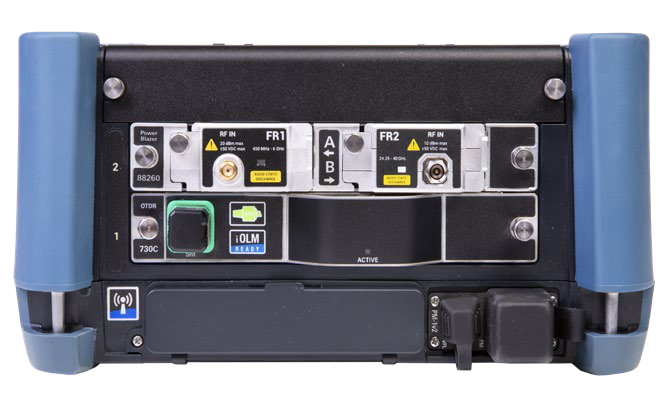

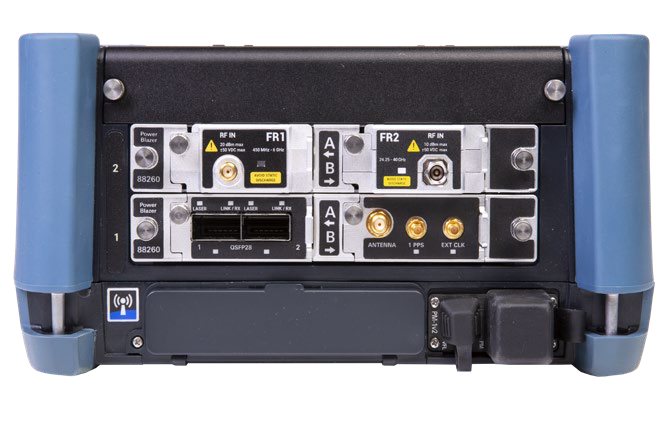

| Connector FR1 | SMA (female) |
| Connector FR2 | 2.92mm (K-male) |
| Screen | Touchscreen, color, 1280x800 TFT 203mm (8in) |
| Battery Autonomy | Dual carrier >2h, High-power dual carrier >4h |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Dimensions Dual Carrier | 210mm x 254mm x 96mm |
| Dimensions High-Power Dual Carrier | 210mm x 254mm x 122mm |
| Weight Dual Carrier | 2.9kg |
| Weight High-Power Dual Carrier | 3.7kg |
| Certification | MIL-PRF-28800F - Class 2 (shock, vibration, drop) |
| Platform | Quad-core processor, 4GB RAM, Windows 10, 128GB internal flash memory |
| Interfaces | RJ45 LAN 10/100/1000Mbit/s, WiFi, USB 2.0/3.0 ports, MicroSD card slot, 3.5mm headset/microphone port |
