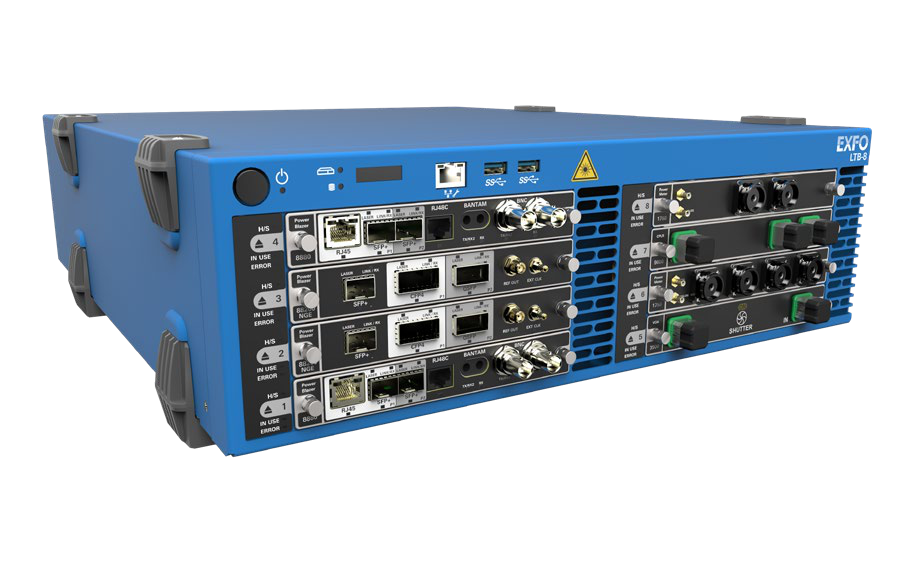

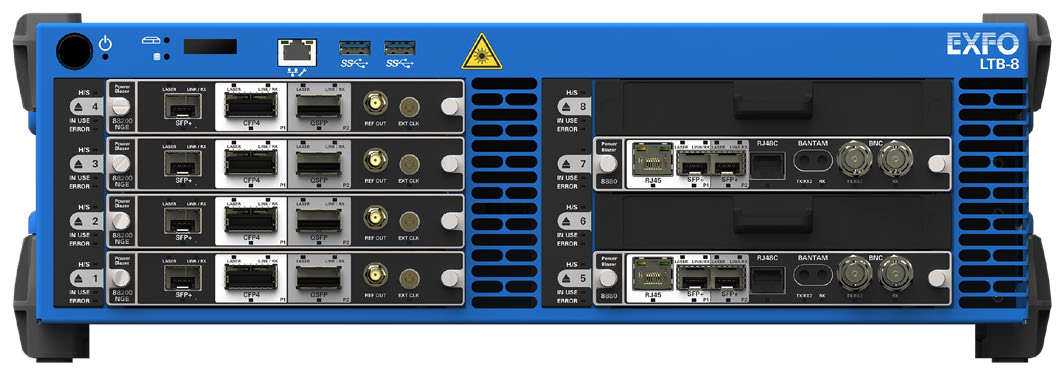

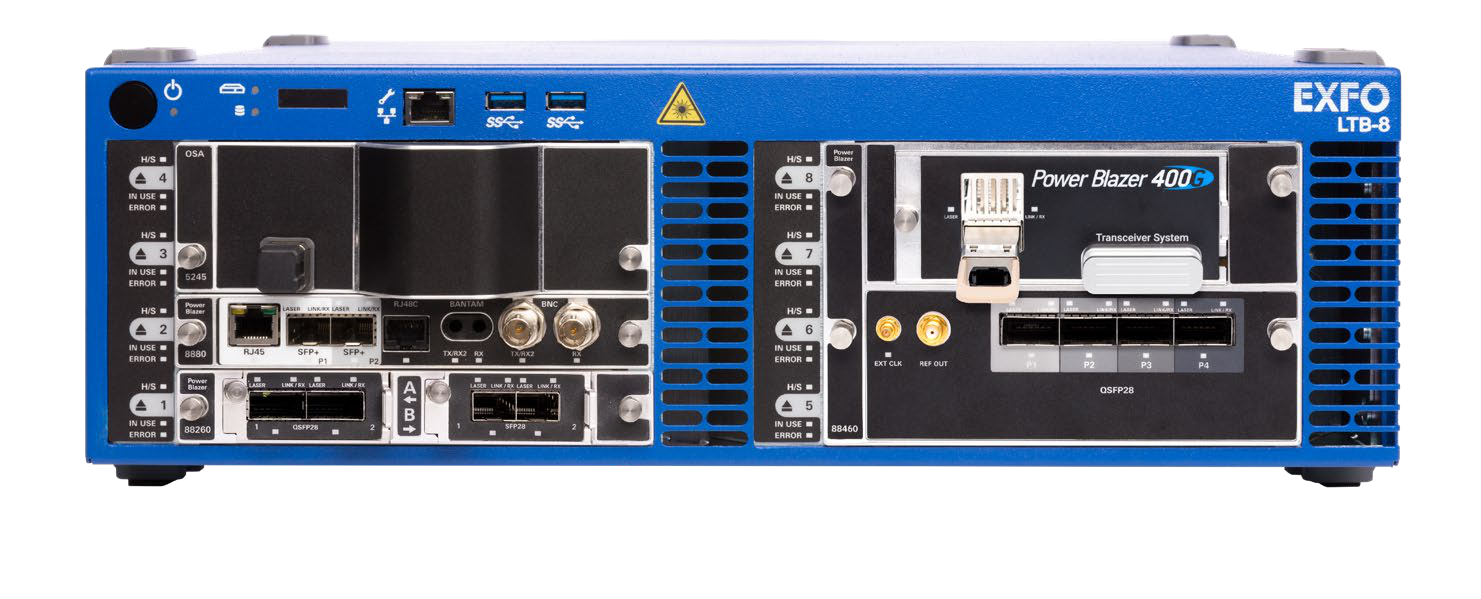

LTB-8 Rackmount Platform
The LTB-8 is a powerful, scalable, eight-slot rackmount platform designed for advanced lab and manufacturing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Mainframe | Quad-core Intel processor/16GB RAM/Windows 10 |

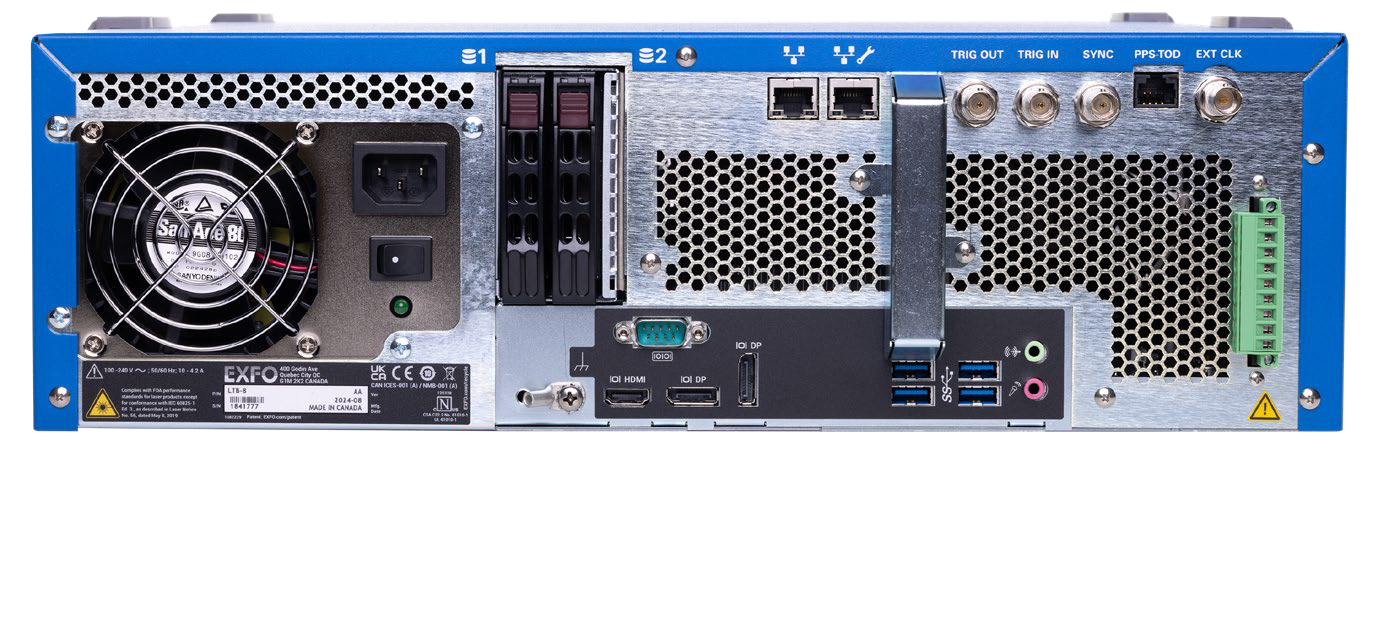

| Interfaces | RJ45 LAN 10/100/1000Mbit/s ports (2), USB3.0 ports (6), HDMI (1) and DisplayPort ports (2), Serial RS-232 port, Headset and microphone ports |
| Storage | 256GB SSD |
| Power Supply | AC input: 100V-240V; 50/60Hz; 10-4.2A |
| Dimensions | 154mm x 459mm x 558mm (6 1/16in x 18 1/8in x 22in) |
| Weight | 15.5kg (34.2lb) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 80% non-condensing |
