Zevision IMC300

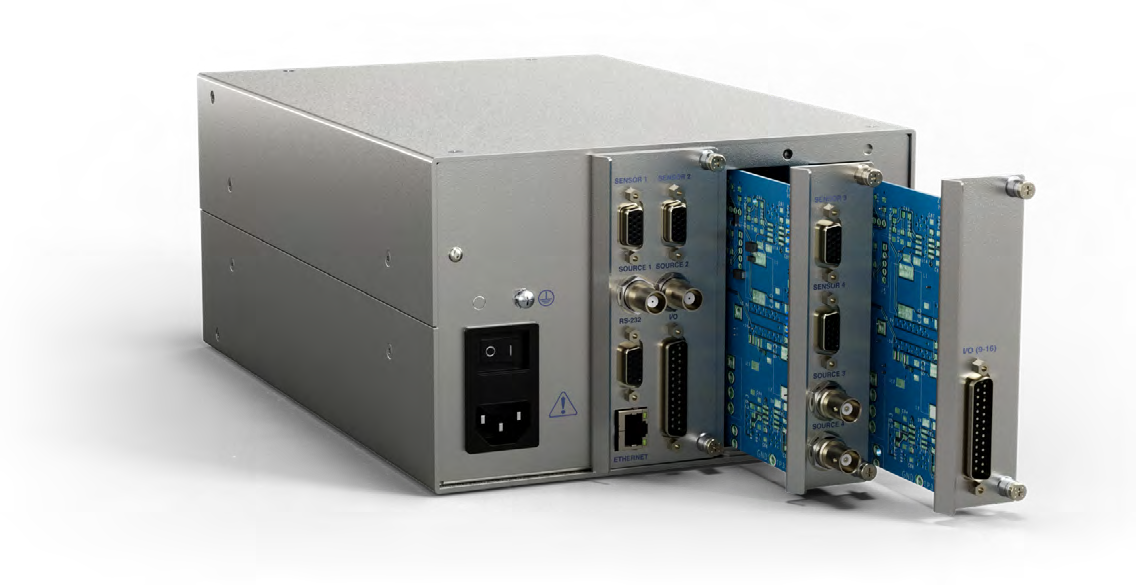

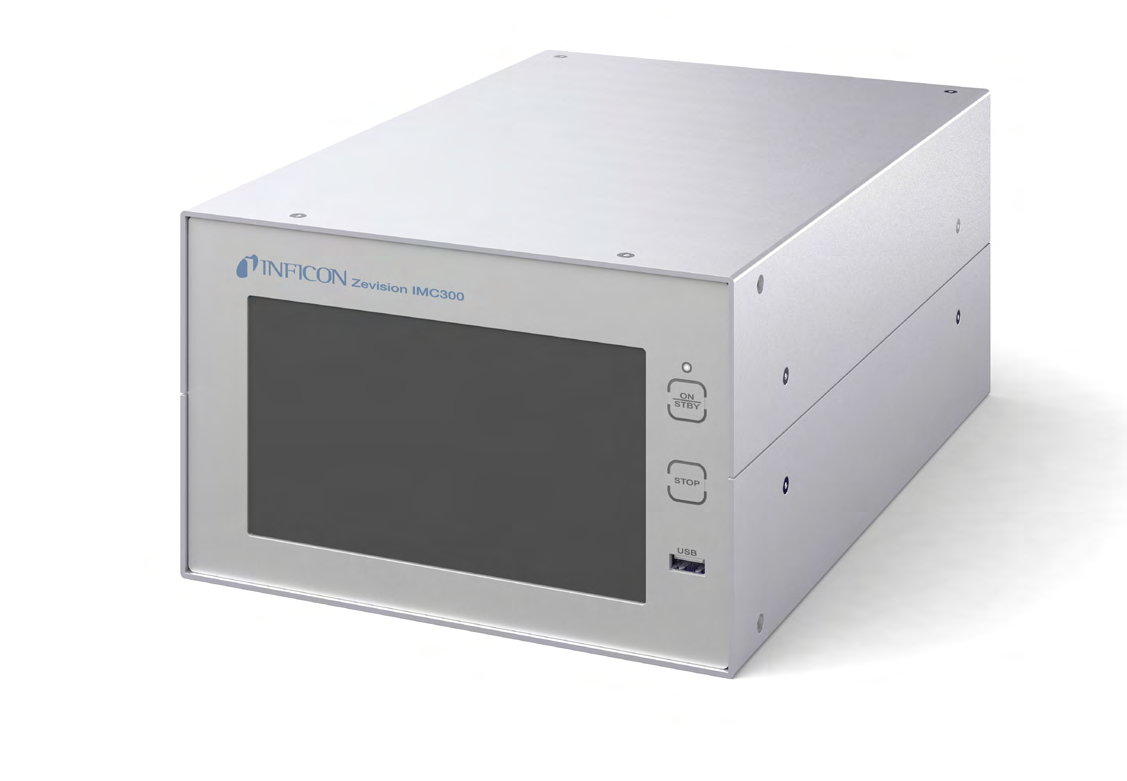

The INFICON Zevision IMC300 is a next-generation thin film deposition controller designed for precision control, maximum repeatability, and unmatched crystal efficiency, making it ideal for modern optical coating applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Crystal Frequency Range | 6.0 to 4.5MHz |
| Frequency Resolution | 0.00056Hz @6MHz |
| Frequency Accuracy | ±2.5ppm to 50°C |
| Measurement Rate | 10Hz |
| Thickness and Rate Resolution | ±0.008Å and ±0.08Å/s |
| Thickness Accuracy | 0.5% |
| Rate Accuracy | 0.1% |
| Design Features | ModelLock |
| Processes | 200 |
| Layers per Process | 200 |
| Operating Temperatures | 0 to 50°C (32 to 122°F) |
| Weight | 4.1kg (9lb) |
| Main Power Supply | 125/250Vac, 50/60Hz |
| Rack Dimensions H×W×D | 132.5×213.1×314.3mm |
| Number of Sources | 2 BNC, Female (Without Option Card) |
| Control Voltage | ±10V, user configurable |
| Resolution | 15bits over full range (10V) |
| Number of Sensors | 2 Sensors (Without Option Card) |
| Compatible sensors | All |
| Digital Inputs | 8, event assignable |
| Input Rating | 24Vdc Max |
| Relay Outputs | 6, event assignable |
| Relay Rating | 30Vdc or 30Vac RMS or 42V peak at 2.5Amps |
| Display Type | TFT LCD Display with PCAP Touchscreen |
| Format | WQGA |
| Resolution | 800×480 |
| Backlighting | LED |
| Thickness Display Resolution | 1Å |
| Rate Display Resolution | 0.1Å/s for 0.0 to 99.9Å/s, 1Å/s for 100 to 999Å/s |
| Power Display Resolution | 0.01% |
| Data Display Rate | 1Hz |
| Graphic Display Functions | Rate Deviation ±5, 10, 20, or 40Å/s or Power at 0.0 to 100% |
| Communications Type | RS-232/Ethernet |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
750-7020-G5 Sensor
Measurement Devices
Inficon
Maximum temperature: 200°C Sensor Head Size (Maximum Envelope): 23.9mm O.D. x 28.9mm (0.94in O.D. x 1.14in) Mounting feedthrough: KF25 flange
The INFICON 750-7020-G5 sensor is designed for semiconductor chamber foreline monitoring, offering a reliable solution for precursor delivery fault detection. It integrates with FabGuard via the IMM-200 module to actively monitor excess precursor and derivatives.
-
IQM-233 Thin Film Deposition Controller Card
Measurement Devices
Inficon
Number of Sensor Inputs: 3 Sensor Connectors: SMA - Includes one SMA/BNC adapter Measurement Frequency Range: 6.1 to 4.0MHz (adjustable)
The IQM-233 is a PCI Express card designed to transform a computer into a thin film deposition controller. It is ideal for system OEMs or users looking to integrate a deposition controller into a computer or PLC-controlled system. The card is compatible with INFICON single and dual sensor heads and offers advanced features for precise thin film deposition control.
-
SQM-160 Multi-Film Rate/Thickness Monitor
Measurement Devices
Inficon
Sensor Inputs: Standard: two; optional: six Measurement Frequency Range: 6.5 to 10MHz (adjustable) Frequency Resolution: Standard: ±0.30Hz @6MHz; High resolution option: ±0.03Hz @6MHz
The SQM-160 uses proven quartz crystal sensor technology to measure rate and thickness in thin film deposition processes. It offers high accuracy, low cost, and user-friendly operation, making it ideal for various applications in thin film measurement.
-
STM-2 USB Thin Film Thickness / Rate Deposition Monitor
Measurement Devices
Inficon
Compatible sensors: Non-shuttered single QCM sensor Sensor input: One Sensor input: female BNC
The STM-2 is a compact and cost-effective USB-powered thin film thickness and rate deposition monitor. It offers high accuracy and ease of use, making it ideal for precision measurement applications.
