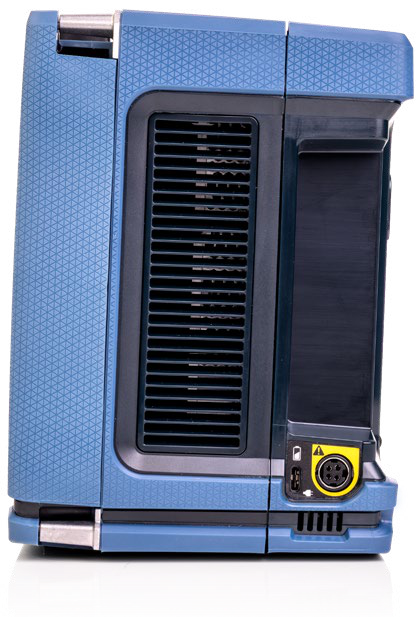

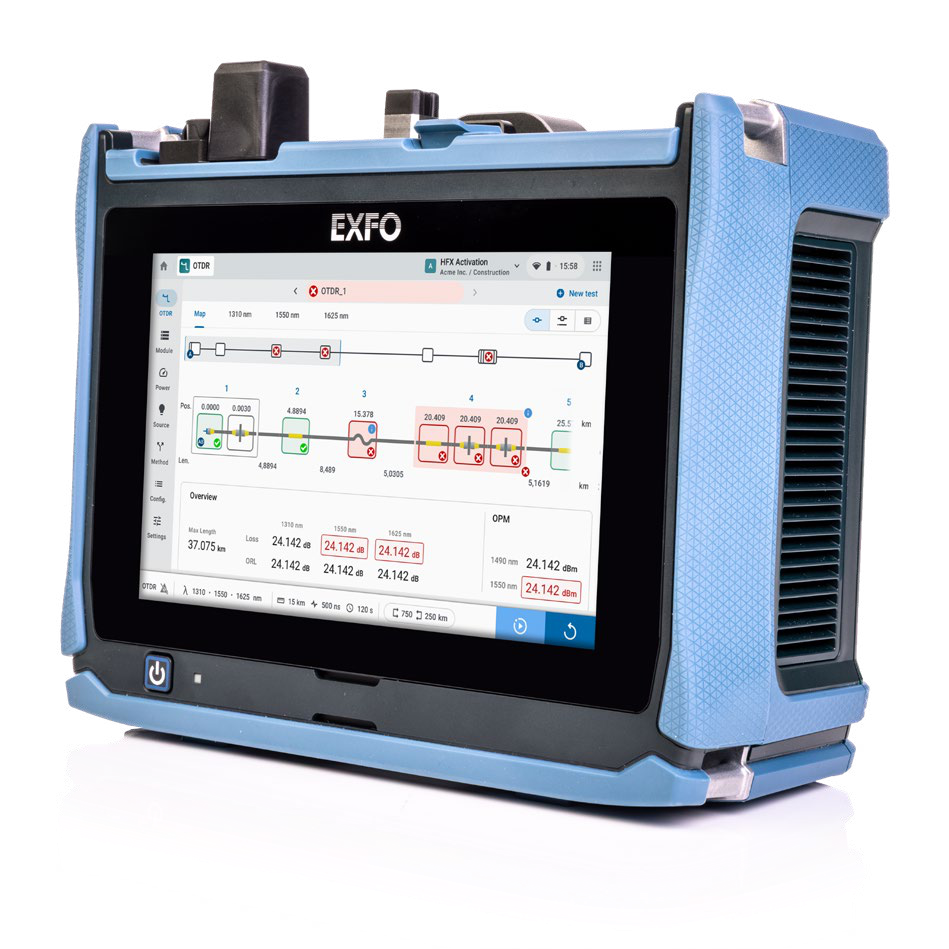

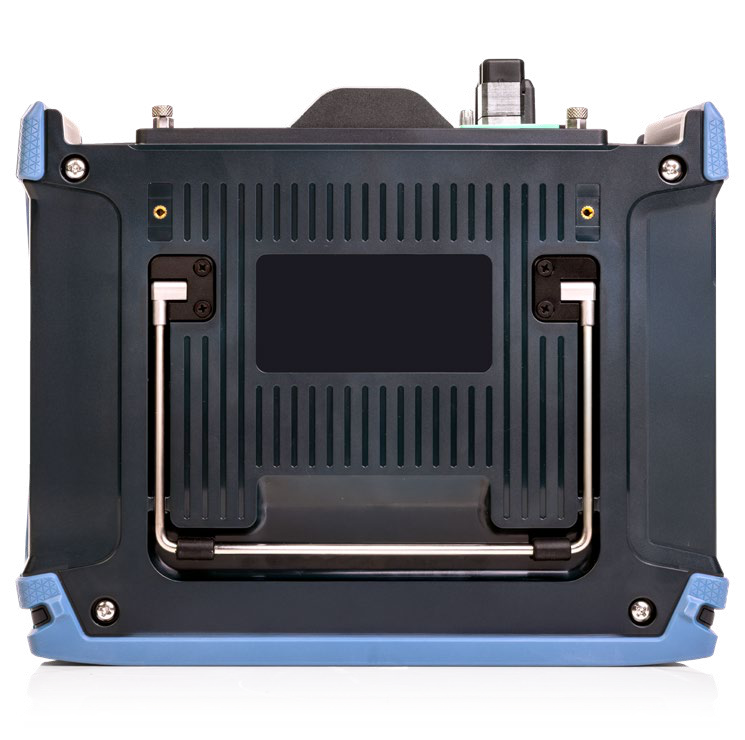

FTB Duo Connected Platform
The FTB Duo Connected Platform is a modular dual-slot, mobile-connected testing platform optimized for field installation and maintenance. It ensures compliance, efficiency, and secure testing processes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

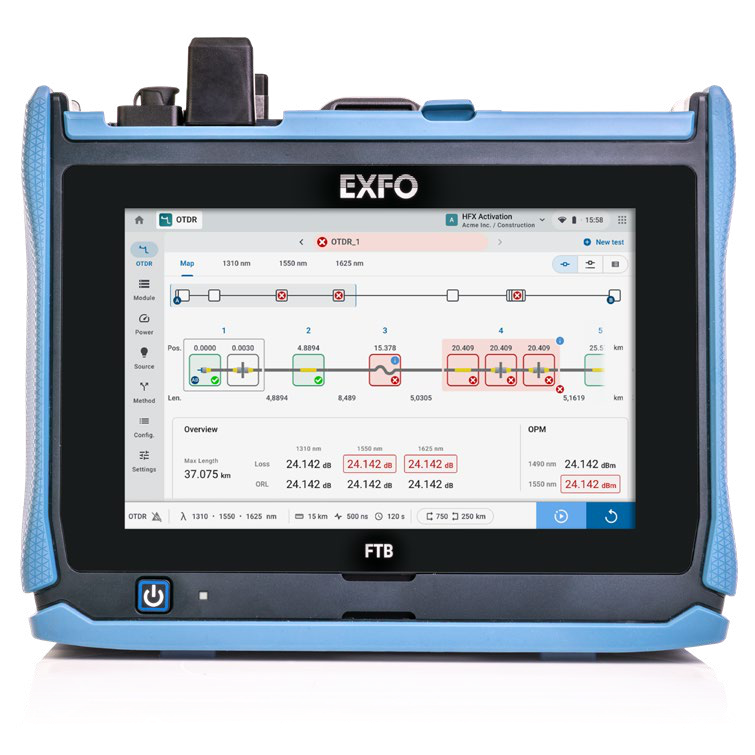

| Display | 8-inch (203mm), 1280x800, color touchscreen (viewable in sunlight) |

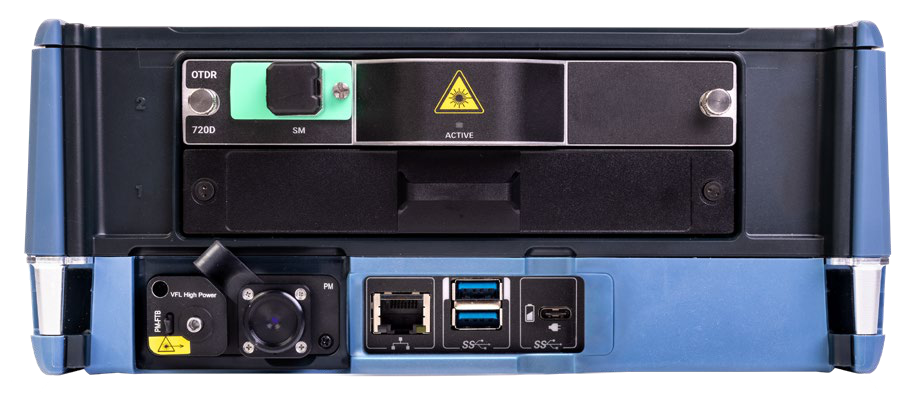

| Interfaces | USB-A ports (2), USB-C port with power delivery, RJ45 LAN 10/100/1000Mbit/s |
| RF Comms | Bluetooth, Wi-Fi, 2G/3G/4G LTE, GNSS (GPS/GALILEO/QZSS) |
| Storage | >20,000 OTDR SOR traces |
| Battery | Rechargeable Li-ion battery |
| Power Supply | AC/DC adapter: input 100 to 240V AC, 50 to 60Hz, 1.8A max; output 24V, 1.35A |
| Weight | 2.66kg (5.9lb) including internal battery; 4.11kg (9lb) with PSM2 |
| Size | 198mm x 250mm x 102mm (7.8in x 9.8in x 4.0in); 198mm x 250mm x 140mm (7.8in x 9.8in x 5.5in) with PSM2 |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |
| Built-in power meter calibrated wavelengths (nm) | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650 |
| Built-in power meter selectable wavelengths (nm) | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650 |
| Dynamic range (dBm) | 27 to -50 |
| Uncertainty | ±4% |
| Display Resolution (dB) | 0.01=max to -40dBm; 0.1=-40dBm to -50dBm |
| Tone Detection (Hz) | 270/330/1000/2000 |
| VFL operation mode | Flashing (slow/fast) and continuous |
| VFL flashing frequency (Hz) | 1 or 4 |
| VFL wavelength (nm) | 650 |
| VFL emitter type | Laser |
| VFL power output (mW) | 1 |
| VFL distance range (km) | 7 |
| High-power VFL wavelength (nm) | 660 |
| High-power VFL power output (mW) | 5 |
| High-power VFL distance range (km) | 12 |
| Laser Safety Class | Class 2 (without VFL), Class 3R (with high-power VFL) |
