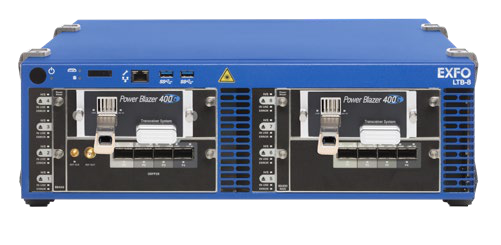

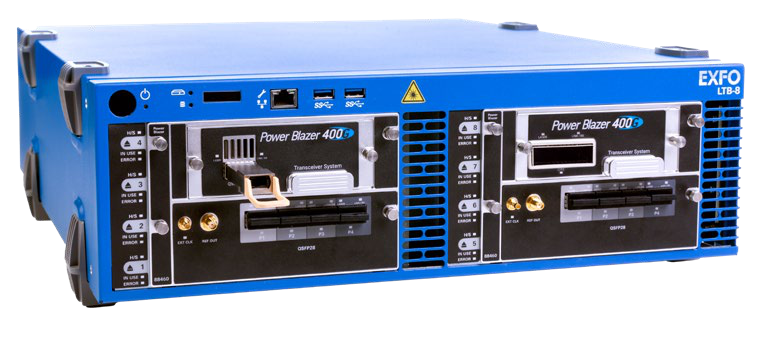

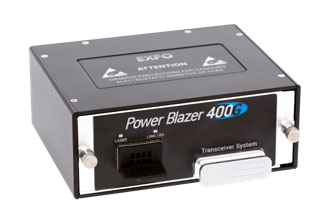

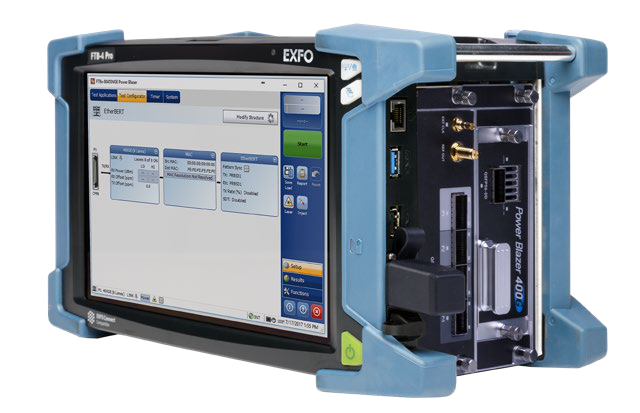

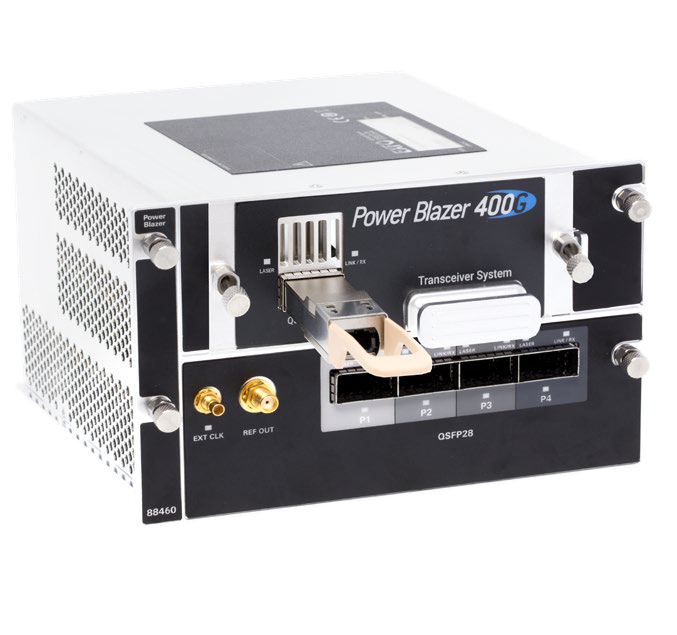

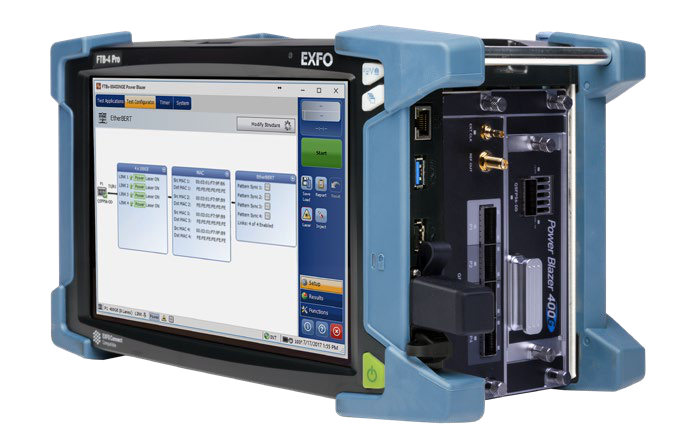

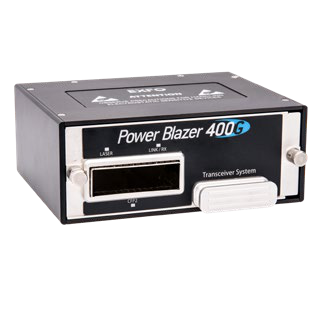

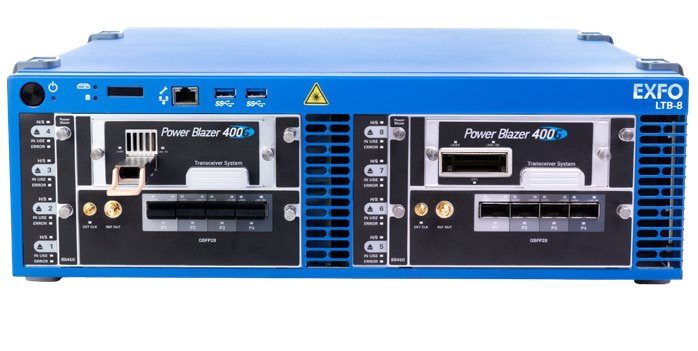

800G/400G Power Blazer

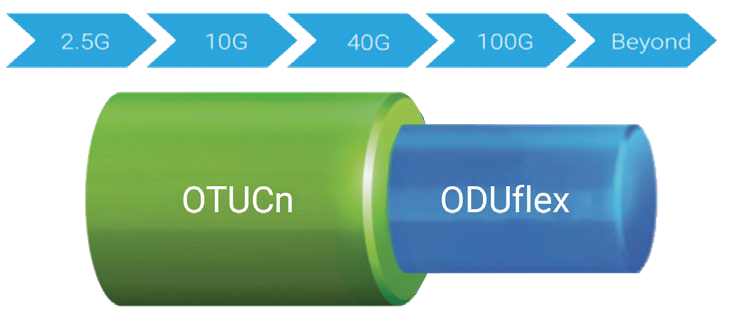

The 800G/400G Power Blazer is a versatile multiservice test module designed for lab and field applications, supporting Ethernet, OTN, FlexE, OTUCn/FlexO, and coherent optics testing from 1G to 800G.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 101mm×159mm×175mm |
| Weight | 1.70kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Tx Pulse Amplitude | 200mVpp to 1300mVpp |
| Transmission Frequency | 155MHz to 3.50GHz |
| Output Configuration | AC-coupled |
| Load Impedance | 50Ω |
| Connector Type | SMA |
| External Cable | Maximum 1 meter cable length (RG178 cable with 3.1dB/m attenuation at 3.5GHz) |
Applications
Key Features
Datasheet
