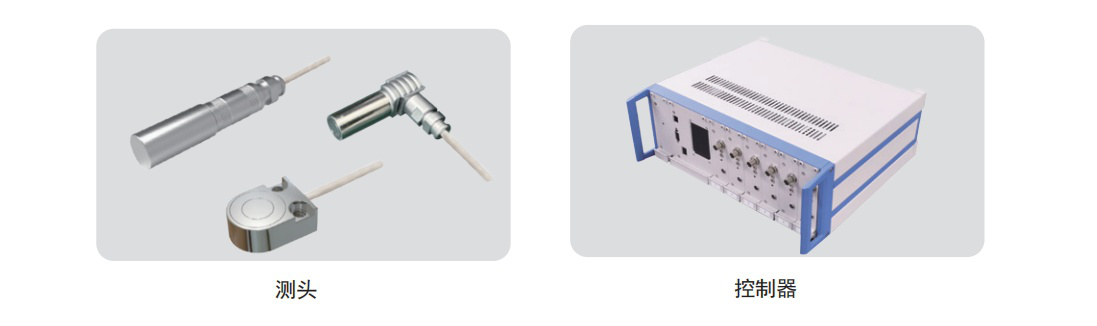

Industrial Nano Capacitive Displacement Sensor
This product is a high-precision industrial-grade nano capacitive displacement sensor designed for accurate measurement of displacement and position. It features advanced technology for reliable and precise performance in various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

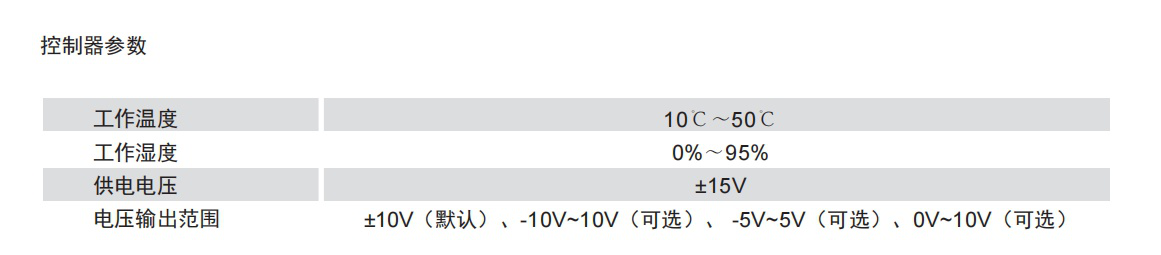

| Operating Temperature | 10°C~50°C |
| Supply Voltage | ±15V |
| Voltage Output Range | ±10V (default), -10V~10V (optional), -5V~5V (optional), 0V~10V (optional) |

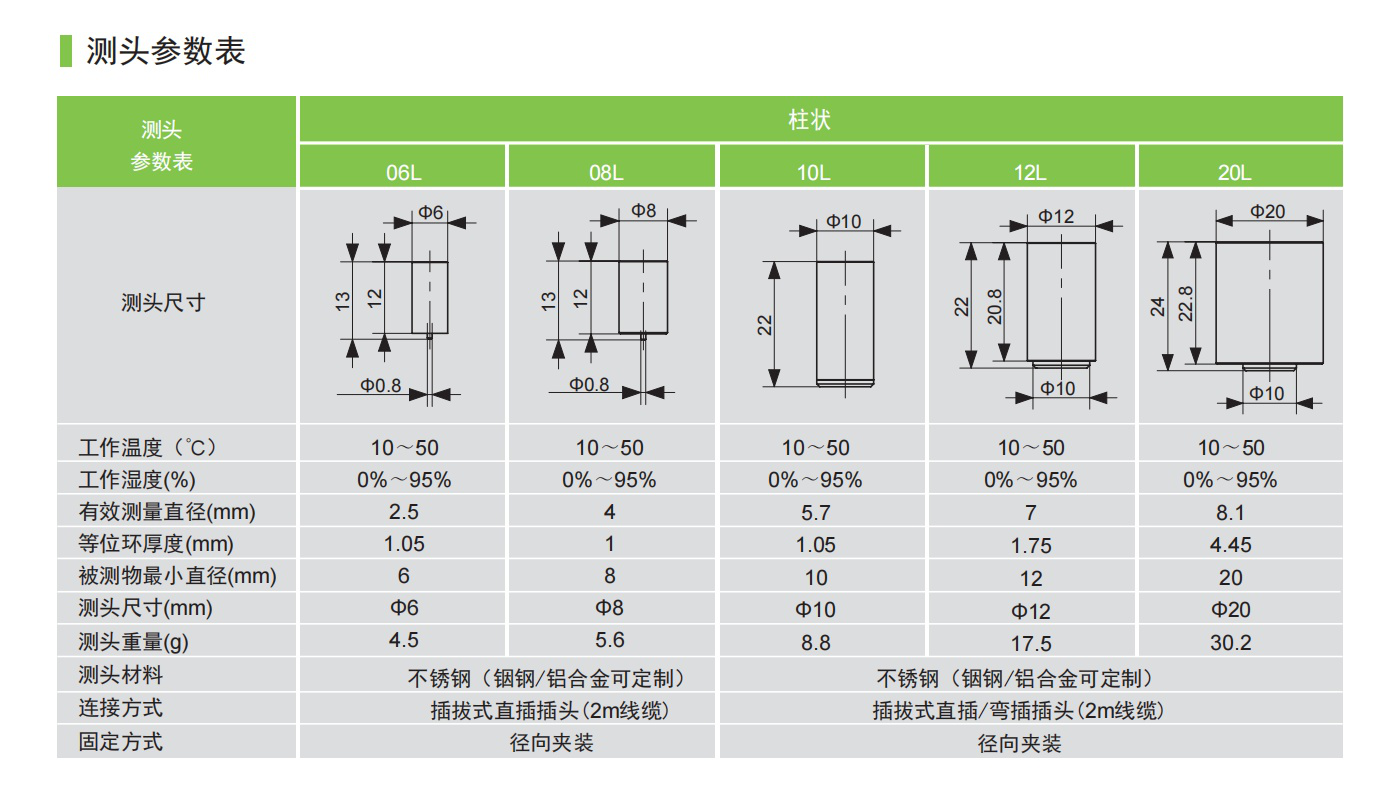

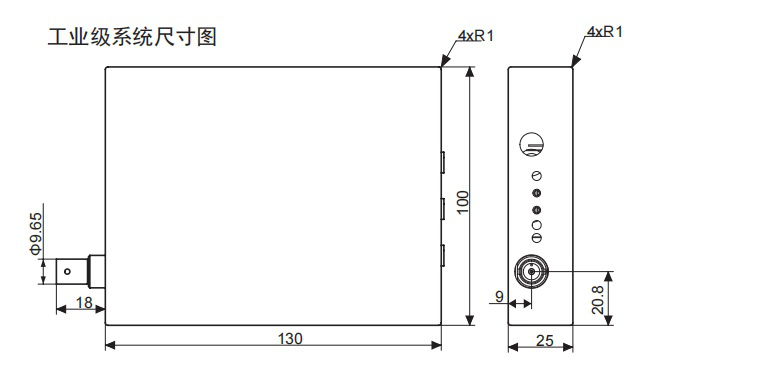

| Probe Dimensions 06L | Φ6×13 |
| Probe Dimensions 08L | Φ8×13 |
| Probe Dimensions 10L | Φ10×22 |
| Probe Dimensions 12L | Φ12×22.8 |
| Probe Dimensions 20L | Φ20×24 |

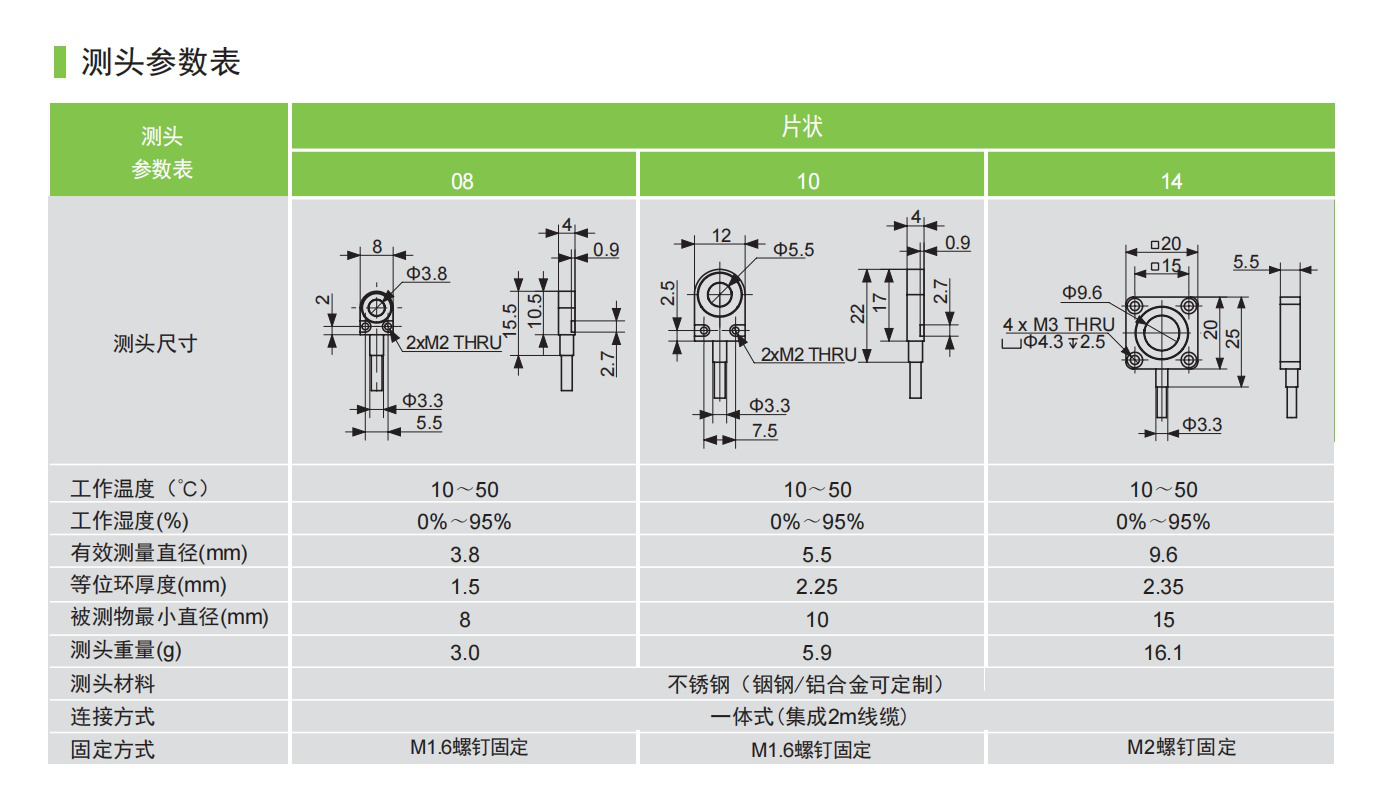

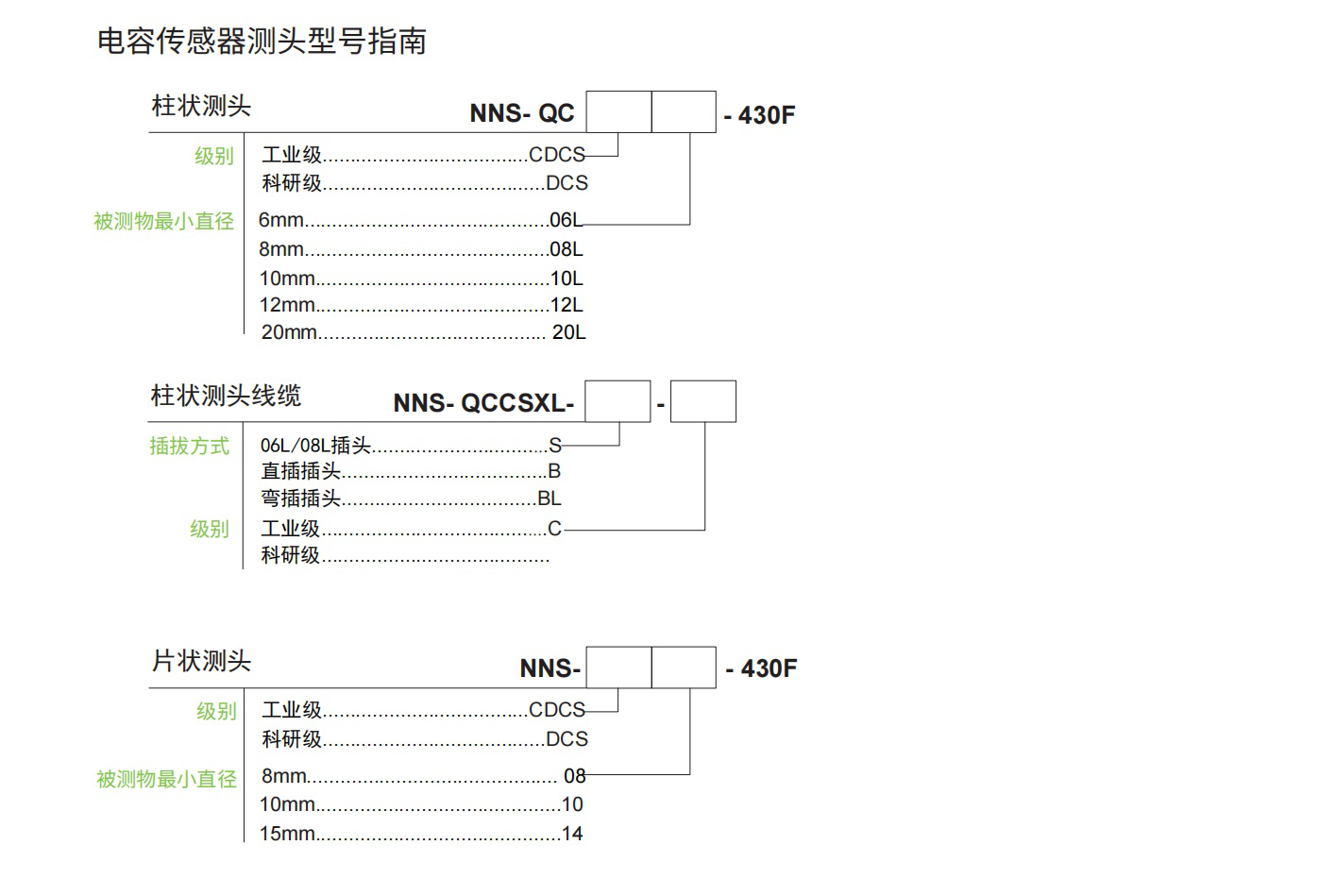

| Probe Dimensions 08 | Φ3.8×8 |
| Probe Dimensions 10 | Φ5.5×12 |
| Probe Dimensions 14 | Φ9.6×20 |
| Effective Measurement Diameter 06L | 2.5mm |
| Effective Measurement Diameter 08L | 4mm |
| Effective Measurement Diameter 10L | 5.7mm |
| Effective Measurement Diameter 12L | 7.5mm |
| Effective Measurement Diameter 20L | 17.5mm |
| Effective Measurement Diameter 08 | 3.8mm |
| Effective Measurement Diameter 10 | 5.5mm |
| Effective Measurement Diameter 14 | 9.6mm |
| Equal Potential Ring Thickness 06L | 1.05mm |
| Equal Potential Ring Thickness 08L | 1.05mm |
| Equal Potential Ring Thickness 10L | 1.75mm |
| Equal Potential Ring Thickness 12L | 1.75mm |
| Equal Potential Ring Thickness 20L | 4mm |
| Equal Potential Ring Thickness 08 | 1.5mm |
| Equal Potential Ring Thickness 10 | 2.25mm |
| Equal Potential Ring Thickness 14 | 2.25mm |
| Minimum Measured Object Diameter 06L | 6mm |
| Minimum Measured Object Diameter 08L | 8mm |
| Minimum Measured Object Diameter 10L | 10mm |
| Minimum Measured Object Diameter 12L | 12mm |
| Minimum Measured Object Diameter 20L | 20mm |
| Minimum Measured Object Diameter 08 | 1.5mm |
| Minimum Measured Object Diameter 10 | 3mm |
| Minimum Measured Object Diameter 14 | 15mm |
| Probe Weight 06L | 4.5g |
| Probe Weight 08L | 5.6g |
| Probe Weight 10L | 17.5g |
| Probe Weight 12L | 30.2g |
| Probe Weight 20L | 30.2g |
| Probe Weight 08 | 3g |
| Probe Weight 10 | 5.9g |
| Probe Weight 14 | 16.1g |
| Probe Material | Stainless steel (customizable with copper/aluminum alloy) |

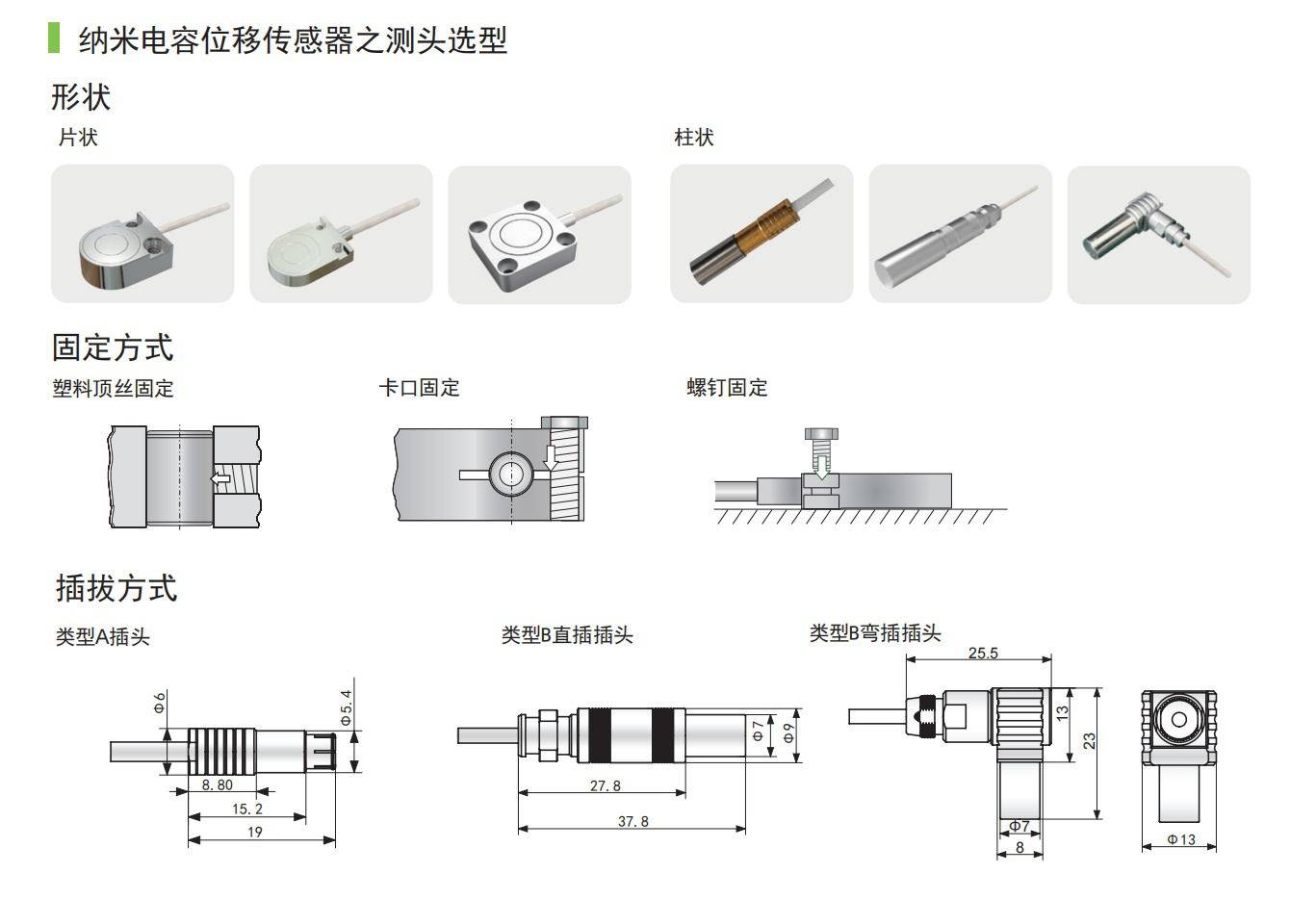

| Connection Method | Plug-in type (2m cable) |
| Fixing Method | Direct installation |

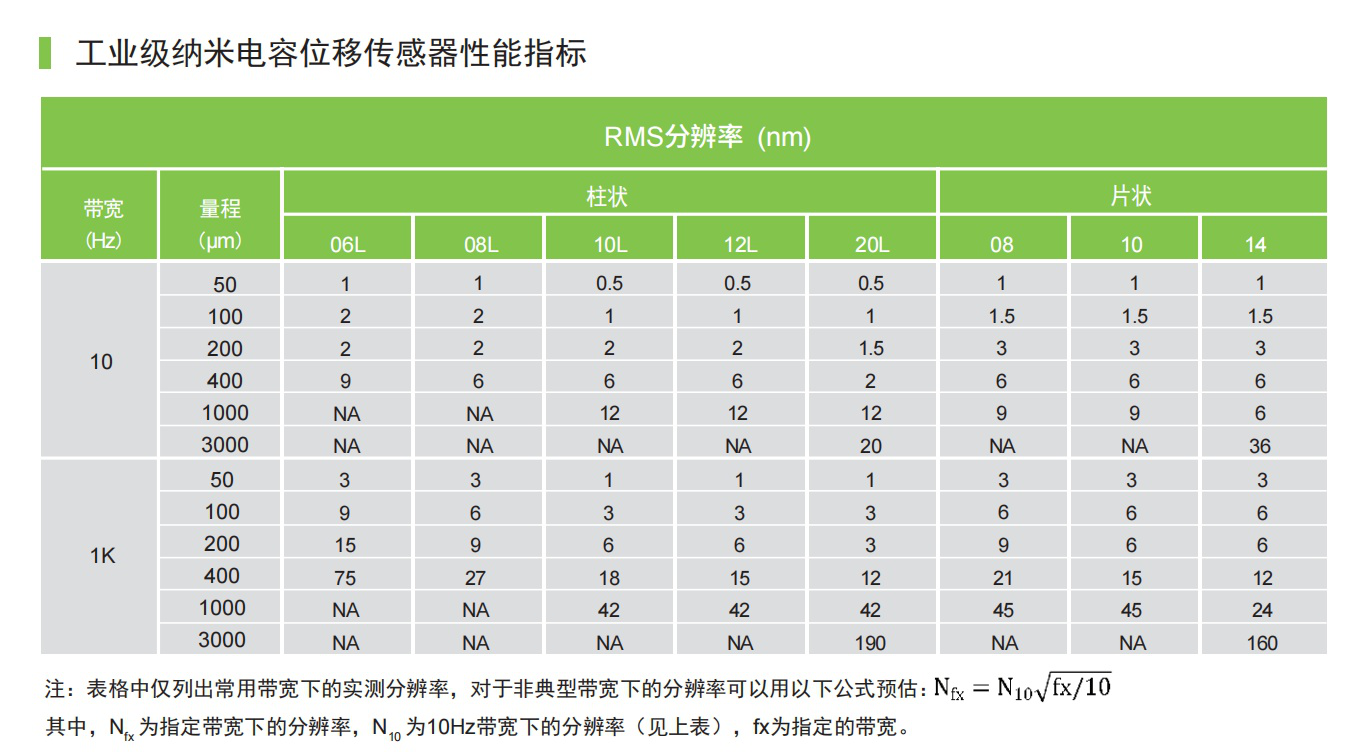

| RMS Resolution 06L | 1nm~NA |
| RMS Resolution 08L | 1nm~NA |
| RMS Resolution 10L | 0.5nm~NA |
| RMS Resolution 12L | 0.5nm~NA |
| RMS Resolution 20L | 1nm~NA |
| RMS Resolution 08 | 1nm~NA |
| RMS Resolution 10 | 1.5nm~NA |
| RMS Resolution 14 | 1.5nm~NA |

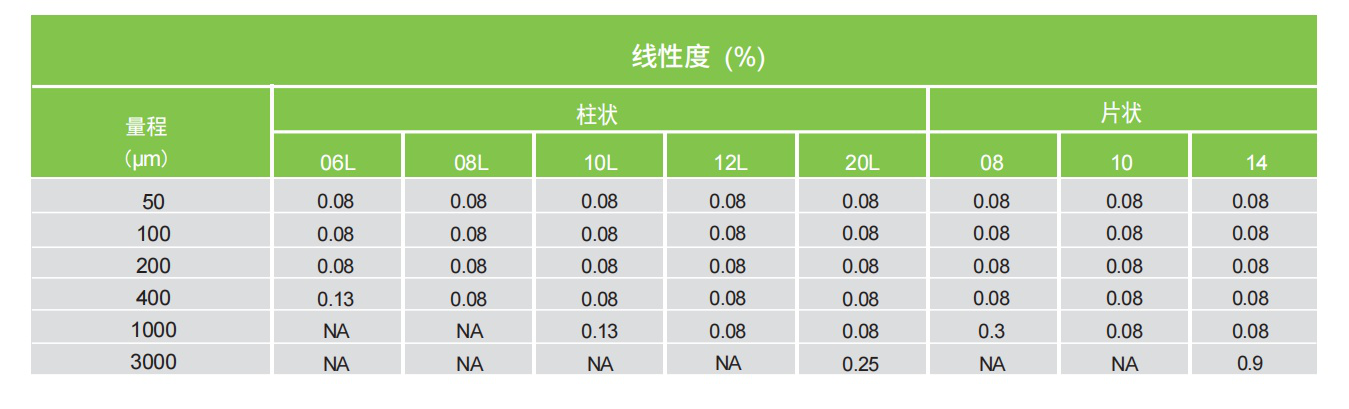

| Linearity 06L | 0.08%~NA |
| Linearity 08L | 0.08%~NA |
| Linearity 10L | 0.08%~NA |
| Linearity 12L | 0.08%~NA |
| Linearity 20L | 0.08%~0.25% |
| Linearity 08 | 0.08%~NA |
| Linearity 10 | 0.08%~NA |
| Linearity 14 | 0.08%~0.9% |
