Nanometer Capacitive Displacement Sensor System

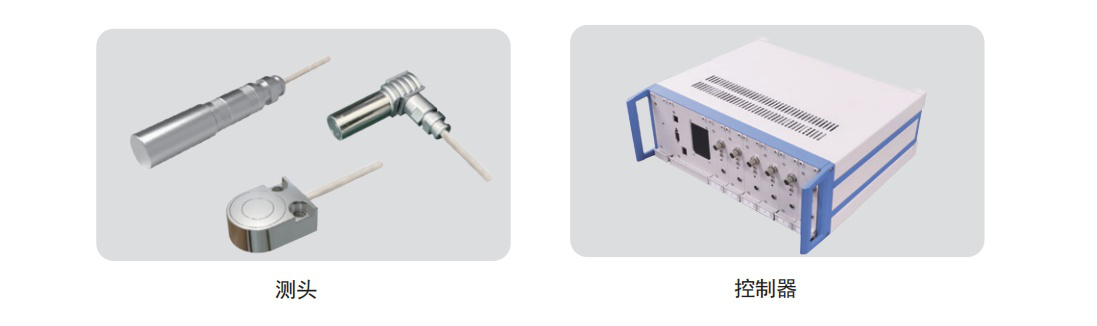

This system integrates capacitive displacement sensors and controllers, offering high precision and stability for nanometer-level displacement measurement.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

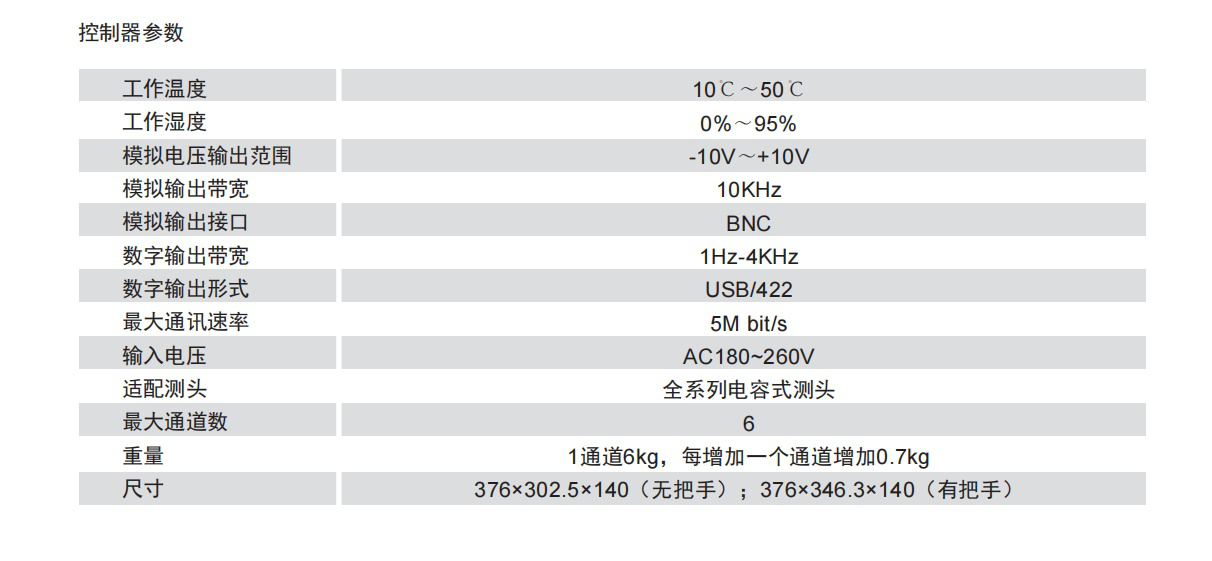

| Operating Temperature | 10°C~50°C |
| Analog Voltage Output Range | -10V~+10V |
| Analog Output Bandwidth | 10kHz |
| Analog Output Interface | BNC |
| Digital Output Bandwidth | 1Hz~4kHz |
| Digital Output Format | USB/422 |
| Maximum Communication Rate | 5Mbit/s |
| Input Voltage | AC180~260V |
| Compatible Probes | All series capacitive probes |

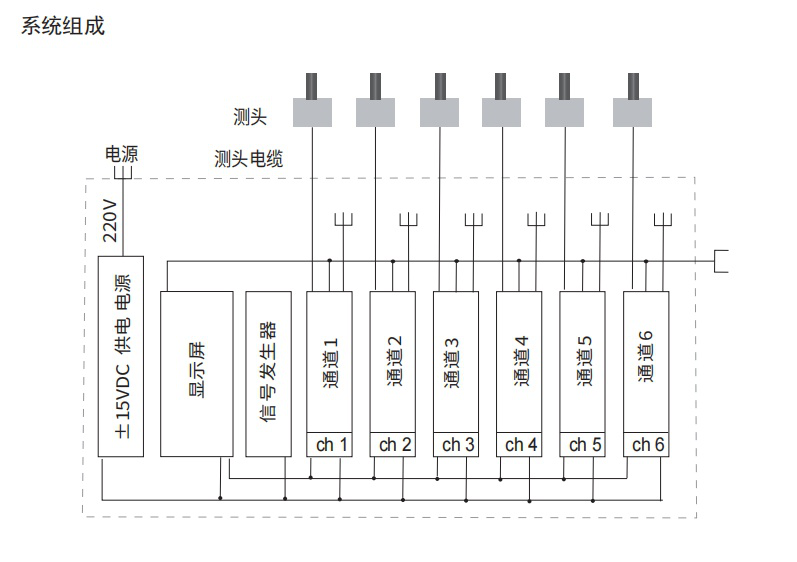

| Maximum Channels | 6 |
| Weight | 1 channel 6kg, each additional channel adds 0.7kg |

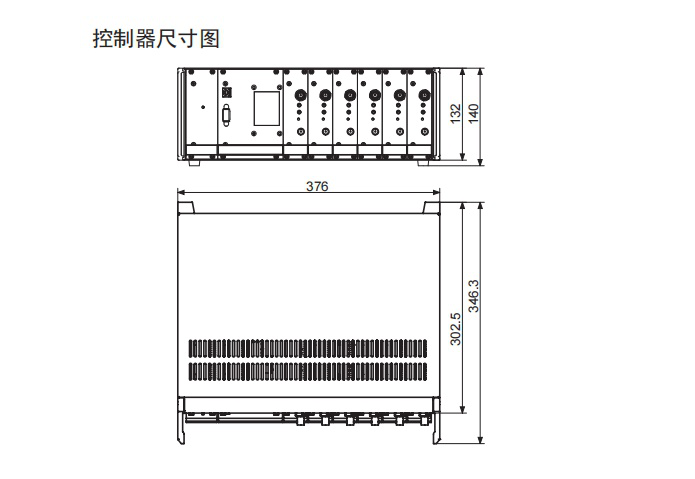

| Dimensions | 376×302.5×140 (without handles); 376×346.3×140 (with handles) |

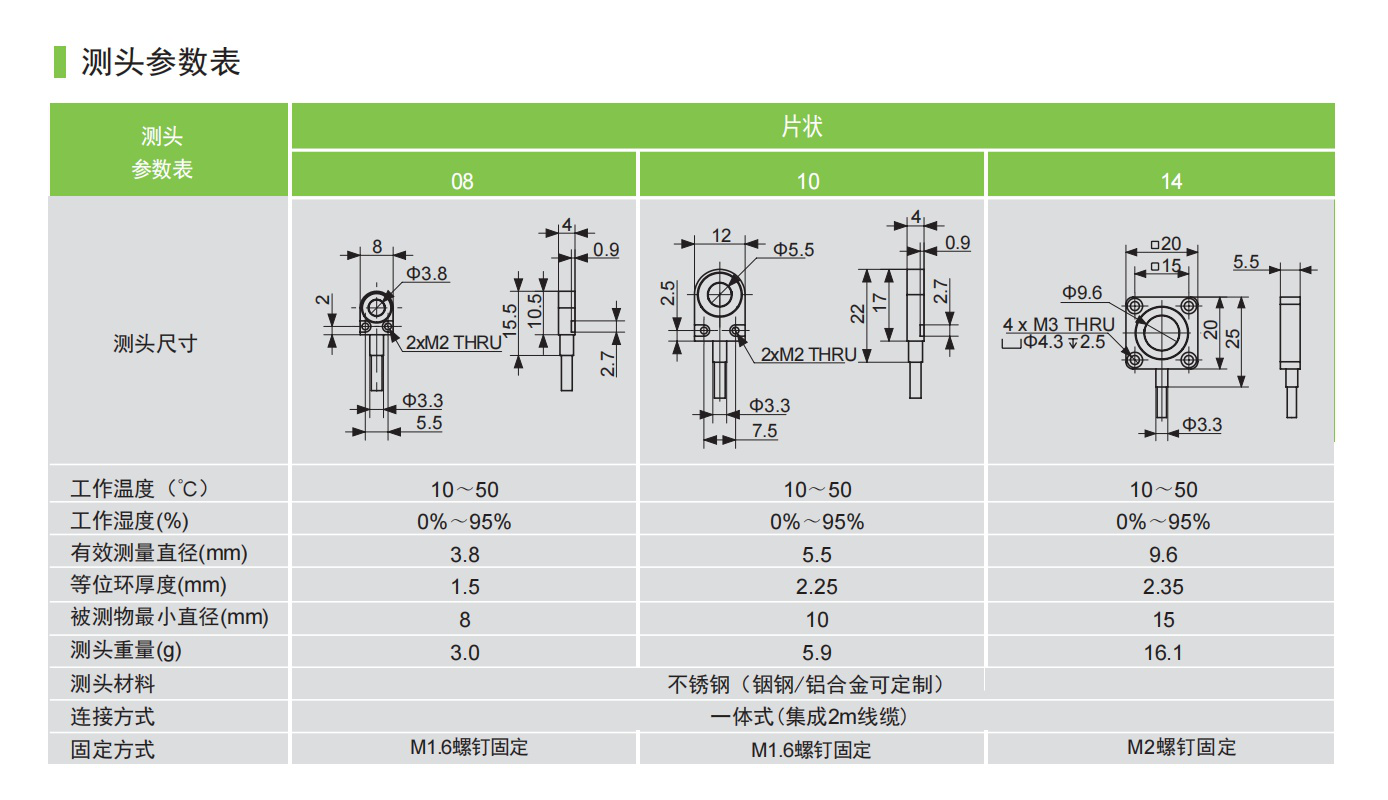

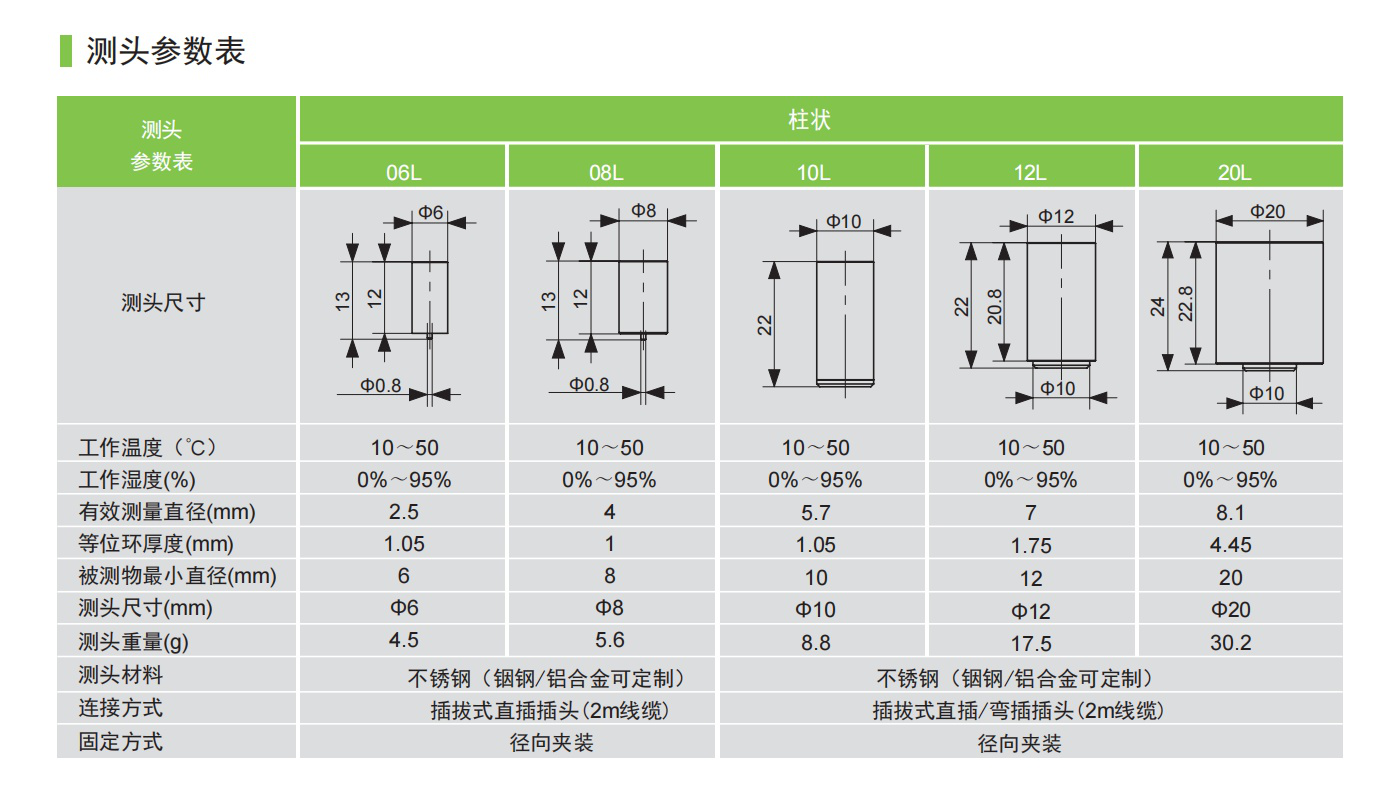

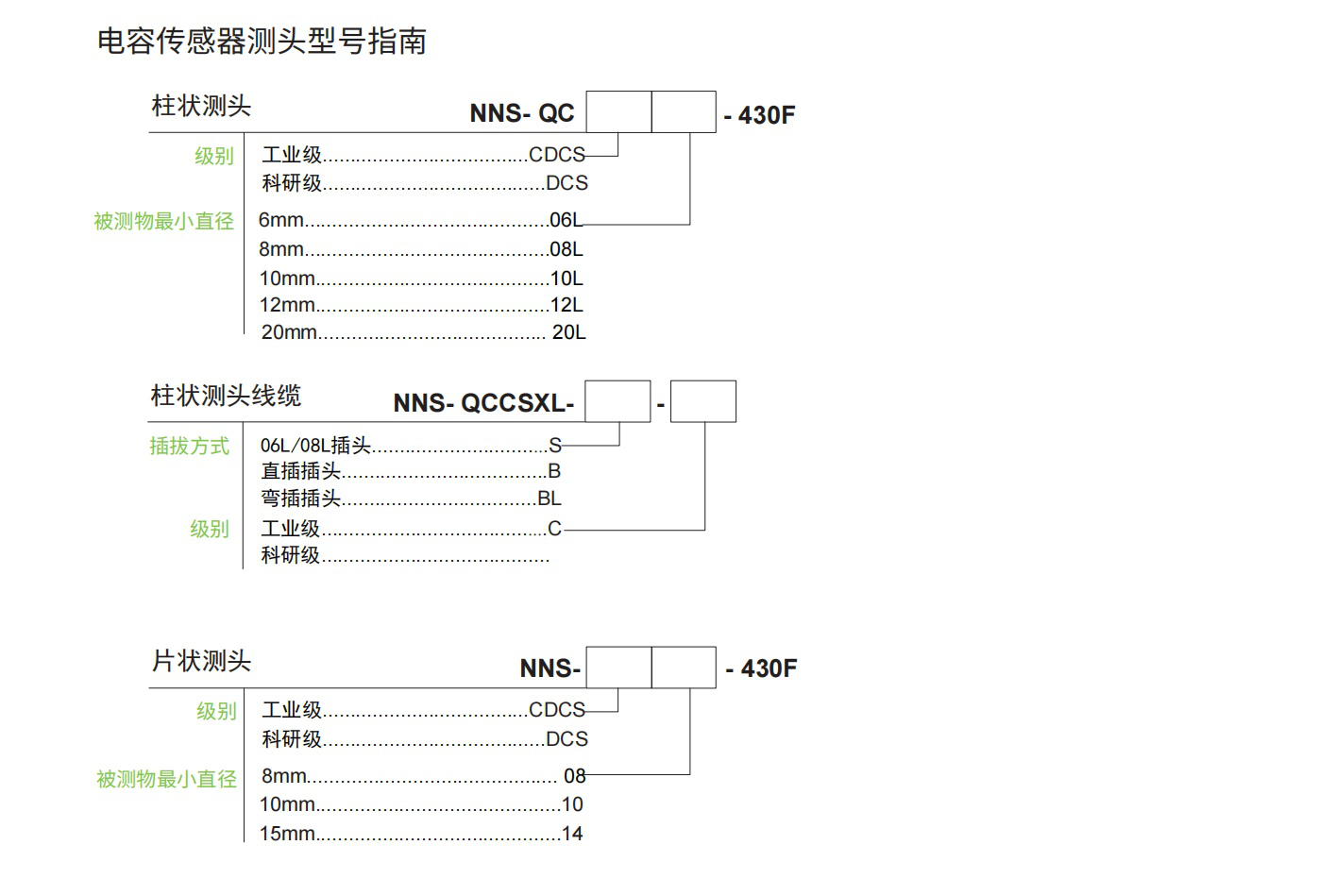

| Probe Dimensions | Varies by model (06L, 08L, 10L, 12L, 20L, 08, 10, 14) |
| Probe Operating Temperature | 10°C~50°C |
| Effective Measurement Diameter | Varies by model (2.5mm~20mm) |
| Equipotential Ring Thickness | Varies by model (1.05mm~1.75mm) |
| Minimum Measured Object Diameter | Varies by model (2mm~15mm) |
| Probe Weight | Varies by model (3g~30.2g) |
| Probe Material | Stainless steel (customizable with copper/aluminum alloy) |
| Connection Method | Integrated (2m cable) |

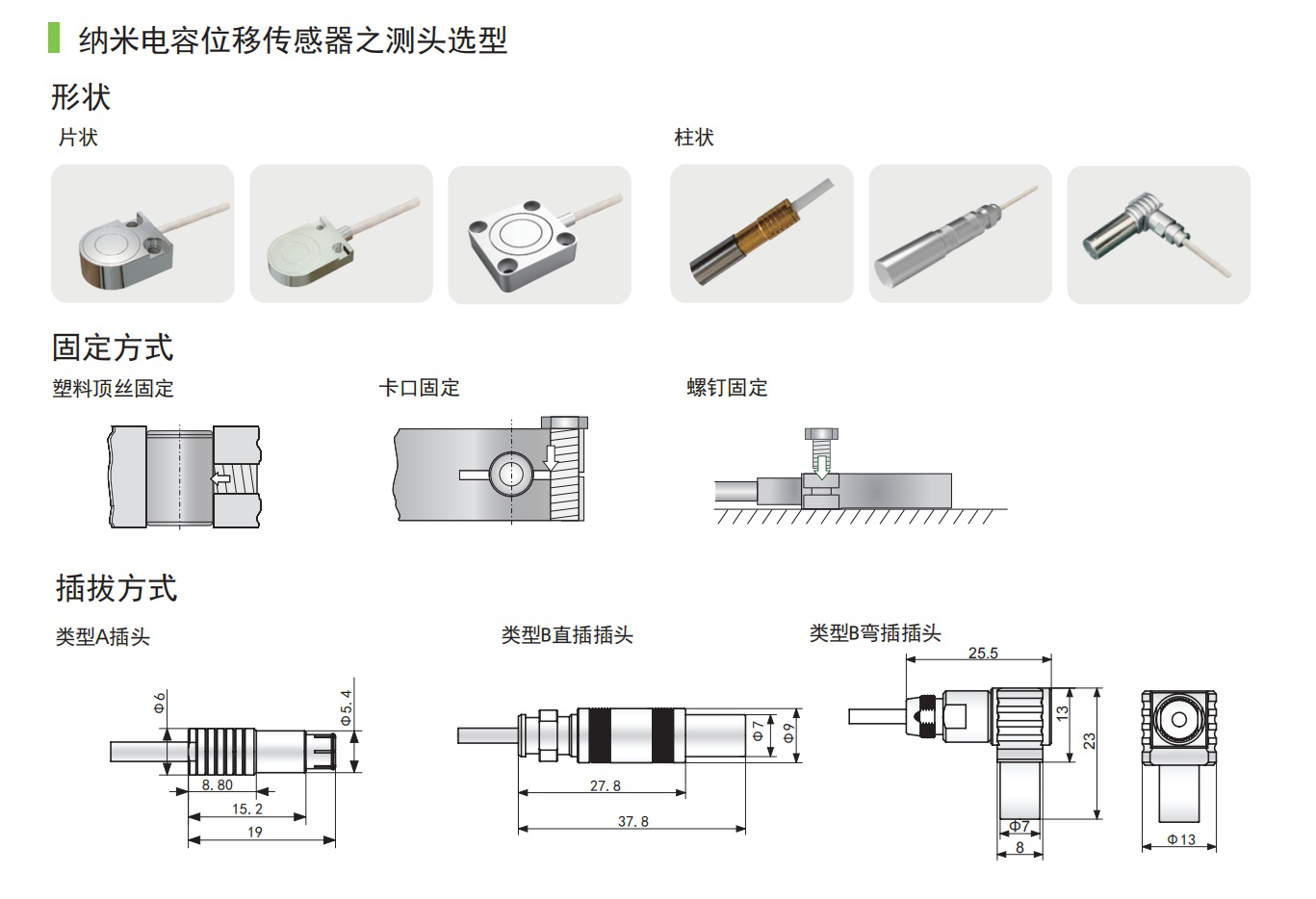

| Fixing Method | Varies by model (screw fixation, direct insertion, etc.) |

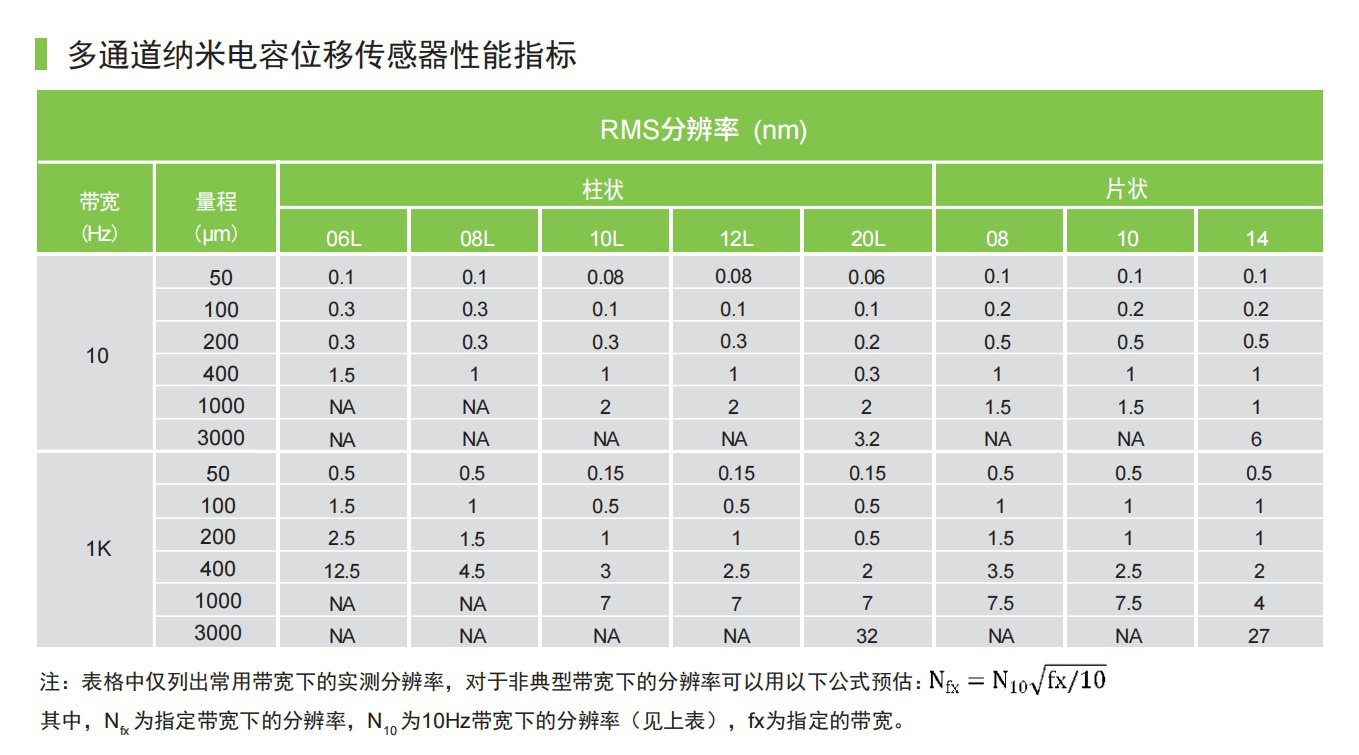

| RMS Resolution | Varies by model and bandwidth (e.g., 0.1nm~27nm) |

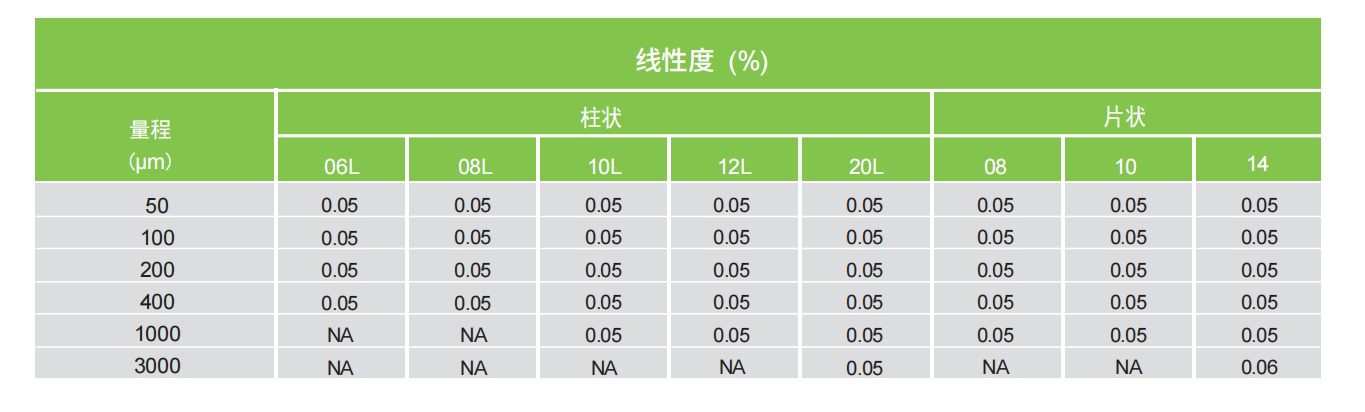

| Linearity | Varies by model and range (e.g., 0.05%) |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Unknown
Displacement Gages
Keyence
Dimensions: Unknown Material: Unknown Operating Voltage: Unknown
Unable to extract product description from the image.
-
optoNCDT
Displacement Gages
Micro-Epsilon
Measuring Range ILD1220-10: 10-500mm Measuring Range ILD1220-25: 10-500mm Measuring Range ILD1220-50: 10-500mm
optoNCDT is a high-performance laser displacement sensor series designed for precise measurement of distance, position, and vibration. It is widely used in industrial automation, quality control, and research applications.
-
capaNCDT
Displacement Gages
Micro-Epsilon
Measuring Range CS005: 0.05mm Measuring Range CS02: 0.2mm Measuring Range CS05: 0.5mm
capaNCDT is a high-precision capacitive displacement sensor system designed for industrial applications. It offers unparalleled accuracy and stability, making it suitable for various measurement tasks.
-
induSENSOR
Displacement Gages
Micro-Epsilon
Measuring Range: ±1mm to ±630mm Resolution: 13bits (0.012%FSO) at 50Hz, 12bits (0.024%FSO) at 300Hz Linearity: ≤±0.02%FSO
induSENSOR series offers high-precision inductive displacement sensors and controllers for various industrial applications, ensuring reliable measurements under harsh conditions.
-
mainSENSOR Magnetic Displacement Sensor
Displacement Gages
Micro-Epsilon
Measuring Range: 20mm-55mm Resolution: 0.05%FSO Linearity: ±3%FSO
The mainSENSOR series is an innovative measurement technology developed by Micro-Epsilon, combining the advantages of inductive sensors and magnetic sensors. It offers high sensitivity, stability, and flexibility for various industrial applications.
