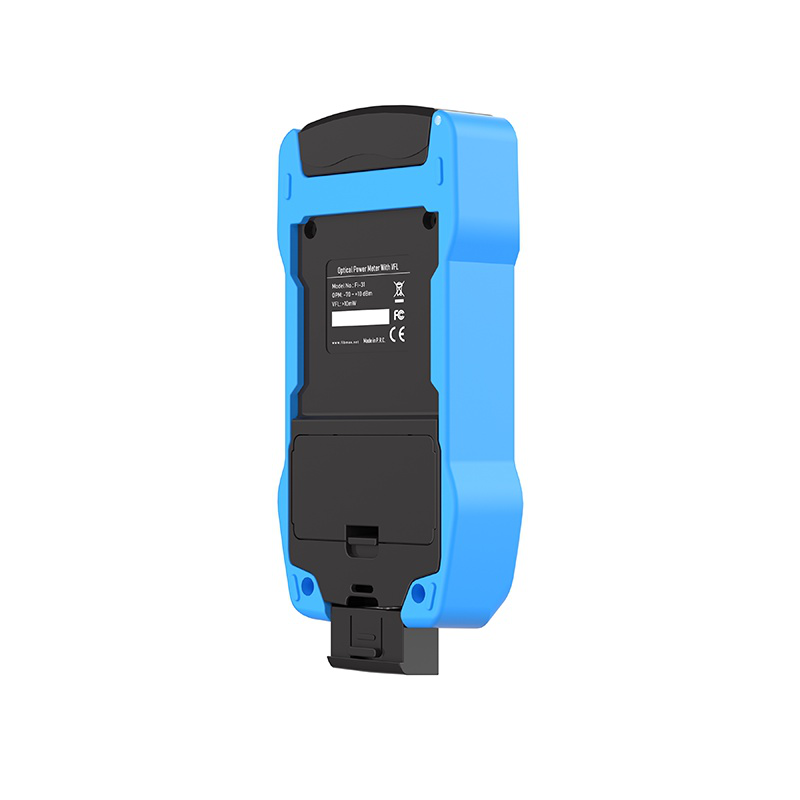

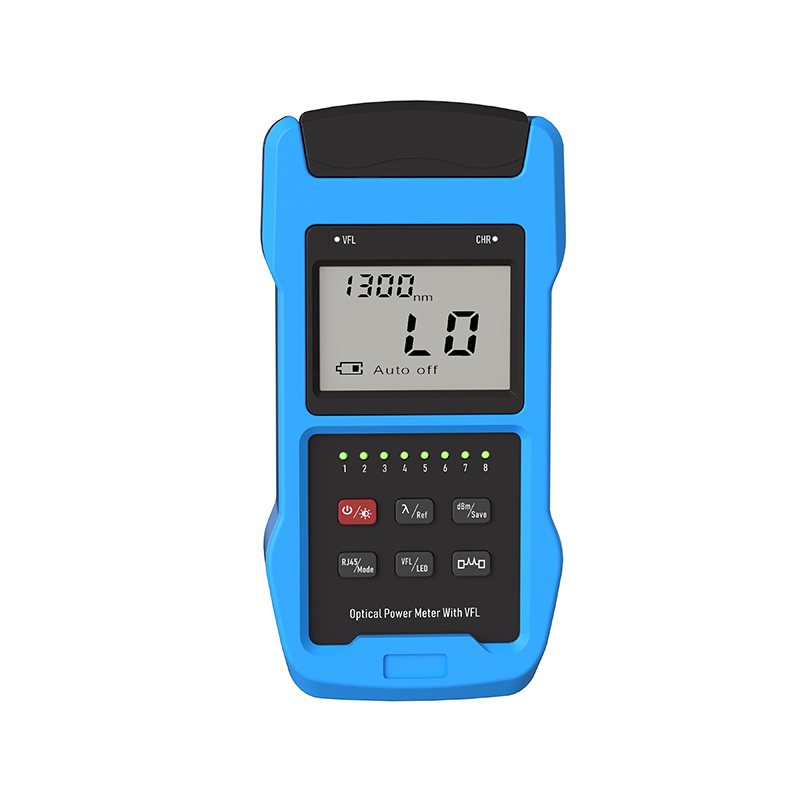

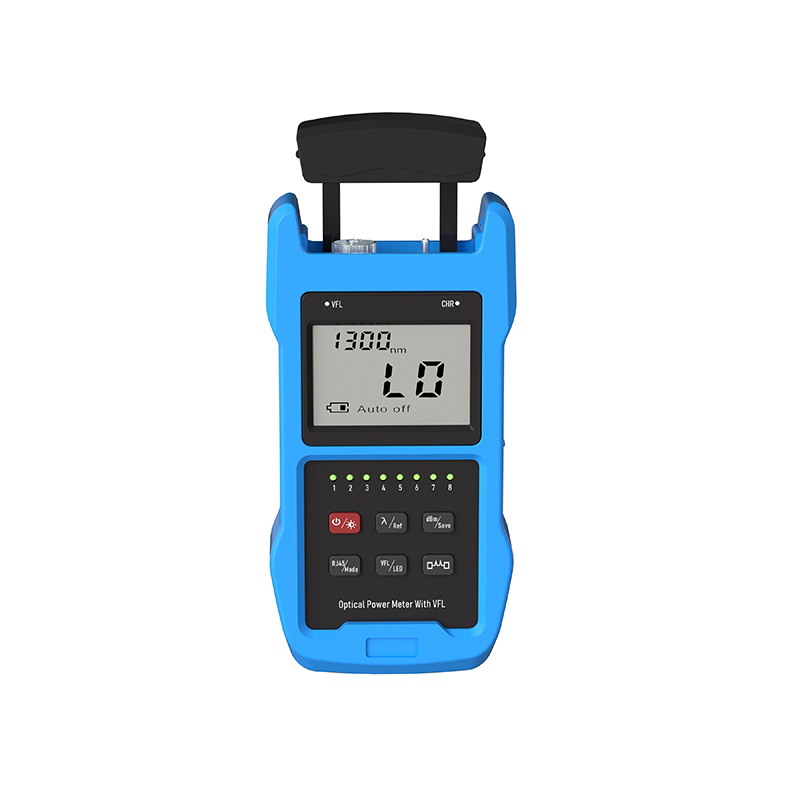

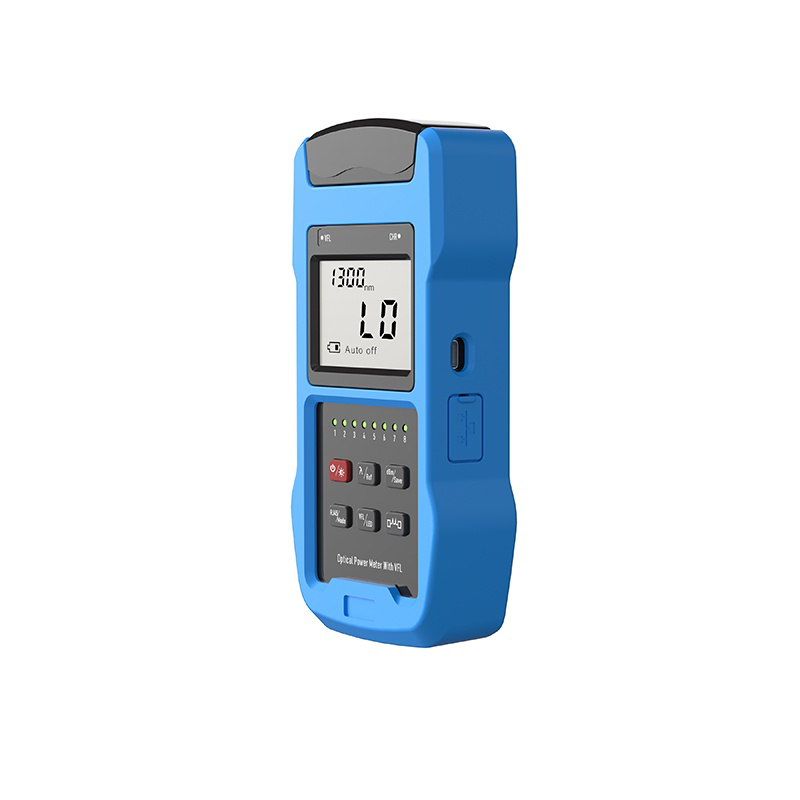

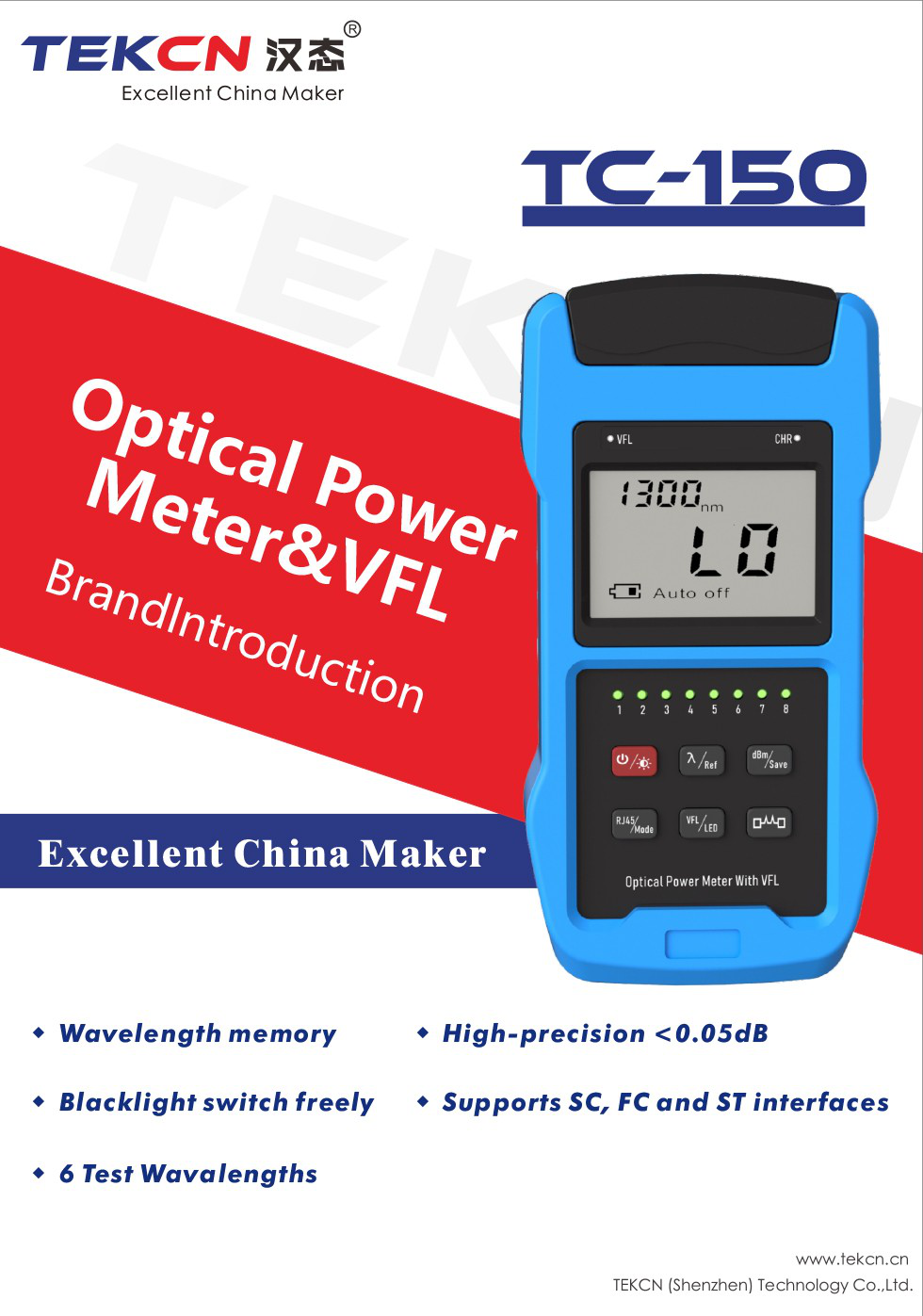

TC-150 Optical Power Meter with VFL
The TC-150 Optical Power Meter with VFL is a high-precision device designed for measuring optical power and testing fiber optic networks. It features wavelength memory, a backlight switch, and supports SC, FC, and ST interfaces.
Save to Favorites
Overview

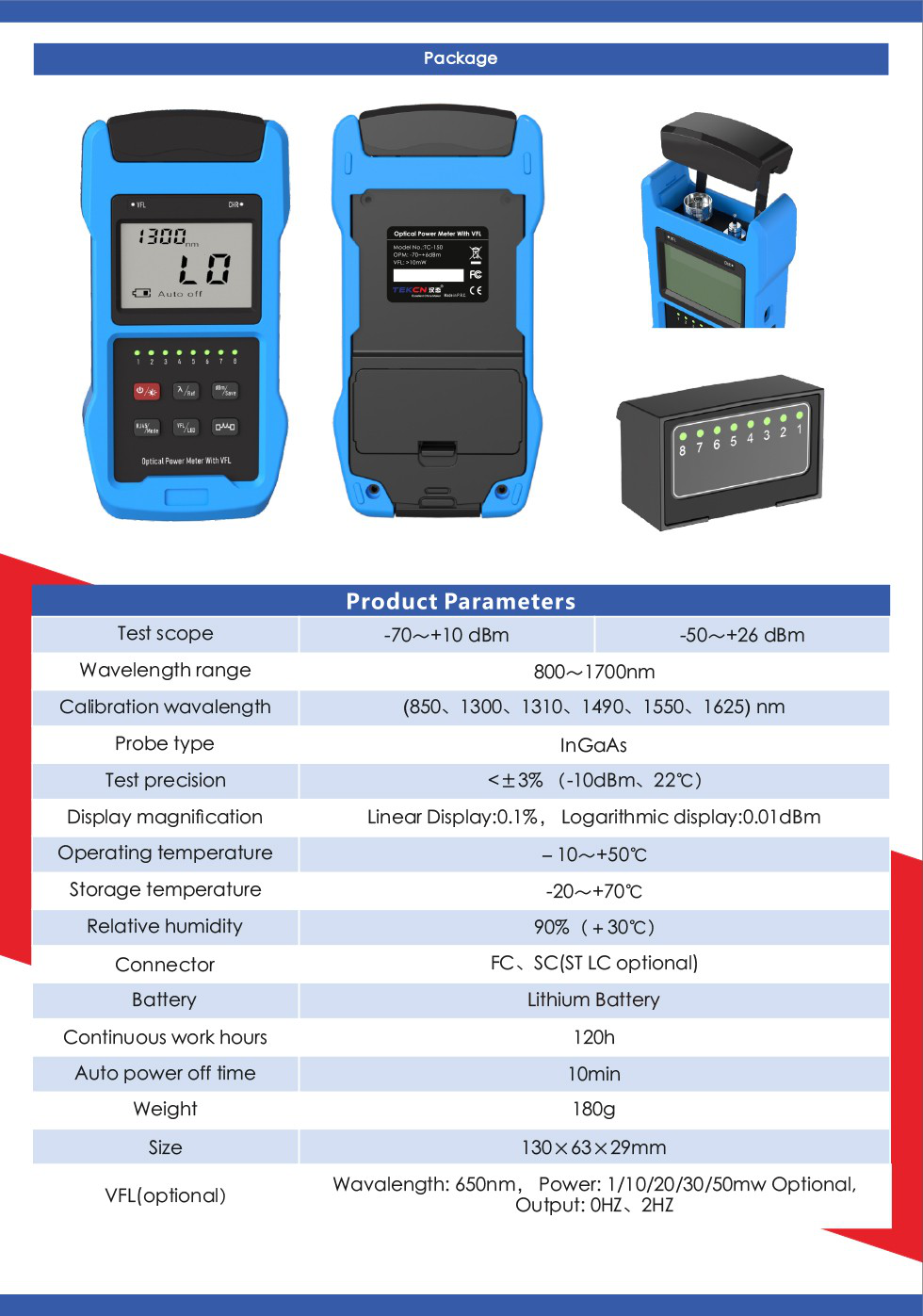

Specifications
| Parameter | Value |
|---|---|
| Test Scope | -70~+10dBm / -50~+26dBm |
| Wavelength Range | 800~1700nm |
| Calibration Wavelength | 850,1300,1310,1490,1550,1625nm |
| Probe Type | InGaAs |
| Test Precision | <±3% (-10dBm, 22°C) |
| Display Magnification | Linear Display:0.1%, Logarithmic Display:0.01dBm |
| Operating Temperature | -10~+50°C |
| Storage Temperature | -20~+70°C |
| Relative Humidity | 90% (+30°C) |
| Connector | FC, SC(ST LC optional) |
| Battery | Lithium Battery |
| Continuous Work Hours | 120h |
| Auto Power Off Time | 10min |
| Weight | 180g |
| Size | 130×63×29mm |
| VFL(Optional) | Wavelength: 650nm, Power: 1/10/20/30/50mw Optional, Output: 0Hz, 2Hz |
