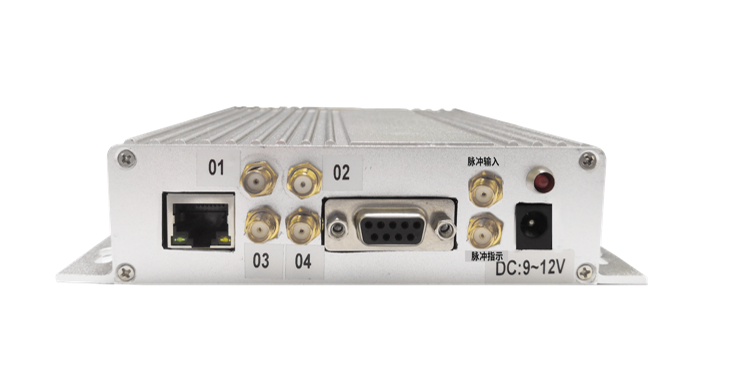

JW1609C High-Speed Optical Power Meter Module
JW1609C is a high-speed optical power meter module designed by Shanghai Jiahui specifically for automated equipment integration. Through high-speed sampling of optical power (10Ksps) and real-time high-speed processing, it meets the needs of precise measurement and monitoring of dynamic optical power, and can be flexibly integrated into optical device R&D testing and manufacturing processes, providing an efficient and reliable power measurement unit for automated testing and production systems.
Save to Favorites

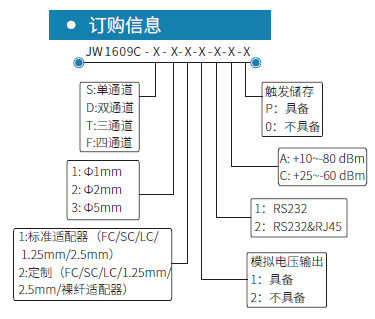

Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Type | InGaAs |
| Detector Size | Φ2.0mm |
| Wavelength Range | 850~1700 nm |
| Calibration Wavelength [Customizable] | 850/1300/1310/1490/1550/1625 nm (customizable) |
| Test Range | +10~-80 dBm |
| Linearity [+10~-50dBm] | ±0.04 dB(+10~-50 dBm) |
| Linearity [-50~-70dBm] | ±0.08 dB(-50~-70 dBm) |
| Uncertainty [A:+10~-60dBm；C: +25~-45dBm] | ±0.13 dB (A:+10~-60 dBm)(C: +25~-45 dBm) |
| Sampling Rate | 10 Ksps |
| Maximum number of channels | 4 |
| Analog Voltage | 0~2.5 V |
| Power Supply [DC] | DC 9~12 V |
| Communication Interface | RS232&RJ45 |
| Operating Temperature | -5~40 ℃ |
| Storage Temperature | -25~70 ℃ |
| External Dimensions | 160 mm × 147 mm × 36 mm |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
