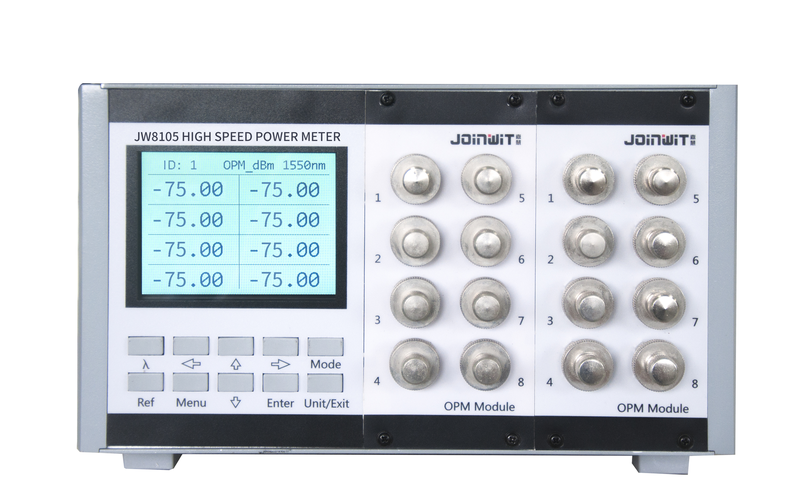

JW8105 Optical Power Meter

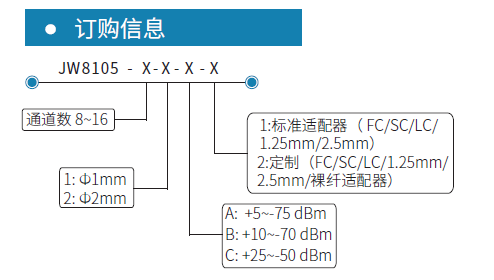

The JW8105 is a flexible and reliable high-performance optical power meter with excellent dynamic range and measurement linearity. It can be flexibly configured with 8~16 channels according to the usage scenario and directly integrated into automated testing and production systems, providing high-precision, multi-channel power measurement for the R&D and mass production of optical devices and modules.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Type | InGaAs |
| Detector Size | Φ2.0mm |
| Wavelength Range | 850~1700 nm |
| Calibration Wavelength [Customizable] | 850/1300/1310/1490/1550/1625 nm (customizable) |
| Test Range [A；C] | A:+5~-75 dBm C:+25~-50 dBm |
| Linearity [+5~-50dBm；-50~-60dBm；A] | A:±0.04 dB(+5~-50 dBm),±0.08 dB(-50~-60 dBm) |
| Linearity [+25~-25dBm；-25~-45dBm；C] | C:±0.04 dB(+25~-25 dBm),±0.08 dB(-25~-45 dBm) |
| Uncertainty [A:+10~-60dBm；C: +25~-45dBm] | ±0.13 dB (A:+10~-60 dBm)(C: +25~-45 dBm) |
| Sampling Rate | 10 Ksps |
| Display Resolution | 0.01/0.001 |
| Operating Power Supply [AC] | 220 V AC |

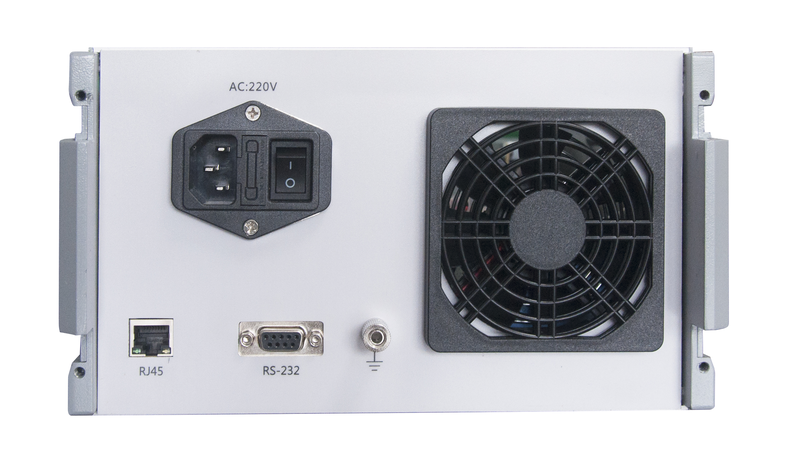

| Communication Interface | RS232/RJ45 optional |
| Operating Temperature | -5~40 ℃ |
| Storage Temperature | -25~70 ℃ |
| Weight | <5 kg |
| External Dimensions | 3U*235*380 mm |
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
