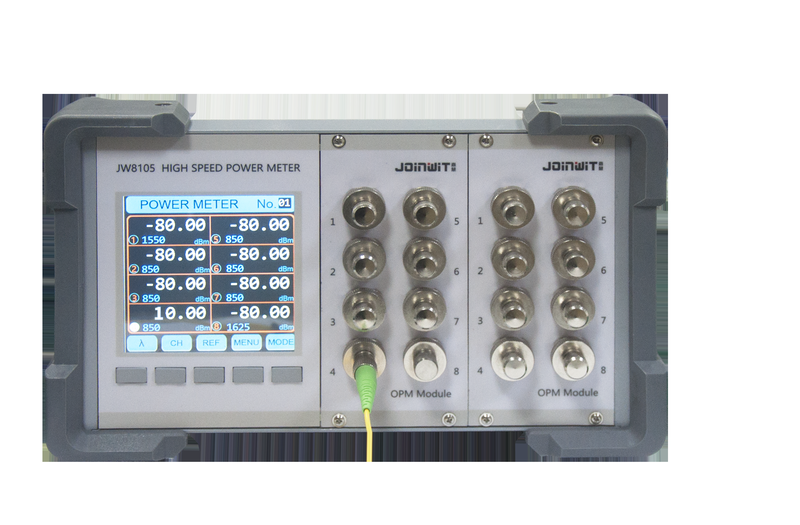

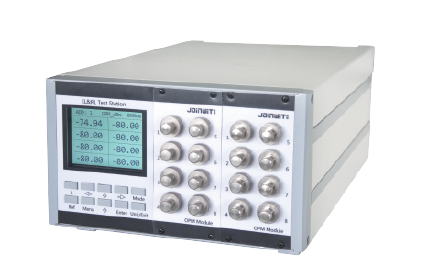

JW8105A/S Multi-channel Optical Power Meter
The JW8105A/S is a high-precision optical power test platform integrating high-speed sampling, multi-wavelength programmability, and polarization analysis. The device adopts 100μs high-speed sampling technology, supports an adjustable sampling rate up to 10Ksps and large dynamic range measurement, features PDL (polarization dependent loss) testing, trigger storage, and analog voltage output functions, and offers optional Ethernet communication and color-screen interactive interface, meeting the multi-scenario testing needs of precision optical components such as DWDM, AWG, and PLC.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Type | InGaAs |
| Detector Size | Φ2.0mm |
| Wavelength Range | 850~1700 nm |
| Calibration Wavelength [Customizable] | 850/1300/1310/1490/1550/1625 nm (customizable) |
| Test Range [A；C] | A:+10~-80 dBm C:+25~-60 dBm |
| Linearity [+10~-50dBm；-50~-70dBm；A] | A:±0.04 dB(+10~-50 dBm),±0.08 dB(-50~-70 dBm) |
| Linearity [-25~-35dBm；-35~-55dBm；C] | C:±0.04 dB(-25~-35 dBm),±0.08 dB(-35~-55 dBm) |
| Uncertainty [A:+10~-60dBm；C: +25~-45dBm] | ±0.13 dB (A:+10~-60 dBm)(C: +25~-45 dBm) |
| Sampling Rate | 10 Ksps |
| Display Resolution | 0.01/0.001 |
| Communication Interface | RS232&RJ45 |
| Operating Power Supply [AC] | 220 V AC |
| Operating Temperature | -5~40 ℃ |
| Storage Temperature | -25~70 ℃ |
| Weight | <5 kg |
| External Dimensions | 3U*235*380 mm |
