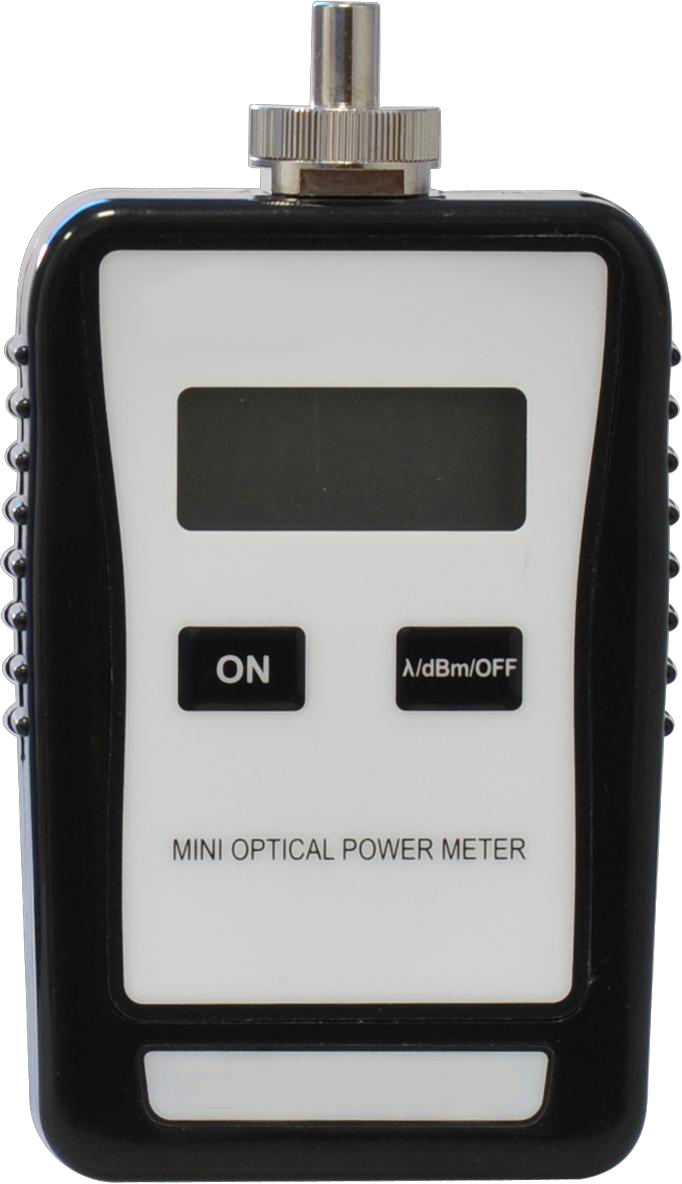

MY3233 Handheld Plastic Optical Power Meter
The MY3233 handheld plastic optical power meter is suitable for measuring optical power in the wavelength range of 600–1000nm. It displays results in units of W and dBm, with calibration wavelengths of 635nm, 650nm, 780nm, 850nm, and 980nm. It is designed for short-wavelength optical power measurement, featuring portability, lightweight design, and an LCD display for convenient operation. This device is essential for laser projection systems, optical communication, and maintenance applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 600–1000 |
| Detector Type | Replaceable head with Si photodetector (approx. 4×4mm) |
| Power Measurement Range (dBm) | -60~+6 |
| Uncertainty | ±5 |
| Calibration Wavelengths (nm) | 635, 650, 780, 850, 980 |
| Linearity | 0.1%; display resolution: 0.01dBm |
| Auto Shutdown Time (min) | 10 |
| Battery Operating Time (h) | 60 |
| Power Supply | 3 AAA 1.5V batteries |
| Weight (g) | 200 |
| Dimensions (mm) | 150×74×26 |
Applications
Key Features
Datasheet
Supplier Information
